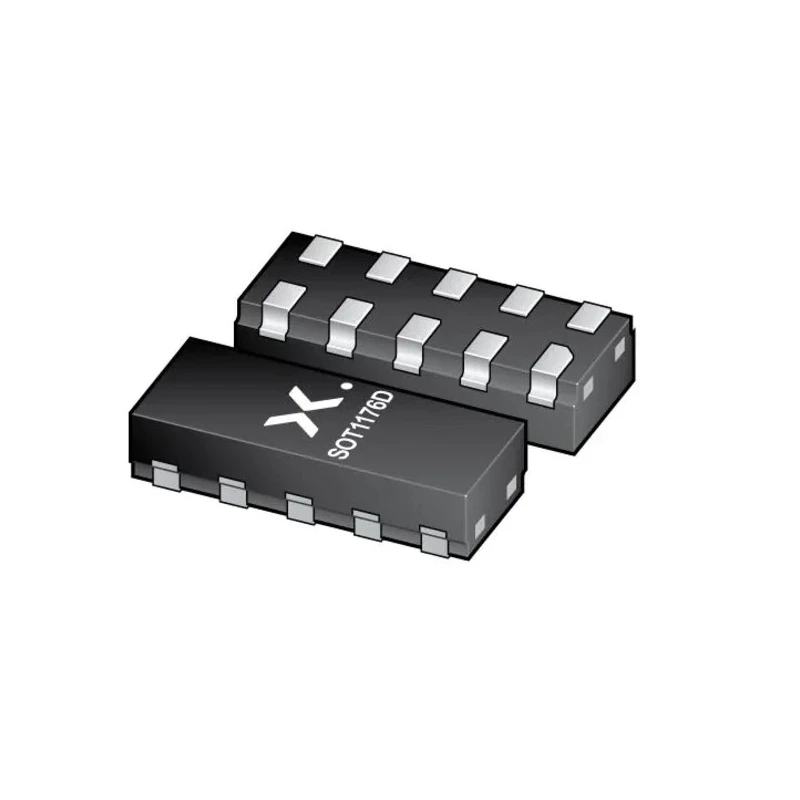

Nexperia Uni-Directional ESD Protection Diode DFN2510D 6V Breakdown Voltage 7A Peak Pulse Current PESD4USB3U-TBS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.5mm |
| Model | PESD4USB3U-TBS |
| Width | 0.78mm |
| Mount Type | Surface |
| Series | PESD4USB3U-TBS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -65°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC 61000-4-2 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
| Infotainment applications | USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT |
Key Features
- Designed for high-speed interfaces like USB 3.2 at 10 Gbps, HDMI, and DisplayPort.
- Compact DFN2510D surface mount package measuring 2.5mm x 0.78mm x 1mm.
- Meets IEC 61000-4-2 ESD protection and AEC-Q101 automotive standards.
- Low line capacitance of 0.5 pF per channel ensures signal integrity.
- Wide operating temperature range from -65°C to 150°C.
- Maximum peak pulse current of 7A for robust surge protection.
- Maximum reverse stand-off voltage of 3.3V and clamping voltage of 3.5V.
- Extremely low reverse leakage current of 100nA improves efficiency.
Product Description
The Nexperia PESD4USB3U-TBS uni-directional ESD protection diode is engineered to protect sensitive electronic interfaces such as SuperSpeed USB 3.2 operating at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, and Low Voltage Differential Signalling (LVDS) against electrostatic discharge events.
This diode package comes in a compact DFN2510D surface mount form factor measuring 2.5 mm in length, 0.78 mm in width, and 1 mm in height, making it suitable for dense PCB layouts. It offers a minimum breakdown voltage of 6 V and a maximum peak pulse current of 7 A ensuring robust surge and ESD protection.
Designed to meet industrial and automotive standards, the device complies with IEC 61000-4-2 ESD protection requirements and AEC-Q101 automotive standards, ensuring high reliability in demanding environments. It operates continuously over a wide temperature range from -65°C to 150°C.
Its advantages include very low line capacitance of 0.5 pF per channel which supports high-speed digital data transmission without signal degradation. The maximum reverse stand-off voltage is rated at 3.3 V with a clamping voltage of 3.5 V for efficient suppressing of voltage spikes.
Applications include automotive infotainment systems, audio/video monitors, automotive cameras, and high-speed SerDes interfaces such as GMSL and FPD-Link. The device's design also features dynamic resistance of 0.4 Ω and side-wettable flanks with matched trace spacing for ease of PCB assembly and improved reliability.
Protects high-speed interfaces against ESD and voltage transients. Compact package suitable for space-constrained applications. Wide operating temperature range for automotive and industrial use. Certifications include IEC 61000-4-2 and AEC-Q101.
Minimal capacitance preserves signal quality on data lines.
This product is ideal for engineers and designers seeking reliable ESD protection devices compatible with high-speed digital and automotive electronics. Browse EnvMart's extensive semiconductor category for compatible components and accessories to complete your design.
Explore more products in our TVS Diodes category.
