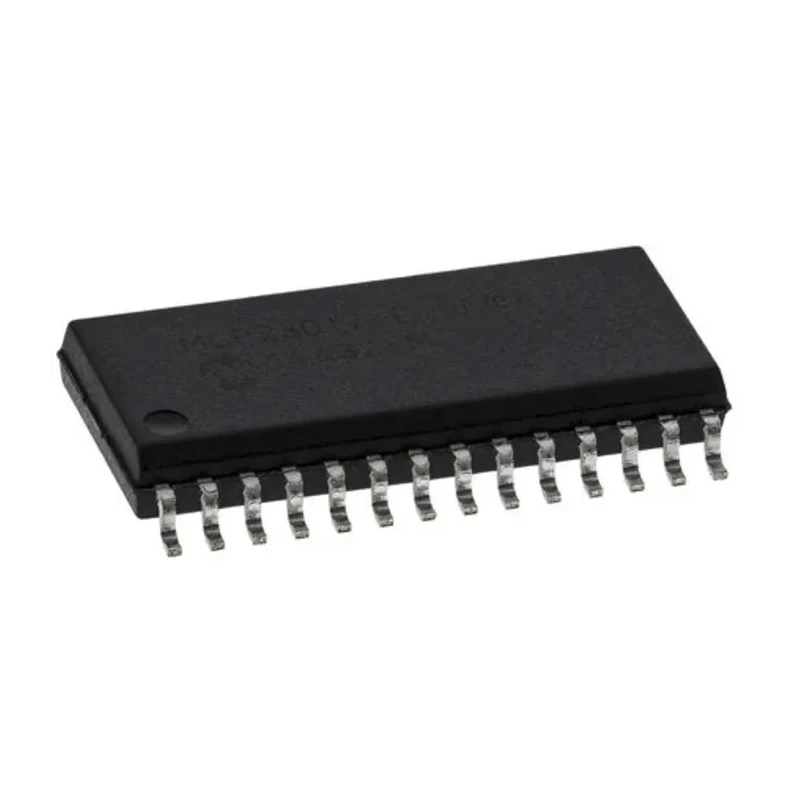

Microchip 16-Channel I/O Expander SOIC 28 MCP23017-E/SO 5MHz Clock Frequency 1.8V to 5.5V Supply Voltage

Name: Microchip 16-Channel I/O Expander SOIC 28 MCP23017-E/SO 5MHz Clock Frequency 1.8V to 5.5V Supply Voltage
Brand: Microchip
SKU: 385429
Price: 2.07 USD
Availability: InStock



Category I/O Expanders Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	2.65mm
Length	17.9mm
Model	MCP23017-E/SO
Mount Type	Surface
Series	MCP23017
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	28
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.8V
Clock frequency	5MHz
Number of I/O Channels	16
Microchip 16-Channel I/O Expander SOIC 28, MCP23017-E/SOBrand	Microchip

Key Features

Operates at a clock frequency of 5MHz ensuring rapid data processing.
Supports supply voltage ranging from 1.8V to a maximum of 5.5V for versatile power options.
Designed with a 28-pin SOIC package facilitating surface mount assembly.
Functions reliably within a temperature range of -40°C to 125°C suitable for harsh environments.
Features 16 input/output channels enabling extensive peripheral control.
Compact dimensions measuring 17.9mm in length and 2.65mm in height.
Suitable for numerous industrial and electronic applications requiring interface expansion.
Does not carry automotive certification, focusing on general semiconductors market.

Product Description

Microchip MCP23017-E/SO is a high-performance 16-Channel I/O Expander packaged in a 28-pin SOIC form factor designed for surface mounting. It is engineered to operate at a clock frequency of 5MHz, allowing fast parallel interface communication and expansion of microcontroller ports.

This device supports a wide supply voltage range from 1.8V to 5.5V, making it adaptable to various power conditions. It operates reliably across an industrial temperature range of -40°C minimum to 125°C maximum, making it suitable for demanding environments.

The MCP23017-E/SO offers 16 configurable input/output channels, providing enhanced flexibility to control peripherals and expand system capabilities in embedded and industrial electronics.

Physically, the module has a compact size, measuring 17.9mm in length and 2.65mm in height, aligning with standard SOIC 28 package dimensions for ease of PCB integration.

While this component does not meet automotive standards, it is versatile for multiple electronic and industrial semiconductor applications including interface extension, embedded control systems, and general-purpose parallel I/O tasks.

Operates with a clock speed of 5MHz for efficient performance. Wide supply voltage compatibility from 1.8V to 5.5V. High temperature reliability between -40°C and 125°C. Compact SOIC 28 package with 28 pins for surface mount.

Provides 16 digital input/output channels for device expansion. Designed for industrial and embedded system use cases. Enables flexible peripheral interfacing through parallel expansion. Discover more in our I/O Expanders category at EnvMart for similar reliable semiconductor solutions.
