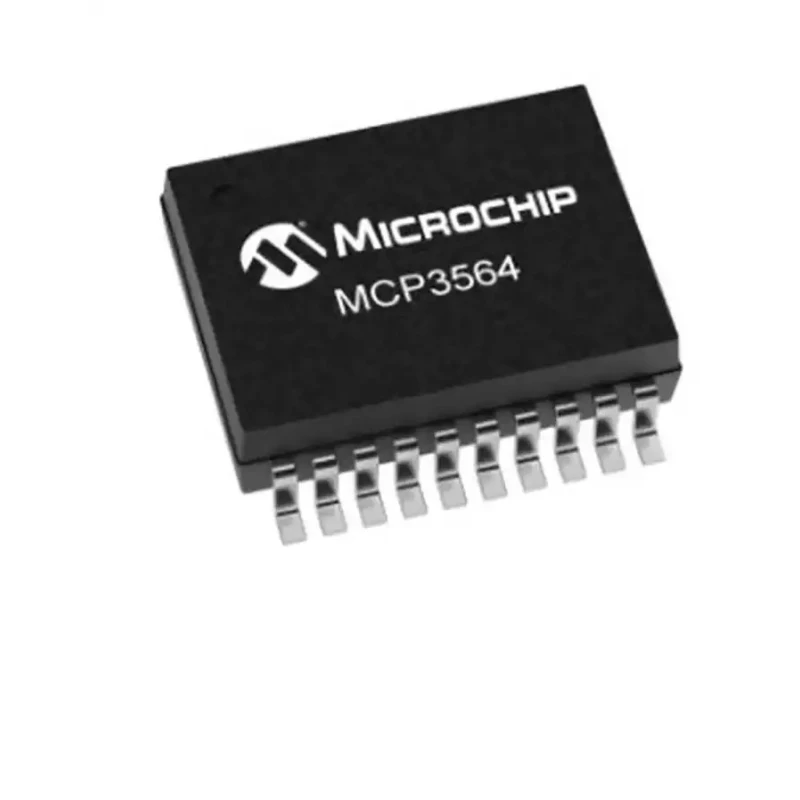

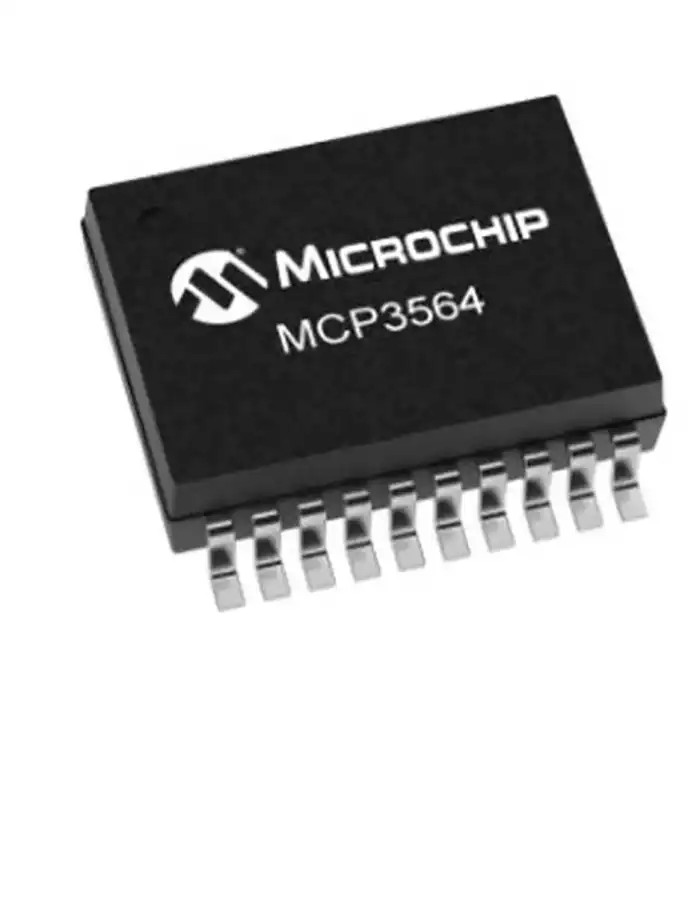

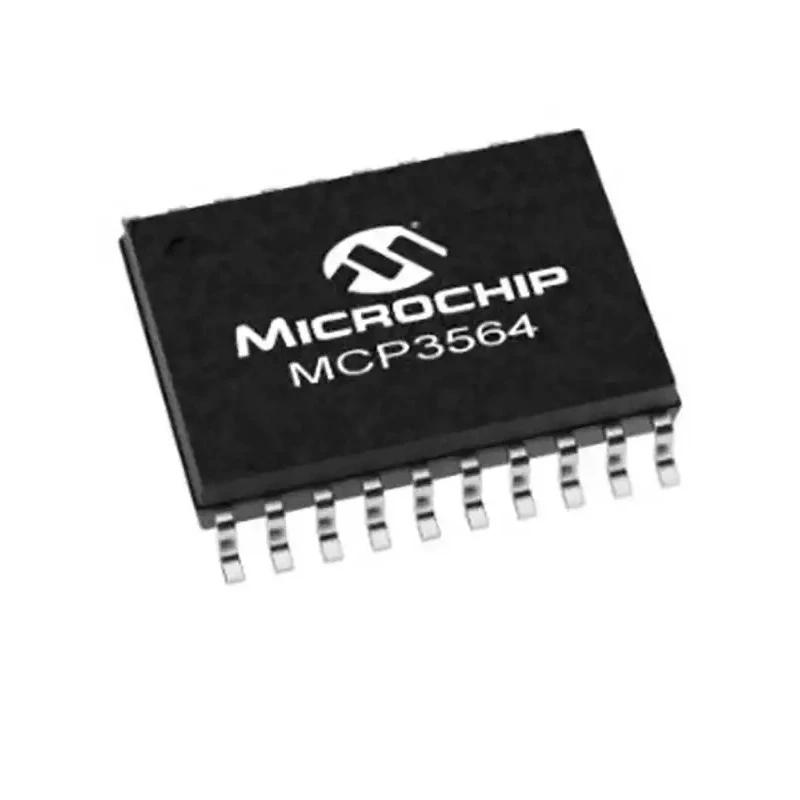

Microchip 4-Channel 24-bit Delta-Sigma ADC 153.6 ksps, 20-Pin TSSOP MCP3564-E/ST

Microchip MCP3564-E/ST is a versatile 4-channel Analog to Digital Converter (ADC) featuring 24-bit Delta-Sigma architecture, delivering high-resolution conversion with a sampling rate of up to 153.6 ksps. Housed in a compact 20-pin TSSOP surface-mount package, this ADC is ideal for sophisticated electronic designs requiring precise signal measurements.

The device supports both single-ended and differential input types, enabling accurate and flexible data acquisition. Its SPI-compatible serial interface operates at up to 20 MHz, facilitating fast and reliable communication with microcontrollers and digital signal processors.

Designed for demanding industrial and commercial applications, the MCP3564-E/ST operates over an extended temperature range from -40°C to 125°C and supports supply voltages from 2.7V to 3.6V, ensuring stability and performance in harsh environments. Additional features include an internal oscillator for timing without external components, an internal temperature sensor for monitoring device conditions, and burnout sensor detection for enhanced safety.

This ADC is widely applicable in fields such as industrial automation, laboratory instrumentation, medical equipment, data acquisition systems, and embedded systems development. Its high resolution and multi-channel capability make it suitable for precision measurement tasks like sensor interfacing, process control, and signal monitoring.

This ADC offers four independent channels for versatile data acquisition. Features 24-bit resolution for high accuracy in signal conversion. Supports single-ended and differential input types, enhancing flexibility. Operates with a programmable data rate up to 153.6 kilo-samples per second.

Mounted as a surface-mount TSSOP package with 20 pins, suitable for compact PCB designs. Communication via a 20 MHz SPI-compatible serial interface for efficient data transfer. Wide operating temperature range from -40°C to 125°C enables use in harsh environments.

Supply voltage range is between 2.7V minimum and 3.6V maximum, compatible with common power sources. Includes internal oscillator, temperature sensor, and burnout sensor detection for diagnostic purposes. Compact dimensions of 6.6 mm length and 1.1 mm height facilitate space-saving circuit integration.
