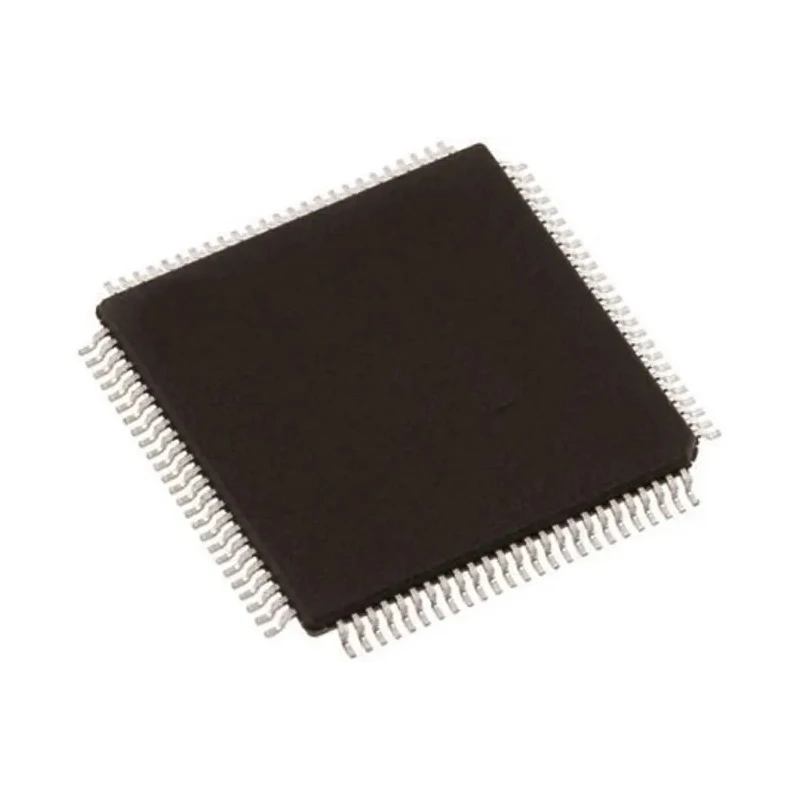

Lattice Semiconductor FPGA iCE40 1280 Logic Cells, 64000 bit RAM, 160 Logic Units, 100-Pin VQFP

Lattice Semiconductor iCE40HX1K-VQ100 FPGA is a field-programmable gate array designed for advanced digital circuits requiring configurable logic. Featuring 1280 logic cells, 160 logic units, and 64,000 bits of RAM, it provides flexible and efficient resource allocation for complex system designs.

This component is housed in a 100-pin Very Thin Quad Flat Package (VQFP) allowing surface mounting on printed circuit boards. Its supply voltage ranges from 1.14V minimum to a maximum of 1.26V, ensuring stable operation. The device supports a broad temperature range from -40°C up to 85°C, suitable for industrial environments.

The iCE40HX1K-VQ100 FPGA enables developers to implement highly customizable logic functions post-manufacture through SRAM programming. Its compact size (14 mm length and 1.05 mm height) makes it ideal for space-constrained embedded or electronic device applications.

Contains 1280 configurable logic cells enabling versatile logic designs. Incorporates 64000 bits of RAM for efficient data storage. Features 160 logic units for complex programmable operations. Packaged in a 100-pin VQFP surface mount type for compact application.

Operates reliably from 1.14V to 1.26V supply voltage. Designed to function in wide temperature range from -40°C to 85°C. Compact dimensions with 14 mm length and 1.05 mm height ensure space saving. No automotive or special standards applicable, ideal for standard semiconductor use.

Suitable for use in industrial, electronic components, power & connectors, and semiconductor applications.

This FPGA is suitable for industrial, electronics manufacturing, power management, and programmable logic controller (PLC) applications. It supports rapid prototyping and embedded system integration to meet various design requirements.
