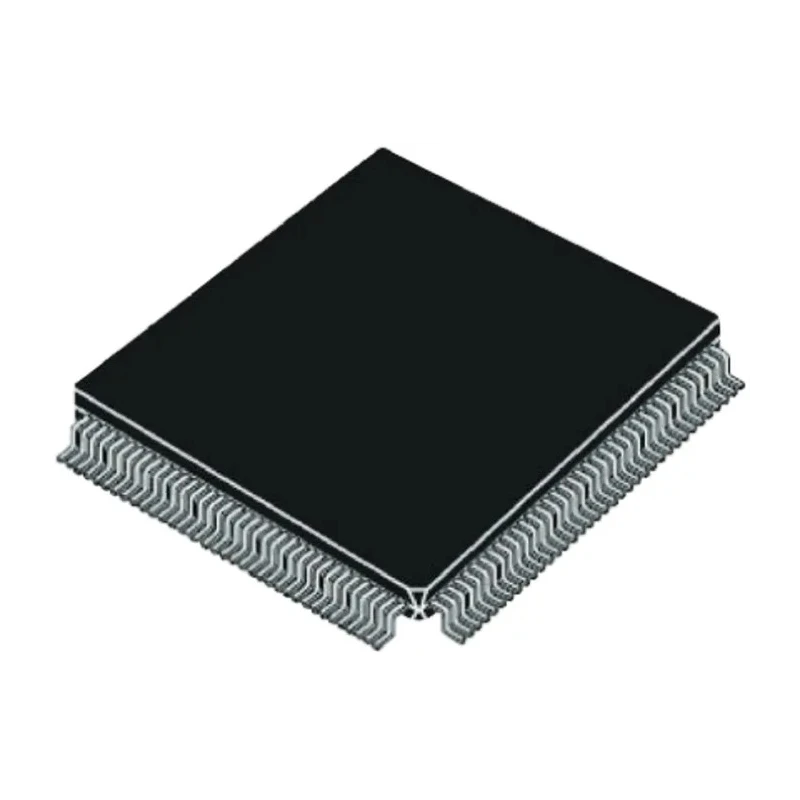

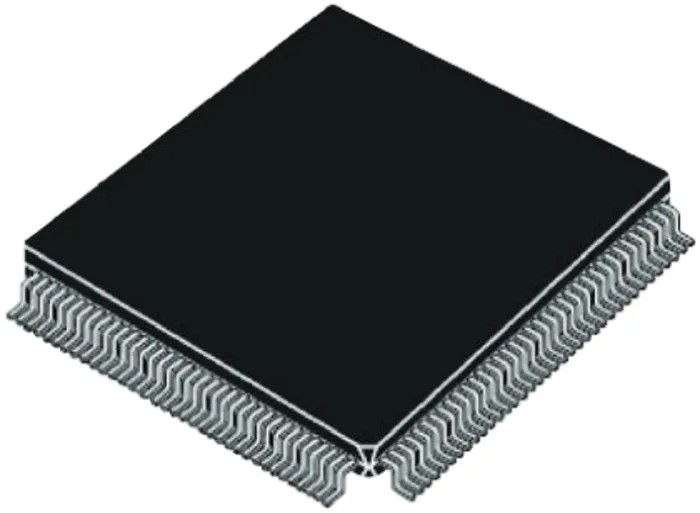

Lattice Semiconductor Complex Programmable Logic Device MachXO2 114 I/O, 7.24 ns Propagation Delay LCMXO2-4000HC-4TG144I

Lattice Semiconductor LCMXO2-4000HC-4TG144I complex programmable logic device (CPLD) is part of the MachXO2 family, designed for flexible and efficient logic design applications. Featuring 114 user input/output pins and 4320 logic elements, it allows for sophisticated programmable logic functions on a single chip.

This CPLD supports in-system programmability, enabling developers to re-program the device even after deployment, thus offering adaptability in evolving industrial and electronic systems. It is packaged in a surface mount 144-pin TQFP configuration, ensuring compact footprint suitable for dense PCB layouts.

With operating temperature range from -40°C to 125°C, the device is suitable for use in industrial environments requiring robust performance under varied conditions. It operates at frequencies up to 140 MHz and handles supply voltages from 2.38V to 3.46V, allowing compatibility with a range of power systems.

Its maximum propagation delay time of 7.24 ns supports high-speed logic operations critical in digital circuits. Although it does not have individual output enable control, it provides reliable logic control features integral to complex system designs.

Common applications for this CPLD include industrial automation, communications equipment, embedded systems, and other electronic devices requiring programmable logic solutions. The device's combination of speed, programmability, and temperature tolerance makes it well suited for use in harsh industrial and laboratory environments.

The device supports in-system programmability enabling flexible updates. It has a surface mount type with a 144-pin TQFP package for compact PCB designs. Operating temperature ranges from -40°C to 125°C for rugged performance.

Maximum operating frequency is 140 MHz suitable for high-speed applications. Supply voltage ranges from 2.38V to 3.46V for versatile power compatibility. The device does not support individual output enable control. Offers re-programmability support for iterative development and testing.

Measures 20 mm in length and 1.4 mm in height for streamlined integration. Explore more products in the Programmable Logic ICs category for advanced electronic and industrial solutions at EnvMart.
