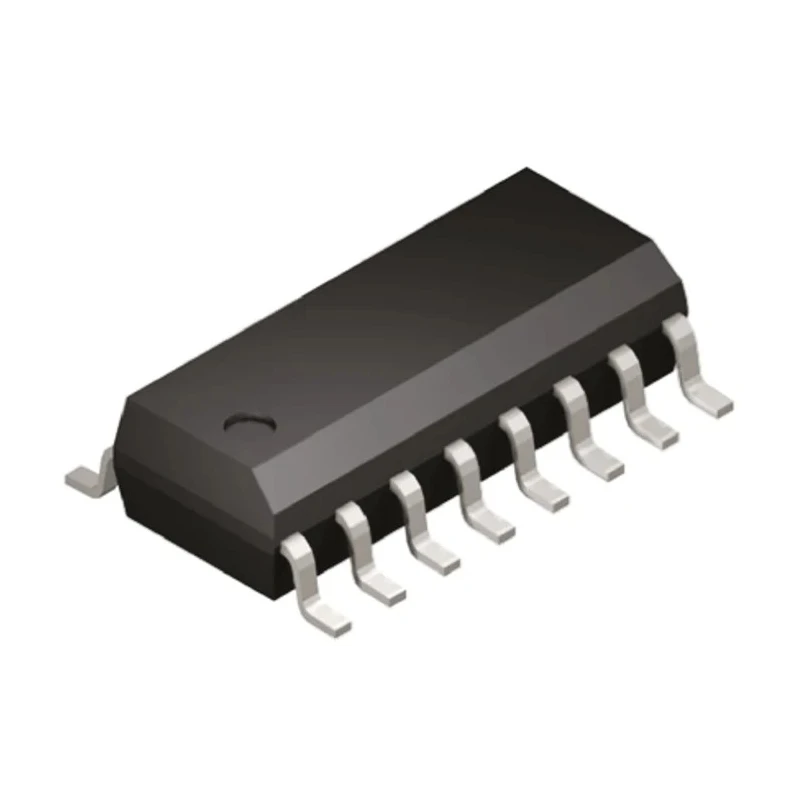

Microchip MCP3304-CI/SL 4-Channel 13-Bit SAR ADC 100 ksps SPI Interface 16-Pin SOIC

Microchip MCP3304-CI/SL is a high-performance 4-channel Analogue to Digital Converter (ADC) featuring 13-bit resolution based on a Successive Approximation Register (SAR) architecture. Designed for surface mounting, it comes in a 16-pin SOIC package with a length of 10.2mm and height of 1.75mm. This device operates with a supply voltage ranging from 4.5V to 5.5V and supports SPI interface communication, making it compatible with a wide range of microcontrollers and embedded systems.

Capable of sampling at 100,000 samples per second (100 ksps), the MCP3304 is suitable for applications requiring precise analog signal conversion, such as industrial instrumentation, data acquisition, and sensor interfacing. Its operating temperature range from -40°C to +125°C and compliance with automotive standard AEC-Q100 make it highly reliable under harsh environmental conditions.

The device features 4 ADC channels, enabling multi-channel sensing and measurement applications. Its precise 13-bit resolution ensures accurate data conversion, which is critical for control systems, laboratory testing equipment, and communication devices. The chip is supplied in a compact 16-pin SOIC package optimized for surface mounting, allowing for dense PCB layouts and ease of integration.

Provides four 13-bit ADC channels for accurate signal conversion. SAR architecture for fast and efficient analog-to-digital conversion. Supports SPI interface for streamlined communication with host processors. Wide operating temperature range from -40°C to +125°C suitable for industrial applications.

Meets automotive reliability standard AEC-Q100 for high-quality production use. Compact 16-pin SOIC package enables efficient PCB space utilization. Ideal for embedded systems, industrial control, laboratory equipment, and IoT sensors.

Low power consumption design enhances energy efficiency in portable devices. Supports supply voltages between 4.5V and 5.5V offering design flexibility. Robust performance under varying environmental and voltage conditions.

This Microchip MCP3304-CI/SL ADC is widely adopted in applications requiring high precision and reliability including industrial electronics, automotive sensing, laboratory instrumentation, and communication devices. Its compact size combined with high functionality makes it suitable for modern embedded designs and prototyping.
