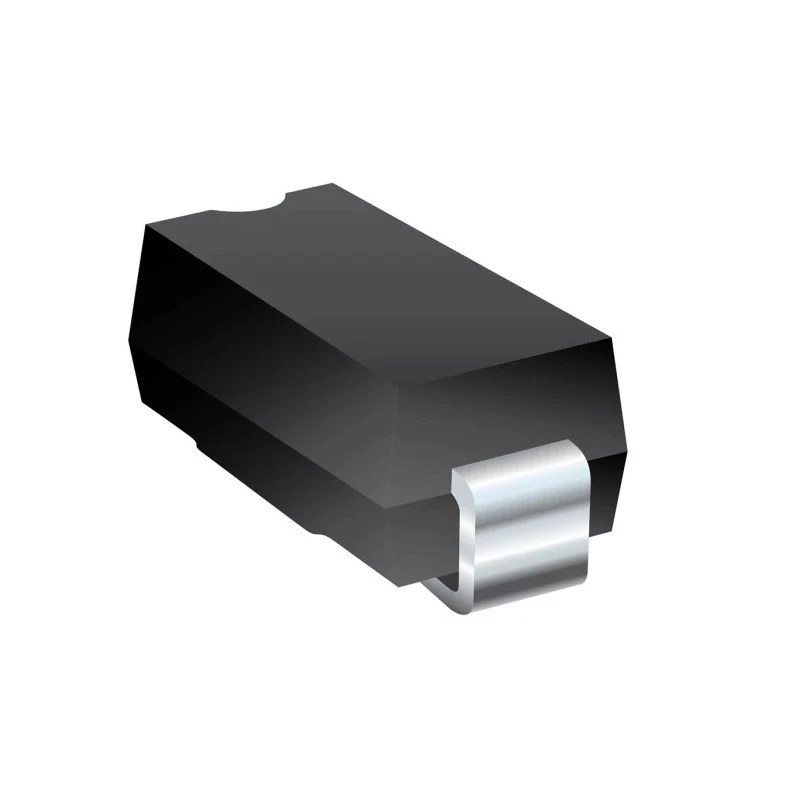

Bourns 1-Element Uni-Directional ESD Protection Diode 600 W 2-Pin DO-214 SMA6J18A-Q

Bourns SMA6J18A-Q is a 1-Element Uni-Directional ESD Protection Diode designed to safeguard sensitive electronic circuits from transient voltage spikes and electrostatic discharge events. It features a compact DO-214 SMA surface mount package allowing easy integration in dense PCB layouts commonly found in industrial and commercial electronic assemblies.

With a peak pulse power dissipation of 600 W and a maximum reverse stand-off voltage of 43 V, this device effectively clamps voltage surges, protecting power buses, I/O interfaces, telecom equipment, computer electronics, and industrial devices. The diode exhibits a fast response time less than 1 picosecond, ensuring rapid suppression of transient events.

The diode operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for harsh automotive and industrial environments. Its compliance with the AEC-Q101 automotive standard further guarantees performance under rigorous conditions.

The 2-pin DO-214 package has precise dimensions of 4.5 mm in length, 2.79 mm in width, and 2.08 mm in height, facilitating automated pick and place assembly. The device features a maximum reverse leakage current of only 1 μA, enhancing circuit efficiency and reliability.

Single diode configuration designed for uni-directional ESD protection. Minimum breakdown voltage of 20 V for reliable operation. Maximum reverse stand-off voltage of 43 V to protect sensitive electronics. Peak pulse power dissipation rating of 600 W ensures robust surge handling.

Wide operating temperature range from -55°C to 150°C for harsh environments. Compact DO-214 SMA surface mount package with small footprint. Compliance with AEC-Q101 automotive standard for high reliability. Applications include protection of power buses, I/O interfaces, telecom, computer, industrial, and consumer electronics.

This diode is ideal for use in industrial, automotive, telecommunications, and consumer electronic applications where transient voltage suppression is critical. The surface mount SMA packaging combined with high power dissipation and fast response time offers a compact yet powerful solution for circuit protection.
