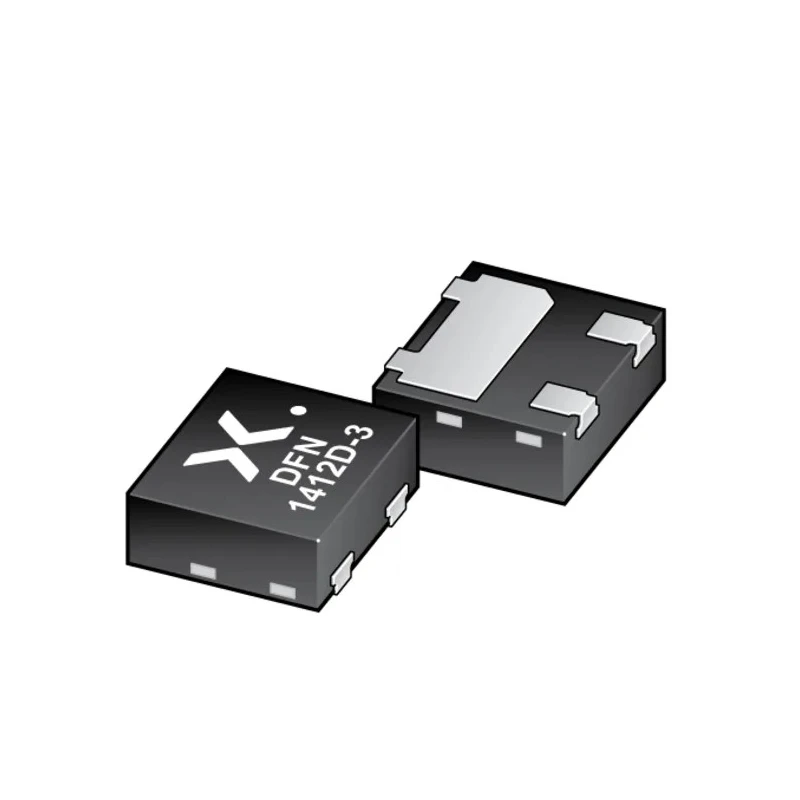

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3 PESD2CANFD24V-QCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 1.4mm |
| Model | PESD2CANFD24V-QCZ |
| Width | 0.47mm |
| Mount Type | Surface |
| Series | PESD2CANFD24V-QC |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 42V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 2.6A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Bi-directional ESD protection ensures reliable circuit safeguarding.
- Supports maximum reverse stand-off voltage of 24V.
- Compact surface-mounted DFN1412D-3 form factor with 3 pins.
- Handles peak pulse currents up to 2.6A efficiently.
- Offers low clamping voltage VC of 42V for enhanced device protection.
- Wide operating temperature range from -65°C to 150°C.
- AEC-Q101 automotive standard qualified for robust performance.
- RoHS compliant and meets IEC 61000-4-2 standards.
Product Description
Nexperia PESD2CANFD24V-QCZ is a bi-directional ESD protection diode engineered to protect sensitive automotive and industrial circuits from electrostatic discharge. With its compact 3-pin DFN1412D-3 package, this device is designed for surface-mount applications requiring dependable protection and minimal PCB footprint.
Bi-directional protection allows safeguarding of two bus lines simultaneously. Max reverse stand-off voltage VRWM is 24V, which covers a broad spectrum of automotive and industrial interface standards. The device supports a peak pulse current of up to 2.6A and clamping voltage VC of 42V, offering robust defense against strong ESD events.
Ultra-low reverse leakage current of 50nA minimizes power loss in static operation. Operates efficiently across a wide temperature range from -65°C to 150°C, making it suitable for harsh environments. DFN1412D-3 leadless plastic package with side wettable flanks ensures reliable soldering and compact mounting.
Qualified to AEC-Q101 automotive standard and compliant with IEC 61000-4-2 and RoHS for global industry requirements. Provides ESD protection up to 23 kV (IEC 61000-4-2 and ISO 10605) for critical bus lines.
This device is ideal for automotive in-vehicle networks, industrial control systems, consumer electronics, and other environments that demand high-reliability ESD protection while maintaining a small footprint.
Common applications include CAN FD bus lines, industrial data highways, signal interfaces, and equipment subject to electrostatic threats. Its low clamping voltage and stable characteristics make it well suited for sensitive microcontroller and communication circuits.
Discover more semiconductors and protection diodes from Nexperia in the TVS Diodes category at EnvMart. Explore EnvMart for a full range of automotive and industrial protection devices and ESD solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage (VRWM) for this model is 24V.
It can handle a peak pulse current of up to 2.6A efficiently.
The clamping voltage (VC) is 42V, providing enhanced protection against ESD events.
This model operates efficiently across a wide temperature range from -65°C to 150°C.
The dimensions of the package are 1.4mm in length, 0.47mm in width, and 1.2mm in height.
Yes, it is compliant with IEC 61000-4-2 and RoHS standards, and qualified to AEC-Q101 automotive standard.
It supports surface mounting, making it suitable for compact PCB designs.
This diode is bi-directional, allowing it to protect two bus lines simultaneously.
The maximum reverse leakage current is 50nA, which helps minimize power loss during static operation.
It is suitable for automotive in-vehicle networks, industrial control systems, and consumer electronics that require ESD protection.
The minimum breakdown voltage (Vbr) is 25.5V, providing reliable protection for sensitive circuits.
It provides ESD protection up to 23 kV, meeting IEC 61000-4-2 and ISO 10605 standards for critical bus lines.
