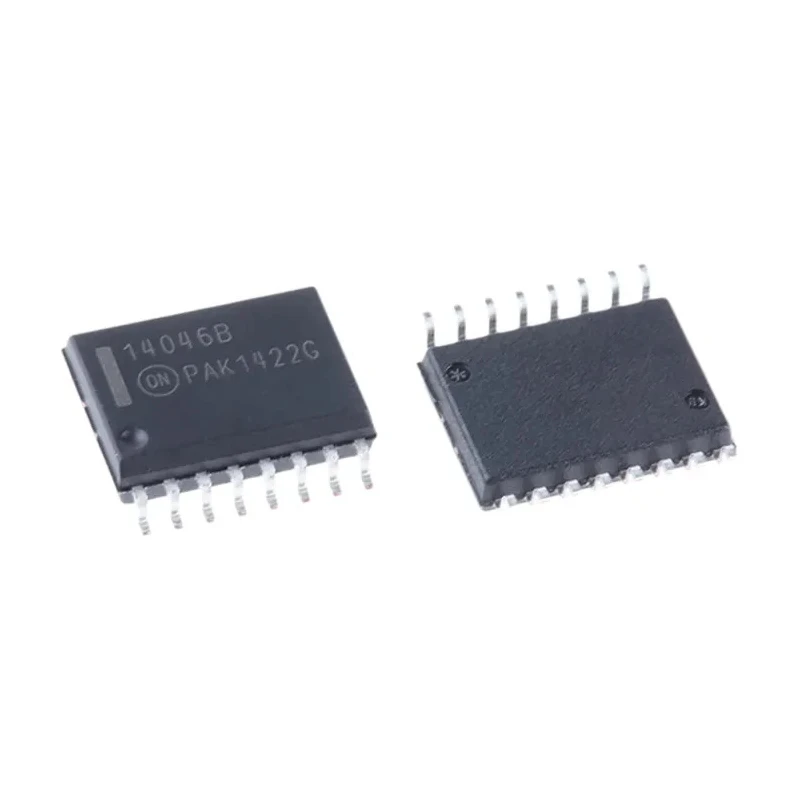

onsemi PLL Circuit 2 Outputs 16-Pin SOIC CMOS Logic 3 to 18V MC14046BDWG

onsemi MC14046BDWG is a Phase Locked Loop (PLL) circuit designed for clock synthesis and frequency control applications. The device operates from a minimum supply voltage of 3V up to 18V, providing versatility in power source options. With a maximum output frequency of 0.7 MHz, it is suitable for timing and frequency generation in industrial and electronic systems.

The PLL circuit features two outputs configured with CMOS logic levels, facilitating integration with modern digital electronics. Its surface mount SOIC package with 16 pins allows efficient PCB assembly and compact circuit designs. Dimensions are precise at 10.45 mm length, 7.6 mm width, and 2.4 mm height, meeting standard PCB footprint requirements.

The operational temperature range of -55°C to 125°C ensures performance under harsh environmental conditions typical in industrial, automotive, and telecommunications fields. However, this specific model has no automotive standard certification. The MC14046BDWG is part of the MC14046B series, widely used for voltage controlled oscillator (VCO) applications, enabling frequency stabilization and modulation.

This integrated circuit is utilized extensively in industrial electronics, test equipment, instrumentation, telecommunications, and control systems requiring accurate clock and frequency synthesis. Its surface mount design simplifies manufacturing and reduces space on printed circuit boards.

The device supports a supply voltage from 3V to 18V for broad application flexibility. Maximum output frequency is 0.7 MHz, suitable for low-frequency timing needs. Interface logic level is CMOS, compatible with standard digital logic circuits.

Operating temperature range of -55°C to 125°C supports harsh environment use. Comes in a 16-pin SOIC surface mount package measuring 10.45 mm by 7.6 mm by 2.4 mm. No automotive certifications are applicable.
