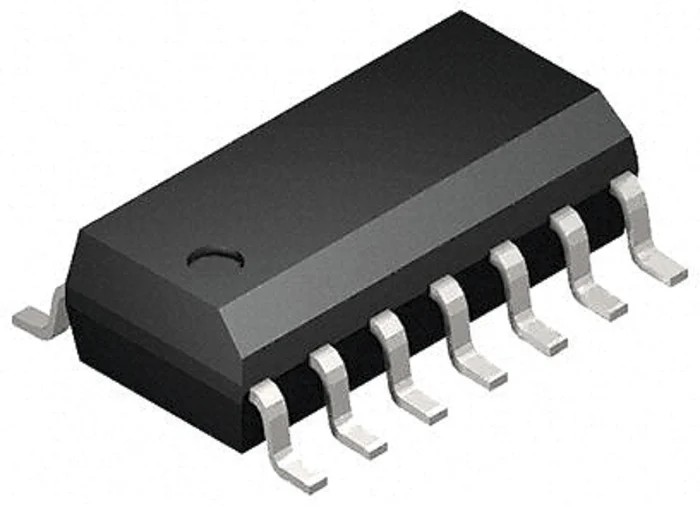

Toshiba CMOS Digital Integrated Circuit Inverter Logic IC 6 Elements, 14-Pin SOIC 74HC05D

Toshiba 74HC05D CMOS digital integrated circuit is a high-performance inverter designed with silicon gate CMOS technology that combines high speed with low power dissipation. This device consists of 6 inverter elements in a 14-pin SOIC surface mount package.

The open-drain output structure enables wired-AND logic, LED driving, and other versatile applications when used with suitable pull-up resistors. Inputs include protection against static electricity and transient excess voltage, enhancing reliability.

This IC operates efficiently within a supply voltage range of 2V to 6V, making it suitable for low-voltage digital circuits and embedded systems. It exhibits a typical propagation delay of 27 nanoseconds at the specified load condition, enabling high-speed logic switching capabilities required in modern electronics.

With an operating temperature range from -40°C to 125°C, the 74HC05D supports demanding industrial and commercial applications. Its surface-mount SOIC package measures 8.95 mm in length, 3.9 mm width, and 1.38 mm height, optimising PCB space usage. Typical current consumption is low, with ICC maxima around 1 μA at room temperature, supporting energy-efficient circuit designs.

The device, belonging to the 74HC logic family, lacks automotive qualification but meets general digital logic standards, making it ideal for power and control electronics, instrumentation, industrial automation, and consumer electronics. It is widely used in digital inverter circuits, signal conditioning, and logic level conversion tasks.

The IC features six inverter logic elements in a single chip. Open-drain outputs support wired-AND logic configurations and LED driving. The device operates over a wide voltage range of 2 to 6 volts. Built-in static discharge and voltage transient protection on all inputs.

Compact 14-pin SOIC surface-mount package minimizes PCB footprint. Industrial operating temperature range from -40°C to 125°C ensures reliability. Low power consumption suitable for energy-sensitive applications. Standard 74HC logic family compatible for seamless integration.

Maximum propagation delay of 27ns enables fast logic transitions. Typical height of 1.38 mm for dense PCB layouts.

EnvMart offers this Toshiba logic IC as a dependable component for industrial, manufacturing, electronics design, and repair applications. For further exploration of Integrated Circuits and digital logic components, browse related Penguin Electronics or EnvMart catalogs.
