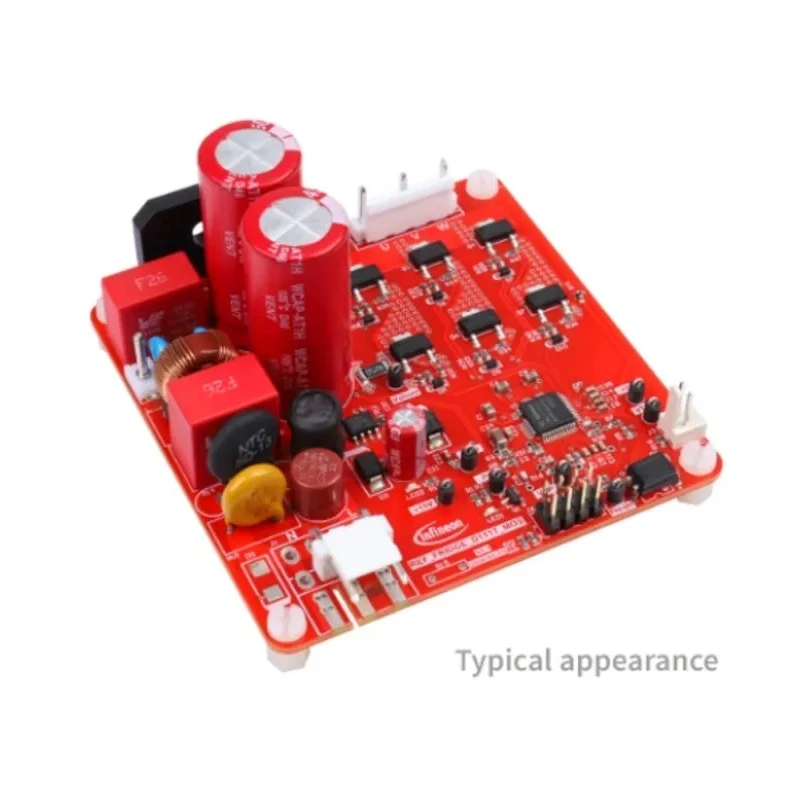

Infineon Reference Board MOSFET for IPN60R1K0PFD7S for Motors
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | IPN60R1K0PFD7S |
| For Use With | Motors |
| Standards/Approvals | RoHS |
| Kit Classification | Reference Design |
| Featured Device | IPN60R1K0PFD7S |
| Kit Name | Reference Board |
Key Features
- This board features the iMOTION Smart Driver IMD111T-6F040 and 600 V CoolMOS PFD7 super junction MOSFET IPN60R1K0PFD7S.
- The power stage provides sensorless field oriented control and includes emitter shunts for current sensing.
- Equipped with single-phase AC connector, rectifier, and three-phase output for motor connection.
- Compact design supports best light-load efficiency and cost-effective SMT implementation using SOT-223 packages.
- Interface includes graphical user interface (GUI) for ease of use.
- Reference design classified as a kit for power and motor development applications.
- Fully compliant with RoHS standards for environmental safety.
- Ideal for power management and motor control in industrial and HVAC applications.
Product Description
Infineon IPN60R1K0PFD7S Reference Board MOSFET for Motors REFFRIDGED111TMOSTOBO1 is a dedicated three-phase inverter board designed specifically for refrigerator compressors, representing a complete solution integrating the iMOTION Smart Driver IMD111T-6F040 with the 600 V CoolMOS PFD7 super junction MOSFET IPN60R1K0PFD7S.
This reference board offers an easy-to-use power stage based on discrete CoolMOS super junction MOSFETs implemented in a compact SMT design utilizing SOT-223 packages to ensure cost efficiency and reliable performance.
Equipped with all assembly groups needed for sensorless field-oriented control (FOC), the device includes precise current sensing via emitter shunts and voltage measurement through a dedicated voltage divider. The board provides a single-phase AC connector input, a full bridge rectifier circuit, and three-phase output connections for direct motor interface.
The system delivers superior light-load efficiency and compact design benefits, which are critical for space-constrained and energy-sensitive motor control applications in refrigeration and similar HVAC or industrial domains.
Integrates iMOTION Smart Driver IMD111T-6F040 with 600 V CoolMOS PFD7 MOSFET. Sensorless field oriented control for enhanced motor performance without additional sensors. Compact and cost-effective SMT construction utilizing SOT-223 packages.
Single-phase AC input with rectifier and three-phase motor output interface. Emitter shunts and voltage dividers provide accurate current and voltage monitoring. Graphical user interface (GUI) support enhances ease of development and testing.
Fully RoHS compliant ensuring environmental safety standards.
This reference board is ideal for engineers developing motor drive solutions in industrial automation, HVAC systems, and other power management applications requiring high efficiency and precision control.
Explore the extensive range of motor driver and power management boards available at EnvMart to support your development needs.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This reference board is designed specifically for motor control applications, particularly for refrigerator compressors and similar HVAC systems.
The board features the 600 V CoolMOS PFD7 super junction MOSFET IPN60R1K0PFD7S.
It provides sensorless field-oriented control (FOC) for enhanced motor performance without the need for additional sensors.
This unit supports a single-phase AC input with a full bridge rectifier circuit.
It includes three-phase output connections for direct interface with motors.
The board is equipped with emitter shunts for current sensing and a dedicated voltage divider for voltage measurement.
It utilizes a compact surface-mount technology (SMT) design with SOT-223 packages for cost efficiency and reliable performance.
Yes, it is fully compliant with RoHS standards for environmental safety.
It includes a graphical user interface (GUI) to enhance ease of development and testing.
The country of origin for this product is India.
This model is classified as a reference design kit for power and motor development applications.
The featured device is the IPN60R1K0PFD7S MOSFET, which is integral to its operation.
