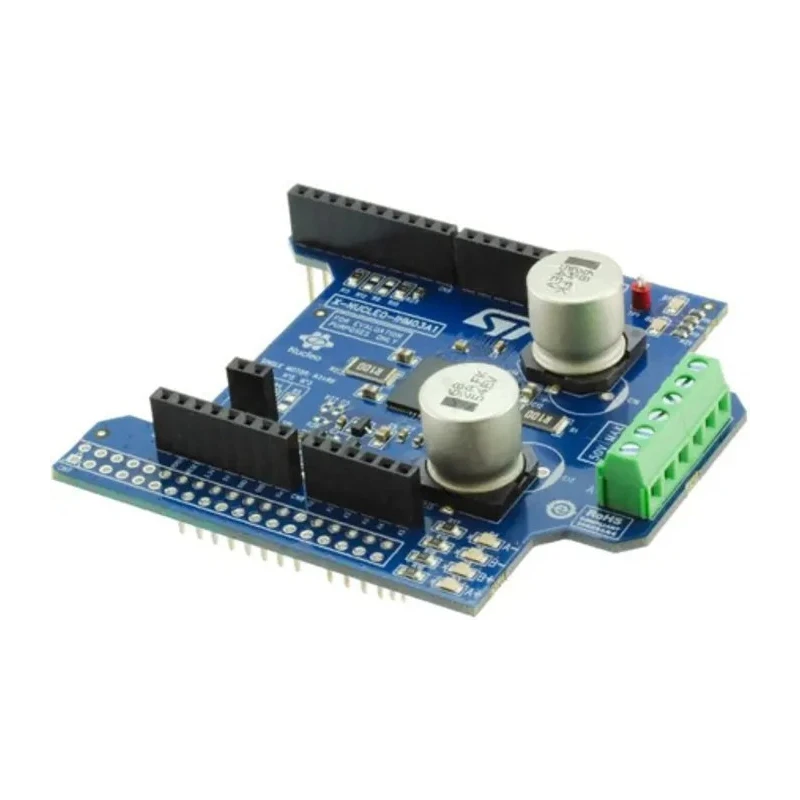

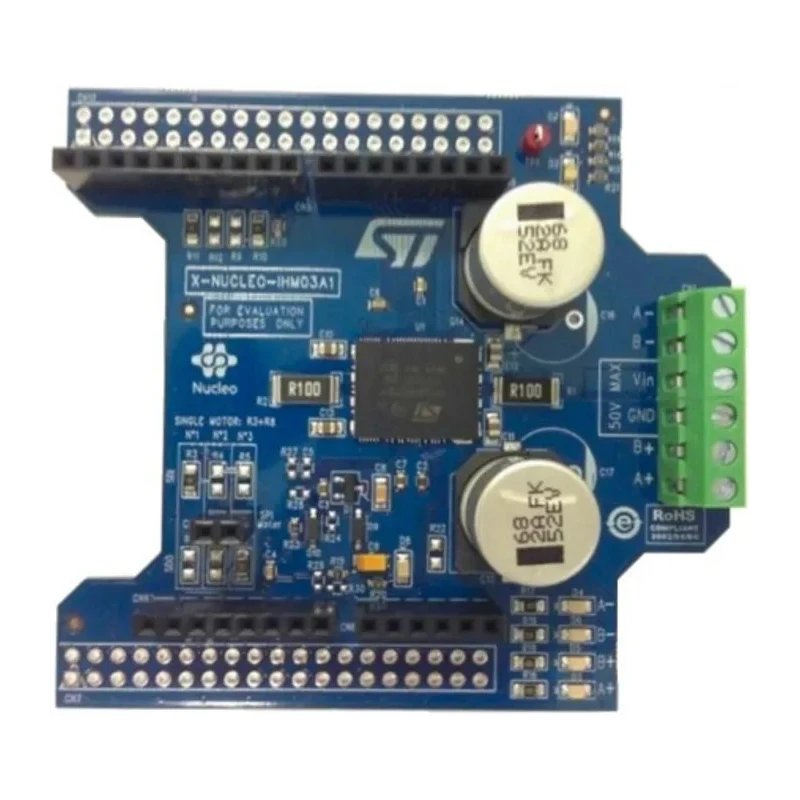

STMicroelectronics High-Power Stepper Motor Driver Evaluation Board for powerSTEP01 with Microstepping X-NUCLEO-IHM03A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-IHM03A1 |
| For Use With | STM32 Nucleo Boards |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | powerSTEP01 |
| Kit Name | X-NUCLEO-IHM |
| Microstepping | 1/128 |
Key Features
- The board integrates a microstepping controller with 10A power MOSFETs in a dual full-bridge configuration.
- Supports high-power bipolar stepper motor driving with voltages from 7.5V to 85V.
- Compatible with Arduino UNO R3 connector to enable stacking with other boards for multi-motor control.
- Features fully digital motion control including speed profile generation and positioning calculations.
- Includes protection features such as sensorless stall detection, over-current, and over-temperature protection.
- Supports up to 1/128 microstepping for precise motor control.
- Equipped with integrated voltage regulators and SPI interface for communication.
- Designed with low quiescent standby current for energy efficiency.
Product Description
STMicroelectronics X-NUCLEO-IHM03A1 is a high-power stepper motor driver evaluation board equipped with the powerSTEP01 system-in-package. It integrates a microstepping controller and power MOSFETs capable of handling up to 10A in a dual full-bridge configuration, making it suitable for driving high-power bipolar stepper motors within STM32 Nucleo projects.
The board is compatible with STM32 Nucleo development boards and features an Arduino UNO R3 connector standard, allowing stacking of multiple boards to control up to three stepper motors from a single STM32 Nucleo board.
Operating voltage ranges from 7.5V to 85V, with programmable speed profiles and up to 1/128 microstepping for enhanced positioning accuracy. Its fully digital motion control includes speed profile generation, positioning calculations, and robust protection mechanisms.
Protection features include sensorless stall detection, programmable non-dissipative over-current protection, and over-temperature protection. The device also integrates voltage regulators and communicates through SPI interface while maintaining low quiescent standby currents.
This evaluation board is ideal for prototyping and development in industrial automation, robotics, and embedded systems. Its robust design supports high current motors with precision control suitable for laboratory, manufacturing, and research applications.
The board integrates a microstepping controller with 10A power MOSFETs in a dual full-bridge configuration. Supports high-power bipolar stepper motor driving with voltages from 7.5V to 85V. Compatible with Arduino UNO R3 connector to enable stacking with other boards for multi-motor control.
Features fully digital motion control including speed profile generation and positioning calculations. Includes protection features such as sensorless stall detection, over-current, and over-temperature protection. Supports up to 1/128 microstepping for precise motor control.
Equipped with integrated voltage regulators and SPI interface for communication. Designed with low quiescent standby current for energy efficiency. Explore more products in Motor Driver Boards at EnvMart for comprehensive motor control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range of this evaluation board is from 7.5V to 85V.
The integrated power MOSFETs can handle up to 10A in a dual full-bridge configuration.
This model supports microstepping up to 1/128 for precise motor control.
Yes, it is compatible with the Arduino UNO R3 connector, allowing stacking with other boards for multi-motor control.
The board includes sensorless stall detection, over-current protection, and over-temperature protection.
It is equipped with an SPI interface for communication.
This evaluation board is ideal for prototyping and development in industrial automation, robotics, and embedded systems.
Yes, the evaluation board includes integrated voltage regulators.
It is designed for use with STM32 Nucleo boards.
The country of origin for this product is India.
The evaluation board complies with RoHS standards.
The kit classification for this product is Evaluation Board.
