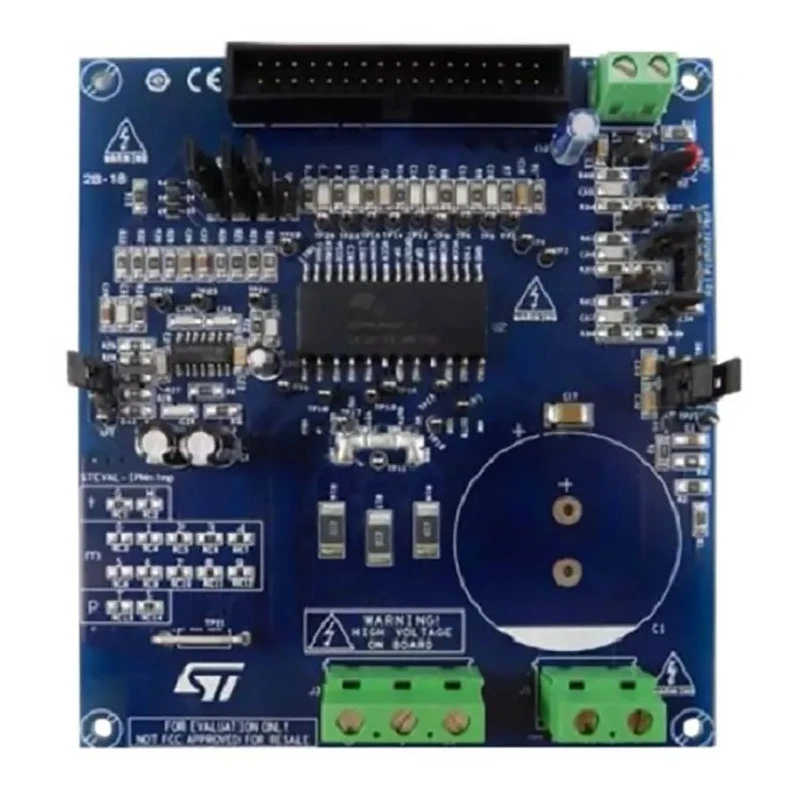

STMicroelectronics 300W mMotor Control Power Board Motor Control for STGIPNS3H60T-H for ST Control Board STEVAL-IPMnG3S
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-IPMnG3S |
| Nominal Current | up to 1.8 A |
| Nominal Power | up to 300 W |
| For Use With | ST Control Board Based on STM32 |
| Standards/Approvals | WEEE, RoHS |
| Kit Classification | Demonstration Board |
| Featured Device | STGIPNS3H60T-H |
| Kit Name | 300W mMotor Control Power Board |
| Three options for current sensing | dedicated external op-amps, internal |
Key Features
- Compact motor drive power board using SLLIMM-Nano SMD module STGIPNS3H60T-H.
- Supports input voltage range from 125 to 400 VDC.
- Designed for nominal current up to 1.8 A.
- Features multiple current sensing options including dedicated external op-amps and internal SLLIMM-Nano op-amp.
- Includes overcurrent hardware protection and temperature monitoring with internal sensors.
- Interfaces with ST MCU boards via 32-pin motor control connector.
- Suitable for power white goods, air conditioning, compressors, and 3-phase motor drives.
Product Description
STMicroelectronics STEVAL-IPMnG3S is a high-efficiency, compact 300 W motor control power board based on the SLLIMM-Nano SMD IPM module STGIPNS3H60T-H. It provides an effective solution for driving high power motors in various industrial and commercial applications such as power white goods, air conditioning systems, compressors, power fans, and 3-phase inverters for motor drives.
The board supports an input voltage range from 125 to 400 VDC and a nominal current up to 1.8 A, ensuring robust motor control. It offers three options for current sensing: dedicated external operational amplifiers, the internal single SLLIMM-Nano op-amp, or via the connected microcontroller unit (MCU).
Critical hardware protections include overcurrent detection and shutdown, internal temperature sensors, and undervoltage lockout features to prevent damage during operation. This makes the STEVAL-IPMnG3S a reliable choice for high power motor drive applications requiring safety and efficiency.
The motor control connector provides a 32-pin interface to STM32-based control boards facilitating easy integration and rapid development of evaluation projects.
Designed as a demonstration board, this compact power board minimizes bill of materials (BOM) and size, while maximizing efficiency and safety features. It complies with WEEE and RoHS standards, making it suitable for environmentally conscious designs.
Compact form factor with integrated intelligent power module. Input voltage: 125 to 400 VDC. Nominal power: up to 300 W with 1.8 A nominal current. Multiple current sensing methods including internal and external op-amps.
Overcurrent protection and temperature monitoring provide system reliability. 32-pin motor control connector compatible with STM32 MCU boards. Ideal for industrial, HVAC, appliance, and motor drive evaluation use cases. Explore a wide range of power and motor robotics development tools at EnvMart for your industrial and electronic design needs.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 125 to 400 VDC.
It supports a nominal current of up to 1.8 A.
The maximum nominal power output is up to 300 W.
It is designed for use with ST control boards based on STM32.
The board offers three options for current sensing: dedicated external operational amplifiers, the internal SLLIMM-Nano op-amp, or via the connected microcontroller unit (MCU).
It includes overcurrent detection and shutdown, internal temperature sensors, and undervoltage lockout features to enhance system reliability.
The board complies with WEEE and RoHS standards.
It has a compact form factor with an integrated intelligent power module.
It features a 32-pin motor control connector that is compatible with STM32-based control boards, allowing for easy integration.
It is suitable for applications such as power white goods, air conditioning systems, compressors, and 3-phase motor drives.
This model is classified as a demonstration board, designed for evaluation purposes.
The country of origin for this product is India.
