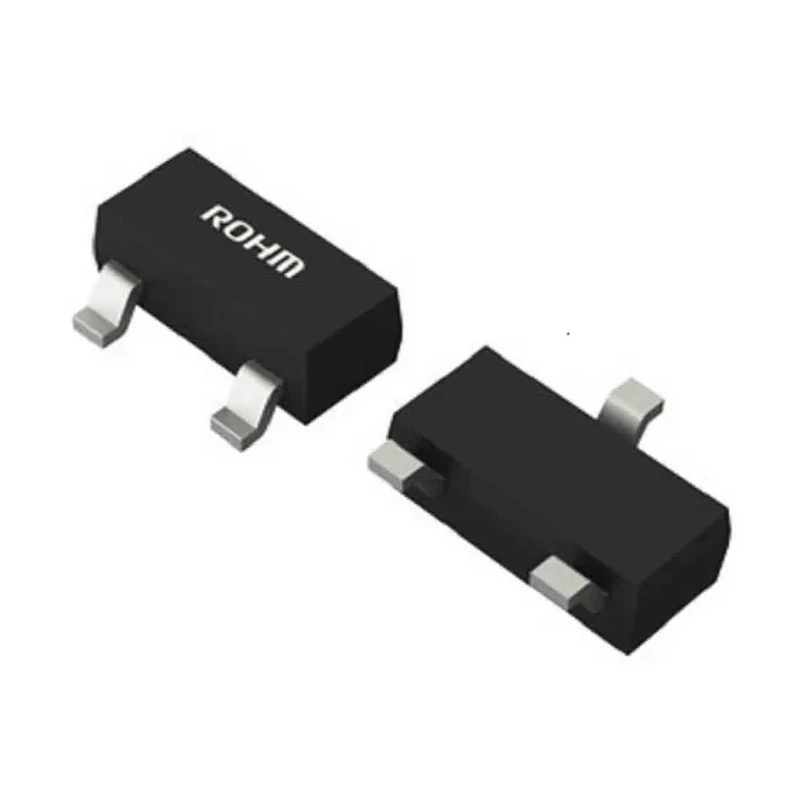

ROHM 30 V 200 mA Schottky Barrier Diode 3-Pin Surface Mount SOT-23 BAT54SHYT116
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.15mm |
| Length | 3.1mm |
| Model | BAT54SHYT116 |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | BAT54SHY |
| Package Type | SOT-23 |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 0.8V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Maximum continuous forward current of 200 mA ensures efficient current handling.
- Peak reverse repetitive voltage rating of 30 V provides reliable blocking capability.
- Low forward voltage drop of 0.8 V minimizes power loss.
- Compact SOT-23 package with 3 pins facilitates space-saving surface mounting.
- Extremely fast peak reverse recovery time of 50 ns enhances high-speed switching performance.
- Ultra small mold type design for efficient PCB layout and high density assembly.
- Peak non-repetitive forward surge current capability of 600 mA enhances transient tolerance.
- Complies with RoHS standards for environmental safety.
Product Description
ROHM BAT54SHYT116 is a 30 V, 200 mA Schottky Barrier Diode designed for high reliability small current rectification. Housed in a compact 3-pin SOT-23 surface mount package, this diode offers low forward voltage and fast switching capabilities, ideal for electronic circuit designs requiring efficient power management and minimal voltage drop losses.
This diode exhibits a maximum continuous forward current of 200 mA and a peak reverse voltage of 30 V, making it suitable for various industrial, communication, and consumer electronic applications. The low forward voltage of 0.8 V reduces power dissipation, improving overall energy efficiency.
The BAT54SHYT116 package dimensions of length 3.1 mm, width 1.5 mm, and height 1.15 mm allow for compact PCB layouts, enhancing space utilization especially in dense electronic assemblies. With a peak non-repetitive forward surge current of 600 mA and a fast peak reverse recovery time of 50 ns, it performs reliably under transient conditions and switching operations.
This diode is RoHS compliant, ensuring adherence to environmental regulations. Its small footprint and electrical characteristics make it well-suited for use in power supply circuits, switching regulators, signal rectification, and protection circuits in industrial, laboratory, and consumer electronics sectors.
Maximum continuous forward current of 200 mA for efficient current conduction. Peak reverse repetitive voltage of 30 V for reliable blocking performance. Low forward voltage drop of 0.8 V to reduce energy loss. Compact 3-pin SOT-23 surface mount package for space-saving design.
Fast peak reverse recovery time of 50 ns for high-speed switching. Peak surge current capability of 600 mA to tolerate transient loads. RoHS compliant for environmental safety.
This ROHM Schottky Barrier Diode model BAT54SHYT116 is suitable for industrial machines, communication devices, electronic power supplies, and various laboratory instruments requiring efficient rectification and fast switching functionality. Explore more Schottky Barrier Diode products in EnvMart's Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 200 mA, ensuring efficient current handling in various applications.
This model has a peak reverse repetitive voltage rating of 30 V, providing reliable blocking capability in electronic circuits.
The forward voltage drop of this diode is 0.8 V, which helps minimize power loss during operation.
The SOT-23 package dimensions are 3.1 mm in length, 1.5 mm in width, and 1.15 mm in height, making it suitable for compact PCB layouts.
The peak non-repetitive forward surge current capability of this diode is 600 mA, enhancing its tolerance to transient loads.
This model features a fast peak reverse recovery time of 50 ns, which enhances its high-speed switching performance.
Yes, the BAT54SHYT116 complies with RoHS standards, ensuring it meets environmental safety regulations.
This diode is a Schottky type rectifier, designed for high reliability small current rectification.
The peak reverse current rating for this diode is 2 μA, indicating its low leakage under reverse bias conditions.
This Schottky barrier diode is suitable for applications in power supply circuits, switching regulators, signal rectification, and protection circuits.
The SOT-23 package of this diode has 3 pins, facilitating surface mounting in electronic designs.
This diode belongs to the BAT54SHY series, which is known for its compact design and efficient performance in electronic applications.
