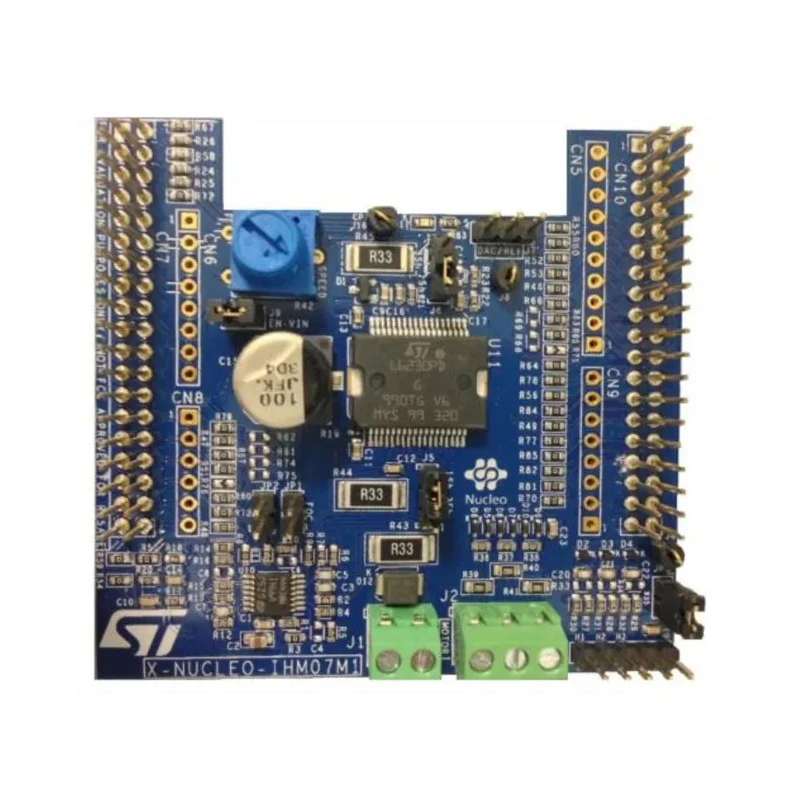

STMicroelectronics Motor Configuration Brushless DC Motor Evaluation Board for L6230 with STM32 Nucleo X-NUCLEO-IHM07M1

STMicroelectronics X-NUCLEO-IHM07M1 is a brushless DC motor driver expansion board tailored for motor control applications using the L6230 device. It is engineered for compatibility with STM32 Nucleo boards, facilitating rapid development and testing of motor control algorithms.

This evaluation board supports three-phase BLDC motors and is optimized for both six-step commutation and field-oriented control (FOC) algorithms due to its independent current sensing capabilities. Operating voltage spans from +8 to +48 Vdc, enabling use in a broad range of industrial, robotics, and automation systems.

The driver can deliver a peak output current of 2.8 A and a continuous current of 1.4 Arms. It includes non-dissipative over-current detection, cross-conduction and over-temperature protection to enhance reliability and safeguard the motor and electronics.

For motor current feedback, users can select between 3-shunt or 1-shunt sensing circuits. The board incorporates connectors for Hall or encoder sensors, allowing precise speed and position feedback essential for advanced motor control.

Additional features include a potentiometer for manual speed adjustments, user LEDs for status indication, and screw terminals that simplify connection of motor signals and power supply. ST morpho connectors and Arduino Uno R3 shield headers provide ease of integration with host MCU boards, broadening compatibility.

Measuring 70 x 66 mm, this compact evaluation board supports ST’s Six Step and FOC control algorithms and suits applications in industrial automation, robotics, educational development kits, and hobbyist projects focused on precision motor control.

The three-phase BLDC driver is optimized for six-step and FOC control algorithms. Operates with a voltage range from 8 to 48 Vdc for versatile applications. Supports up to 2.8 A peak output current with 1.4 Arms continuous rating.

Includes built-in protections: over-current detection, cross-conduction, and over-temperature protection. Features selectable 3-shunt or 1-shunt motor current sensing configuration. Equipped with connectors for Hall sensors or encoders and a potentiometer for manual speed control.

User-friendly design with LEDs, screw terminals, and ST morpho connectors for easy MCU integration. Compact board dimensions measuring 70 x 66 mm suitable for embedded motor control setups. Explore more STMicroelectronics products and Motor Driver Boards on EnvMart for your electronic component and embedded system needs.
