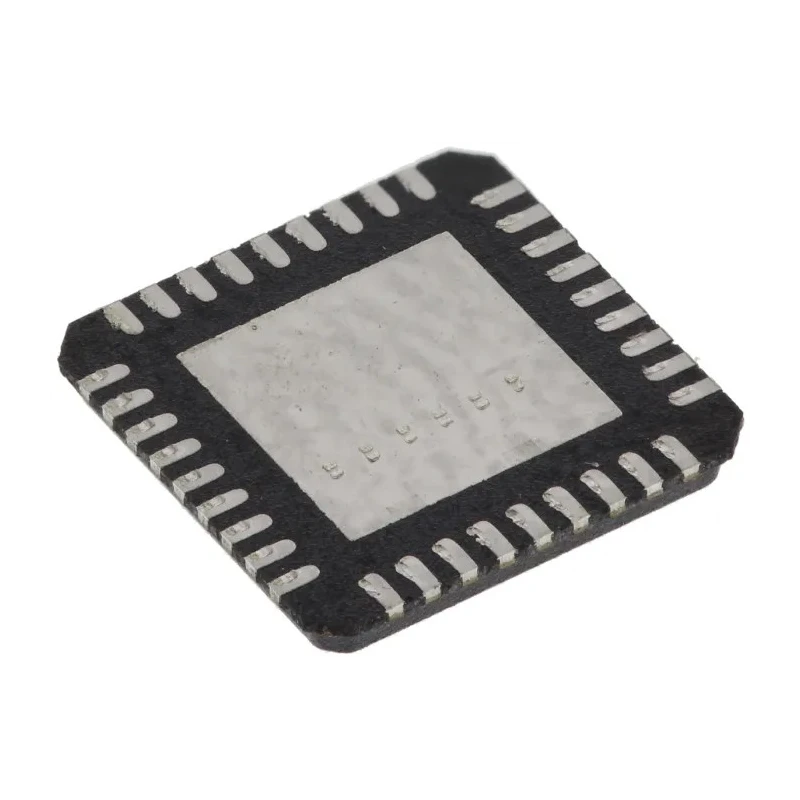

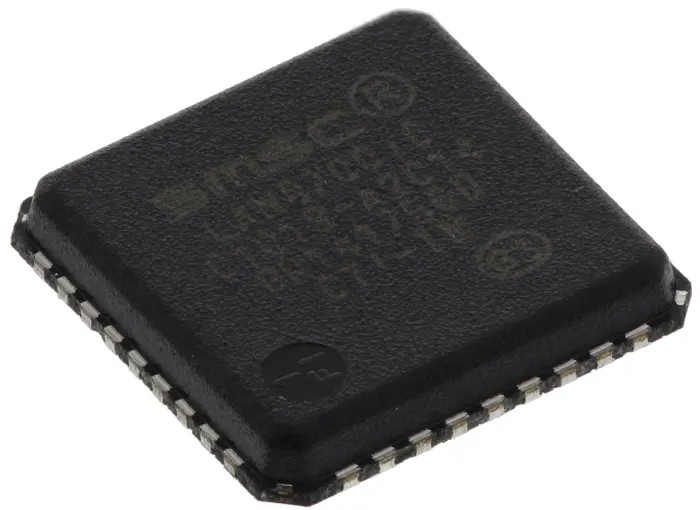

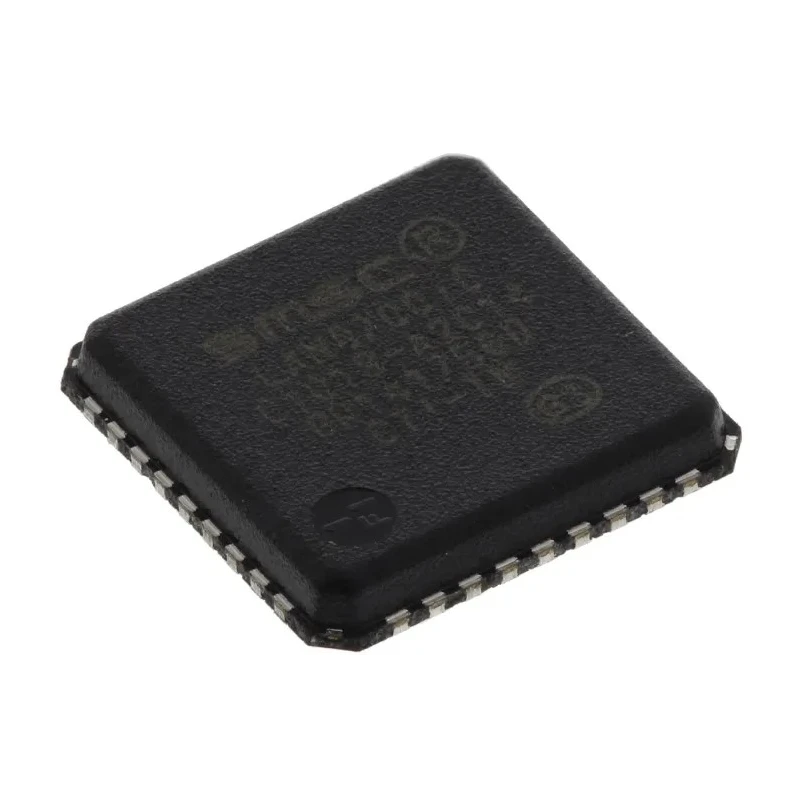

Microchip 36-Pin QFN Ethernet Transceiver 3.3 V 100 Mbps RMII MII LAN8700IC-AEZG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 900μm |
| Length | 6mm |
| Model | LAN8700IC-AEZG |
| Width | 6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Communication Mode | RMII, MII |
| Interface Type | RMII, MII |
| Standards/Approvals | EN/IEC61000-4-2, Lead (Pb) Free RoHS |
| Pin Count | 36 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 39mA |
| Maximum Data Rate | 100Mbps |
| Standard Supported | IEEE 802.3, IEEE 802.3u, ANSI X3.263 TP-PMD |
Key Features
- Supports IEEE 802.3, IEEE 802.3u, and ANSI X3.263 TP-PMD standards.
- Surface mount QFN package with 36 pins for compact PCB integration.
- Operates in temperature range from -40°C to 85°C for industrial environments.
- Supply voltage range from 3.3V minimum up to 3.6V maximum ensures stable performance.
- Designed for efficient power consumption with typical supply current of 39mA.
- Conforms to EN/IEC61000-4-2 with lead-free RoHS compliance for environmental safety.
- Automotive standard is not supported, ideal for general embedded and networking applications.
Product Description
Microchip LAN8700IC-AEZG is a high-performance 36-pin QFN Ethernet transceiver supporting 10/100 Mbps data rates with RMII and MII interface compatibility. Operating at a nominal 3.3 V supply with a maximum rating of 3.6 V, it is suitable for embedded system designs requiring reliable Ethernet communication.
This transceiver supports multiple IEEE Ethernet standards including IEEE 802.3 and 802.3u, enabling seamless network integration and data transmission efficiency at speeds up to 100 Mbps.
The device features a compact 6 mm by 6 mm QFN package with 36 pins, optimized for surface mount technology on printed circuit boards, conserving space in high-density applications. Its operating temperature range of -40°C to 85°C suits industrial and commercial environments requiring robust performance.
With a low supply current typical of 39mA, this Ethernet transceiver balances power efficiency with performance. The LAN8700IC-AEZG also meets EN/IEC61000-4-2 surge and electrostatic discharge standards and RoHS lead-free compliance, aligning with environmental and safety protocols.
Though not automotive certified, it is ideal for a variety of industrial, networking, and embedded applications requiring stable 10/100 Mbps Ethernet interface solutions. Supports IEEE 802.3, IEEE 802.3u, ANSI X3.263 TP-PMD standards.
Surface mount QFN 36-pin package for compact PCB layouts. Operates over a wide temperature range (-40°C to 85°C). Power supply voltage from 3.3 V to 3.6 V. Low power consumption with 39mA supply current. 6 mm length, 6 mm width, 900 μm height package dimensions.
Lead-free RoHS compliant and EN/IEC61000-4-2 certified for ESD protection. Suitable for industrial, laboratory, and commercial Ethernet communication systems.
This Ethernet Transceiver is a dependable choice for engineers designing industrial automation, networking devices, and communication modules. Explore our comprehensive catalog for more semiconductor solutions and advanced electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LAN8700IC-AEZG supports a maximum data rate of 100 Mbps.
It operates within a temperature range of -40°C to 85°C, suitable for industrial environments.
The device requires a supply voltage between 3.3 V and 3.6 V for stable performance.
This model comes in a compact 36-pin QFN package, measuring 6 mm by 6 mm.
It supports RMII and MII communication modes, providing flexibility for various applications.
The typical supply current for the LAN8700IC-AEZG is 39 mA, ensuring efficient power consumption.
It conforms to IEEE 802.3, IEEE 802.3u, and ANSI X3.263 TP-PMD standards for Ethernet communication.
Yes, the LAN8700IC-AEZG is lead-free RoHS compliant, ensuring it meets environmental safety standards.
The height of the QFN package for this transceiver is 900 μm.
No, this model is not certified for automotive applications; it is intended for general embedded and networking applications.
The LAN8700IC-AEZG is manufactured in India.
It is designed for surface mounting, making it suitable for compact PCB layouts.
