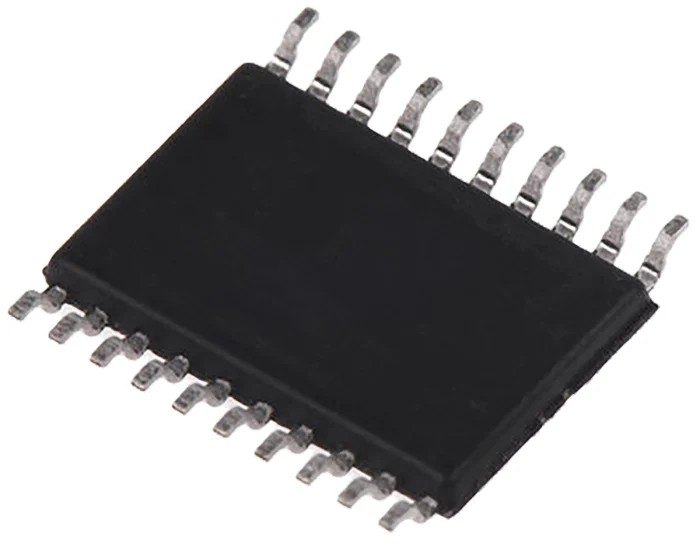

STMicroelectronics Logic Level Translator, Bi-Directional 20-Pin TSSOP, 1 Element, 1.71V - 5.5V Supply, 15ns ST2378ETTR
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 6.6mm |
| Model | ST2378ETTR |
| Mount Type | Surface |
| Output type | Open Drain, Totem Pole |
| Series | ST2378 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | Translator |
| Logic Function | Translator |
| Minimum Supply Voltage | 1.71V |
| Maximum High Level Output Current | 25mA |
| Maximum Propagation Delay Time @ CL | 15ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | -25mA |
| Translation | Data Transfer From Low Voltage to High Voltage |
Key Features
- Supports data transfer from low voltage to high voltage with high reliability.
- Bi-directional operation enables flexible voltage level shifting.
- Maximum propagation delay of 15 nanoseconds for fast signal transitions.
- Operates within a supply voltage range of 1.71V to 5.5V.
- Package type is surface-mount TSSOP suitable for compact PCB layouts.
- Open Drain and Totem Pole output types ensure versatile interfacing options.
- Specifically designed for electronic components and semiconductor applications.
- Operating temperature range from -40°C to 85°C for robust performance.
Product Description
STMicroelectronics ST2378ETTR Logic Level Translator is a high-performance semiconductor device designed for bi-directional voltage translation between low voltage and high voltage domains. This compact 20-pin TSSOP surface-mounted device supports a single logic element per chip, enabling efficient data transfer in electronic circuits that require precise level shifting.
Operating within a voltage supply range of 1.71 volts minimum to 5.5 volts maximum, it ensures compatibility with a variety of power environments typically found in electronic and industrial applications. The maximum propagation delay time is 15 nanoseconds, offering rapid signal response suitable for high-speed digital systems.
The output supports both open drain and totem pole types, making the device flexible for different interfacing scenarios. Its bi-directional logic function allows seamless voltage level translation without requiring additional external circuitry. The device functions reliably across an operating temperature range from -40°C up to 85°C, suited for demanding environmental conditions in industrial, automotive, and instrumentation applications.
With a compact length of 6.6mm and height of 1.05mm, the TSSOP package minimizes PCB footprint while delivering excellent performance. Manufactured in the Philippines, this component adheres to strict quality controls ensuring consistent reliability.
Supports data transfer from low to high voltage with high accuracy and speed. Bi-directional voltage level translator facilitates diverse circuit designs. Compact surface mount TSSOP package allows space-saving PCB layout.
Wide temperature operating range ensures stability in harsh environments. Versatile output types including open drain and totem pole. Ideal for industrial, electronic components, semiconductor, and PCB integration applications.
This product is essential for engineers and designers needing precise voltage level translation in embedded systems, power management, and digital logic circuits. Explore the full range of Translator ICs at EnvMart for complementary devices and peripherals.
