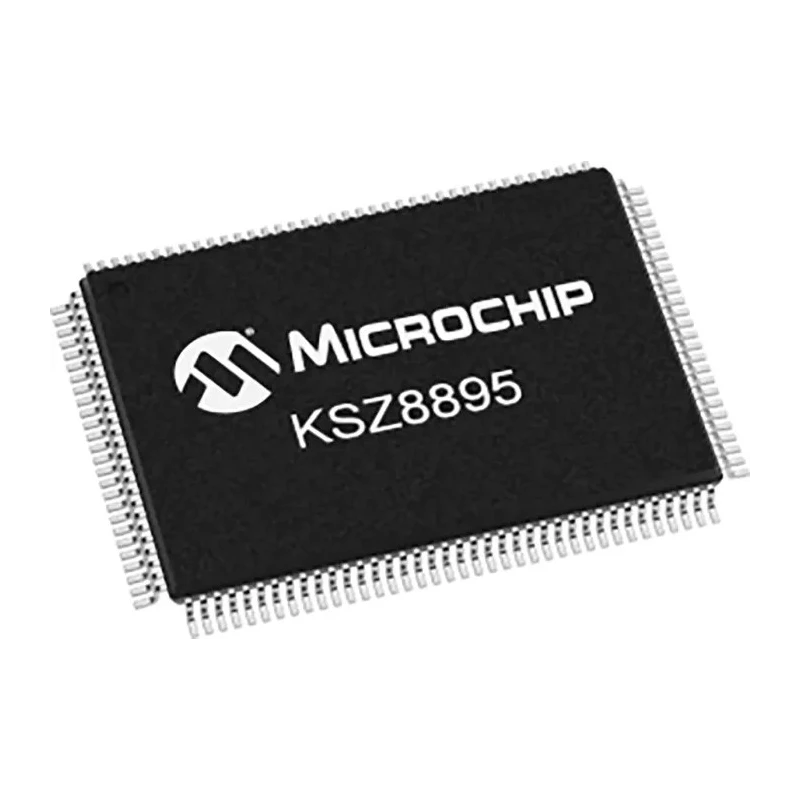

Microchip 128-Pin PQFP 5-Port Layer 2 Managed Switch IC 3.3 V 100 Mbps KSZ8895MQXCA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 3.4mm |
| Length | 20mm |
| Model | KSZ8895MQXCA |
| Width | 14mm |
| Mount Type | Surface |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 70°C |
| Package Type | PQFP |
| Sub Type | Switch |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet Switch |
| Pin Count | 128 |
| Maximum Supply Voltage | 3.3V |
| Maximum Data Rate | 100Mbps |
| Standard Supported | IEEE 802.1Q |
Key Features
- Supports IEEE 802.1Q VLAN standard with up to 128 active VLAN groups.
- Features static MAC table with support for 32 entries.
- Includes serial management interfaces MDC/MDIO for PHY and register access.
- High-speed SPI interface supports up to 25MHz clock frequency.
- Offers programmable QoS with 802.1p and DiffServ-based packet prioritization.
- Integrates five 10/100 Ethernet ports with advanced mixed-signal PHY technology.
- Operates reliably over temperature range 0°C to 70°C.
- Compact PQFP package measures 20mm length, 14mm width, and 3.4mm height.
Product Description
Microchip KSZ8895MQXCA is a high-integration, 5-port Layer 2 managed switch IC designed for Ethernet applications, operating at 3.3 V and supporting data rates up to 100 Mbps. Packaged in a 128-pin PQFP, it is ideal for compact network devices requiring efficient switching capabilities.
This switch IC supports comprehensive VLAN management with up to 128 active VLAN groups and full-range 4096 VLAN IDs. It features static MAC table support with 32 entries and offers programmable VLAN tagging options per port to enhance network segmentation and security.
Management interfaces include standard MDC/MDIO serial interfaces for PHY and register access, allowing convenient system control. Additionally, it supports a high-speed SPI interface up to 25 MHz and an I2C master interface for flexible configuration.
Quality of Service (QoS) is robust, with per-port 802.1p and DiffServ based prioritization and programmable weighted fair queuing for optimal traffic management.
Its internal design integrates five 10/100 Mbps Ethernet MACs and PHYs, employing patented mixed-signal technology to ensure reliability and performance. The compact PQFP package dimensions (20mm × 14mm × 3.4mm) facilitate integration into dense PCB layouts.
The IC operates over a temperature range of 0°C to 70°C and is suitable for various industrial, commercial, and network applications requiring managed Ethernet switching. Country of origin is Taiwan, Province Of China. Supports IEEE 802.1Q VLANs with up to 128 active groups.
Serial MDC/MDIO management interface for PHYs and registers. High-speed SPI and I2C interfaces for advanced configuration. Per port QoS prioritization with 802.1p and DiffServ support. Integrated five 10/100 Ethernet MACs and PHYs with patented technology.
Compact PQFP package measuring 20mm by 14mm by 3.4mm. Operates within 0°C to 70°C temperature range. Designed to reduce system cost effectively. Explore more high-performance semiconductor Switch ICs for networking on EnvMart to meet diverse application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 100 Mbps.
It integrates five 10/100 Ethernet ports.
The operating temperature range is from 0°C to 70°C.
It is packaged in a compact 128-pin PQFP format.
It supports the IEEE 802.1Q VLAN standard.
The height of this model is 3.4 mm.
It includes serial management interfaces MDC/MDIO for PHY and register access, as well as a high-speed SPI interface.
The package measures 14 mm in width and 20 mm in length.
It supports up to 128 active VLAN groups.
It offers programmable QoS with 802.1p and DiffServ-based packet prioritization.
The country of origin is Taiwan, Province of China.
This model has a pin count of 128.
