Microchip 2 Port 100 Mbps Ethernet Switch IC 1.8V to 3.3V XVTQFP Package LAN9311I-NZW

Free Delivery in India | Lowest Global Shipping Charges

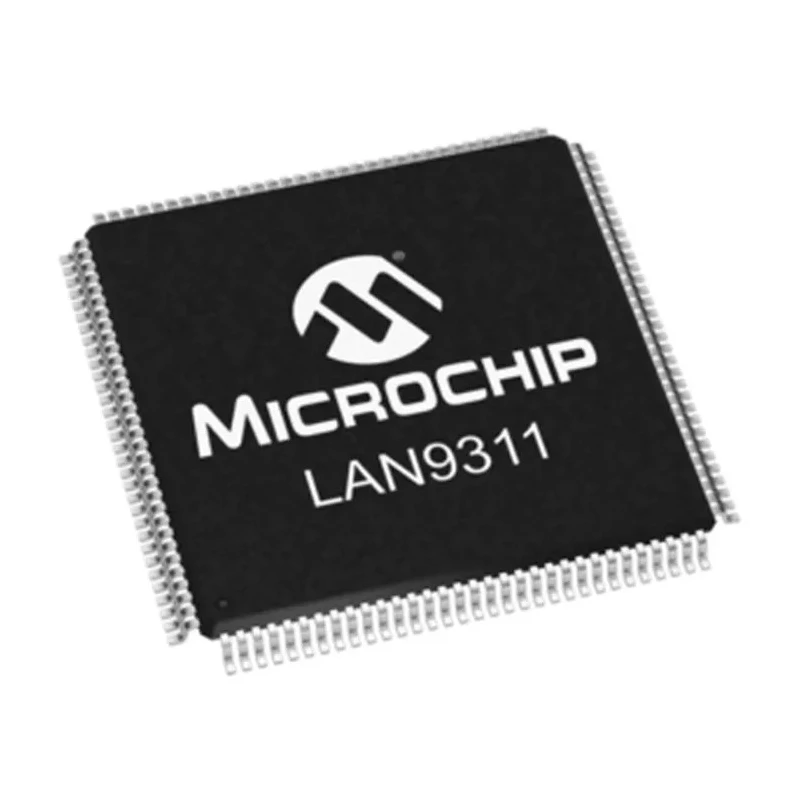

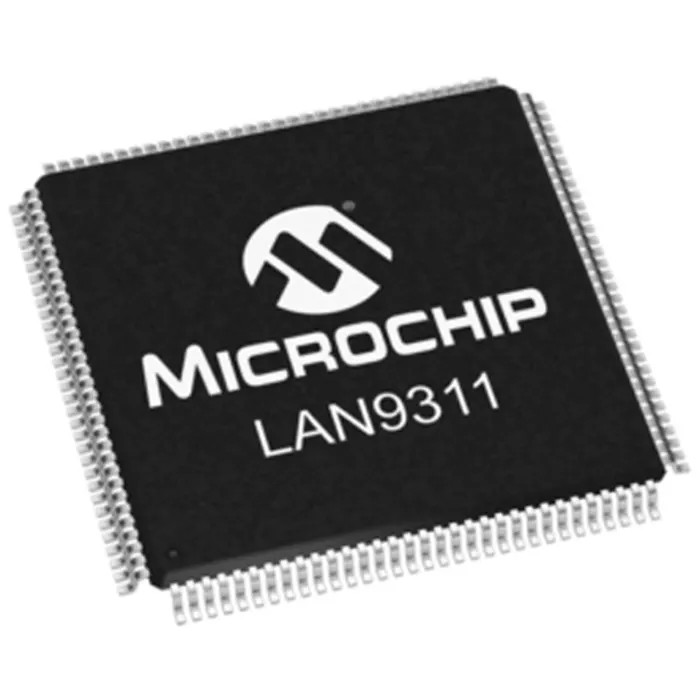

Microchip 2 Port 100 Mbps Ethernet Switch IC 1.8V to 3.3V XVTQFP Package LAN9311I-NZW

Name: Microchip 2 Port 100 Mbps Ethernet Switch IC 1.8V to 3.3V XVTQFP Package LAN9311I-NZW
Brand: Microchip
SKU: 378463
Price: 22.34 USD
Availability: InStock



Category Switch IC Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.2mm
Length	14.2mm
Model	LAN9311I-NZW
Width	14.2mm
Mount Type	Surface
Number Of Ports	2
Maximum Operating Temperature	85°C
Package Type	XVTQFP
Sub Type	Switch
Minimum Operating Temperature	-40°C
Interfaces	Ethernet Switch with VLAN, QoS Packet Prioritization, Rate Limiting, IGMP Monitoring and Management functions
Communication Mode	Full Duplex/Half Duplex
Pin Count	128
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Supply Current	185mA
Maximum Data Rate	100Mbps
Loopback Mode	Internal
Standard Supported	IEEE 802.1Q

Key Features

Operates with supply voltages from 1.8 V to 3.3 V.
Comes in a 128-pin XVTQFP surface mount package.
Supports VLAN, QoS packet prioritization, rate limiting, and IGMP monitoring functions.
Includes integrated IEEE 1588 hardware time stamp unit for precise time management.
Complies with IEEE 802.3 10BASE-T/100BASE-T Ethernet and 802.1D/Q network standards.
Features 2 integrated 10/100 PHY transceivers with high-performance auto-MDIX support.
Designed for embedded applications with a 16-bit host bus interface.
Operating temperature range from -40°C to 85°C.

Product Description

Microchip LAN9311I-NZW is a highly integrated 2 port Ethernet Switch IC designed to combine the core functionalities of a 10/100 Mbps switch into a compact 128-pin XVTQFP package. It supports data rates up to 100 Mbps with full duplex and half duplex communication modes, making it suitable for various embedded networking applications.

This Switch IC operates over a supply voltage range of 1.8 V to 3.3 V, ensuring compatibility with low voltage embedded systems. The device includes advanced features such as VLAN support, QoS packet prioritization, rate limiting, and IGMP monitoring, enabling efficient network traffic management.

The LAN9311I-NZW integrates two 10/100 PHY transceivers with high-performance auto-MDIX capability, simplifying connection requirements and enhancing flexibility. A hardware IEEE 1588 time stamp unit is incorporated for precise timing synchronization in networked systems.

Designed for surface mount applications, the device has a compact footprint with a 14.2 mm square outline and a low profile of 1.2 mm. Its operating temperature range of -40°C to 85°C makes it suitable for industrial and commercial environments.

This IC interfaces easily with most 16-bit embedded CPUs via a host bus interface, simplifying integration into existing systems. Power management features are included to optimize consumption in embedded networking devices.

Supports VLAN, QoS packet prioritization, and IGMP monitoring for advanced network functionality. Compliant with IEEE 802.3 and 802.1D/Q standards ensuring wide compatibility. High performance switching fabric and buffer management on-board.

Includes integrated PHY transceivers with jack auto-negotiation and HP Auto-MDIX support. Compact 128-pin XVTQFP surface mount package for space-constrained designs. Operating voltage range from 1.8 V to 3.3 V suits modern low voltage systems.

Temperature rating -40°C to 85°C enables use in harsh environments. Typical supply current is 185 mA during data operation. Applications include industrial Ethernet switches, embedded networking devices, and communication systems requiring compact high performance network interfaces.
