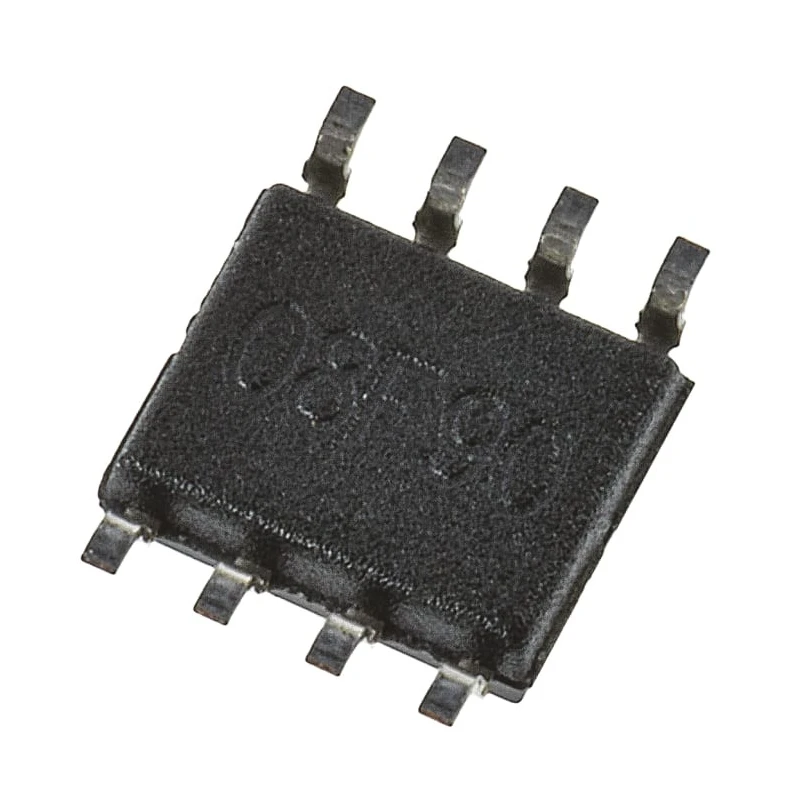

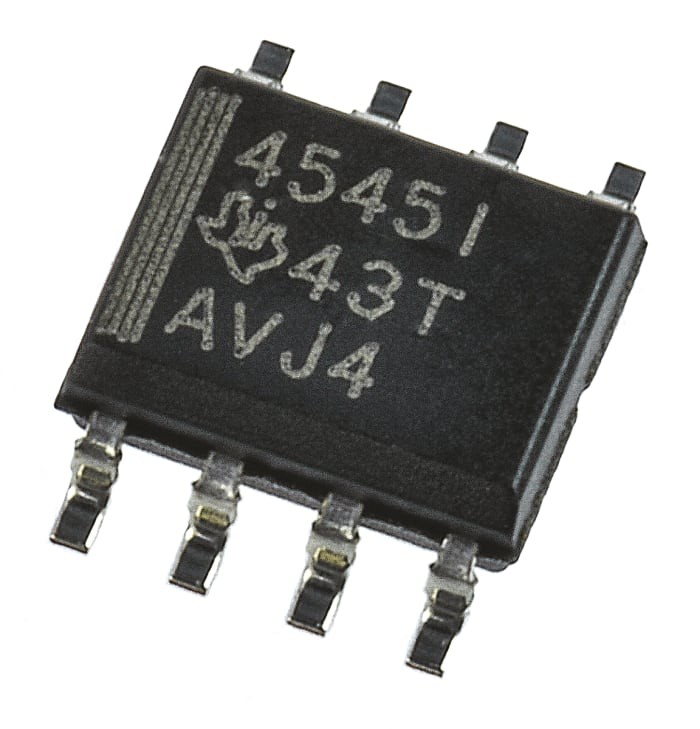

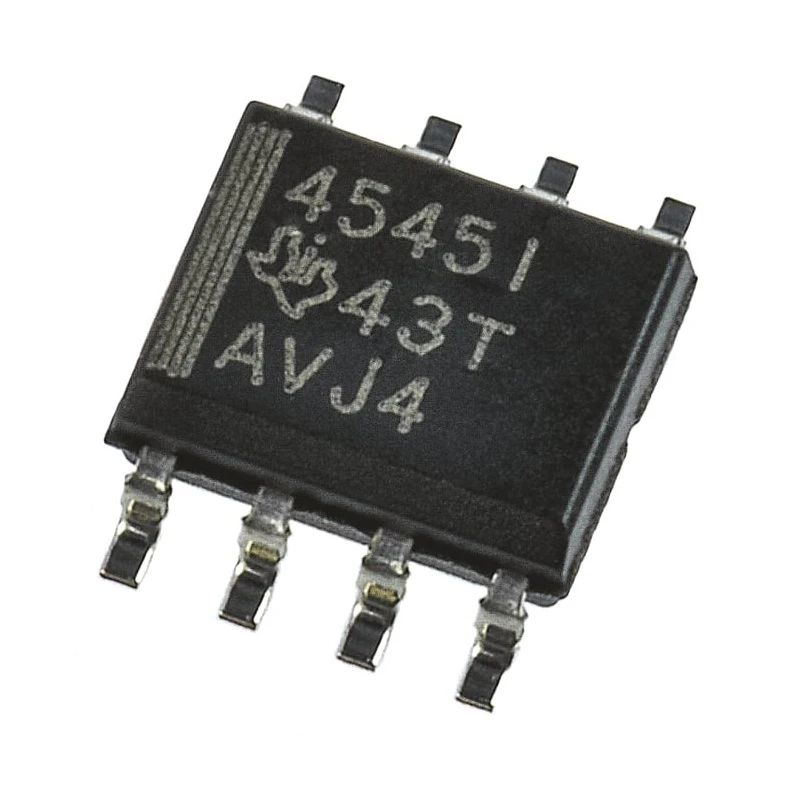

Texas Instruments 1 Channel 16 Bit SAR ADC 200 ksps, SPI Interface, 8-Pin SOIC Package TLC4545ID
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Height | 1.44mm |
| Length | 5.01mm |
| Model | TLC4545ID |
| Mount Type | Surface |
| Sampling rate | 200ksps |
| Series | TLC4545 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- The device operates over a wide temperature range from -40°C to 85°C.
- It features a single ADC channel with SPI interface for efficient digital communication.
- The ADC supports a supply voltage range from 5V to 5.5V.
- The compact 8-pin SOIC package measures 5.01mm in length and 1.44mm in height.
- This ADC is optimized for voltage input signals and surface mounting applications.
- The TLC4545 series provides high precision 16-bit resolution conversion suitable for industrial and embedded systems.
- Its SAR architecture enables a balance of speed and accuracy for analog-to-digital conversion.
- Ideal for use in electronic components, power and connectors, instrumentation, and control systems.
Product Description
The Texas Instruments TLC4545ID is a high precision, 16-bit single-channel successive approximation register analogue-to-digital converter designed for robust performance in industrial, laboratory, and embedded applications.
Operating with a 200 ksps sampling rate, the device supports voltage input signals and provides 16-bit resolution output via SPI interface in an easy-to-mount 8-pin SOIC package with dimensions 5.01mm in length and 1.44mm in height.
This ADC is designed to operate reliably in harsh conditions with a temperature range from -40°C to 85°C and supply voltage between 5V and 5.5V, making it suitable for power electronics, measurement instrumentation, and control design.
Its SAR architecture ensures precise analogue-to-digital conversion, balancing conversion speed and accuracy for demanding applications.
The TLC4545ID is surface mount compatible and comes with single ADC channel functionality, without automotive certification, making it ideal for standard industrial and consumer electronics integration.
The device features a 16-bit resolution for detailed signal measurement. The 200 ksps sampling rate allows fast data acquisition. Compatible with SPI interface protocols for simplified integration. Compact 8-pin SOIC package facilitates low footprint PCB designs.
Wide -40°C to 85°C operating temperature supports diverse environments. Supply voltage range 5V to 5.5V enables consistent operation. SAR architecture optimized for accurate sampling. Single ADC channel suited for focused measurement needs.
Ideal for use in electronic components, power & connectors, semiconductor devices, and analogue to digital converter applications. Explore more products in the Analogue to Digital Converters category to find complementary devices for your engineering and industrial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this model is 16 bits, providing detailed signal measurement.
The maximum supply voltage for this unit is 5.5V.
It operates over a wide temperature range from -40°C to 85°C.
The sampling rate of this model is 200 ksps, allowing for fast data acquisition.
This unit supports voltage input signals.
The package type is SOIC, measuring 5.01mm in length and 1.44mm in height.
This model features a single ADC channel.
It uses an SPI interface for efficient digital communication.
Yes, this unit is optimized for surface mounting applications.
It utilizes a successive approximation register (SAR) architecture, balancing speed and accuracy.
The country of origin for this model is India.
It is suitable for use in industrial, laboratory, and embedded applications such as power electronics and measurement instrumentation.
