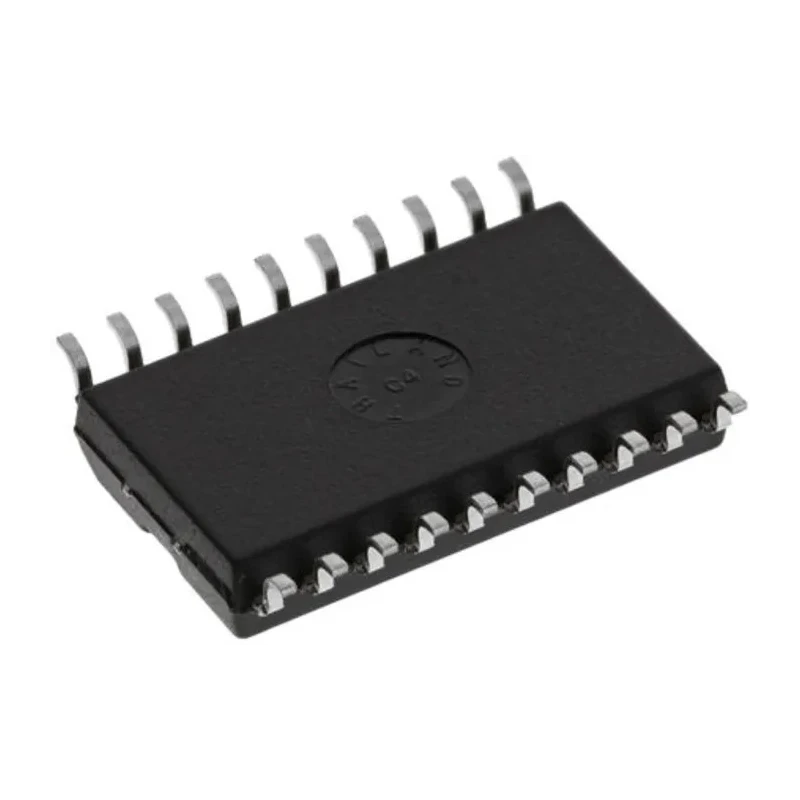

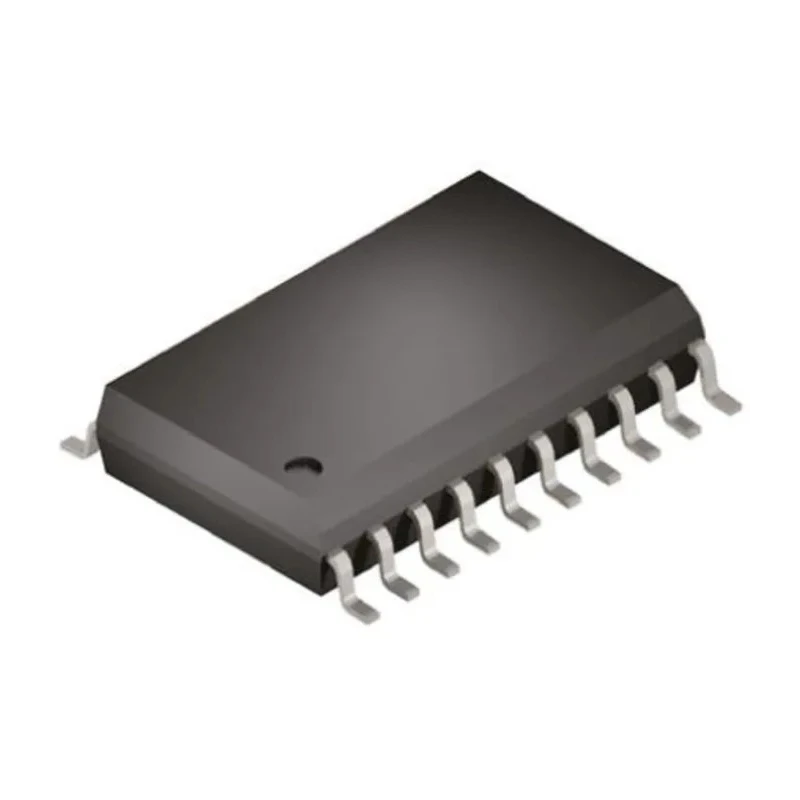

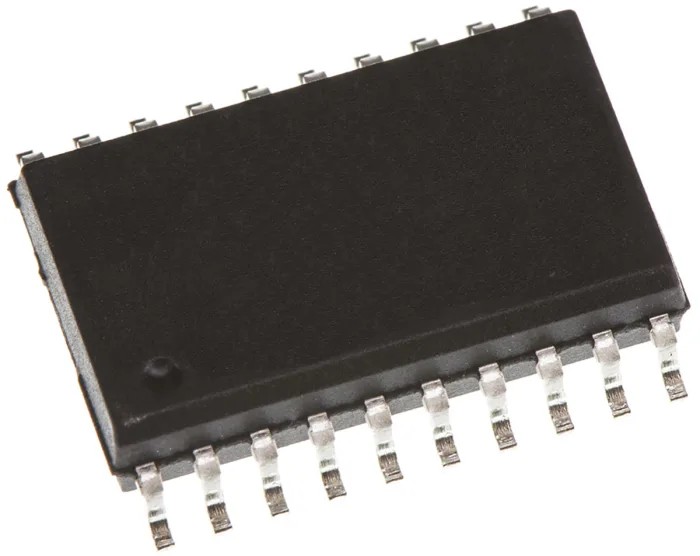

onsemi Voltage Level Shifter Voltage Translator 3 Elements SOIC Surface Mount Uni-Directional 2.37V to 3.8V MC100EP91DWG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.4mm |
| Length | 12.95mm |
| Model | MC100EP91DWG |
| Mount Type | Surface |
| Output type | NECL |
| Series | MC100EP91 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 3 |
| Maximum Supply Voltage | 3.8V |
| Logic Function | Voltage Translator |
| Minimum Supply Voltage | 2.37V |
| Maximum High Level Output Current | 100mA |
| Maximum Propagation Delay Time @ CL | 600ps |
| Direction Type | Uni-Directional |
| Maximum Low Level Output Current | 50mA |
| Translation | LVPECL to NECL, LVCMOS to NECL, HSTL to NECL, LVTTL to NECL, CML to NECL, LVDS to NECL |
Key Features
- This device supports a supply voltage range of 2.37V to 3.8V, ensuring broad compatibility.
- It features three elements per chip with a 20-pin SOIC surface mount package for compact board integration.
- Maximum propagation delay time of 600ps at CL is suitable for high-speed signal translation.
- Outputs support NECL logic type with high and low-level output currents of 100mA and 50mA respectively.
- Operating temperature range is from -40°C to 85°C for reliable industrial usage.
- The device does not include automotive standards or additional certifications.
- Its compact size includes a height of 2.4mm and length of 12.95mm for space-efficient design.
- Intended for logic level translation applications in electronic components and industrial devices.
Product Description
onsemi MC100EP91DWG is a highly versatile voltage level shifter and translator designed to interface between various logic families such as LVPECL, LVCMOS, HSTL, LVTTL, CML, and LVDS to NECL outputs. It supports uni-directional signal translation making it suitable for many electronic circuit designs requiring clean and efficient level shifting.
Featuring a surface mounting SOIC package with 20 pins, and containing three translator elements per chip, this IC accommodates compact PCB layouts while providing high integrity signal conversion. The maximum propagation delay of 600ps ensures high-speed operation, critical for modern digital communications and signal processing.
The device operates reliably across industrial temperature ranges from -40°C to 85°C and offers a supply voltage range of 2.37 to 3.8 volts with low power consumption. It handles significant output drive currents, with a maximum low-level output current of 50mA and high-level output current of 100mA, guaranteeing robust performance with various loads.
The compact physical dimensions of 2.4mm height and 12.95mm length aid in space-saving PCB designs. It lacks automotive standard certification but is highly suitable for industrial, manufacturing, electronic component, and laboratory applications requiring level shifting across multiple logic voltage domains.
This voltage level shifter efficiently translates a variety of input logic levels to NECL output levels. Its uni-directional design simplifies integration for signal direction control. Compact SOIC packaging supports advanced surface mount technology.
Wide operating temperature supports harsh industrial environments. High drive currents support diverse load requirements. Minimal propagation delay caters to high-frequency digital systems. Compatible with many logic families for versatile use cases.
Essential component in digital circuit design, testing, and manufacturing setups. Explore more semiconductor components and voltage Translator ICs at EnvMart for comprehensive industrial and electronic applications.
