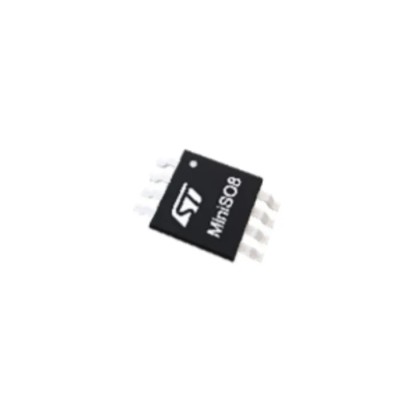

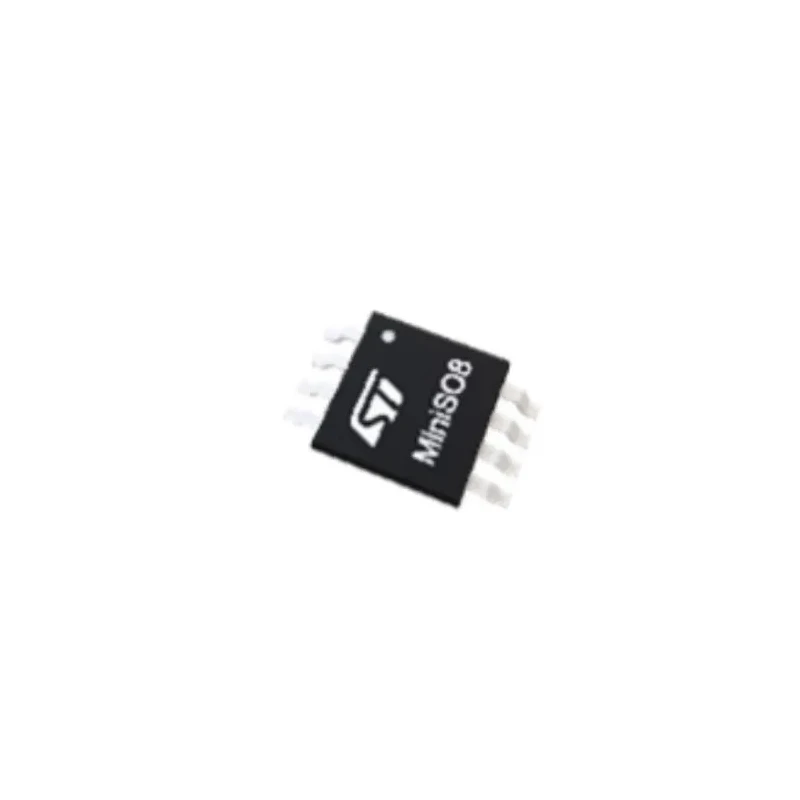

STMicroelectronics Current Sensing Amplifier Dual Channel 2.7-18V Supply 5mA MiniSO8 TSC200IST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | TSC200IST |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniSO8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| CMRR - Common Mode Rejection Ratio | 120dB |
| Amplification gain | 20 V/V |
Key Features
- Wide common mode voltage range supports -16 to +80 volts.
- Amplification gain fixed at 20 V/V for precise current detection.
- Includes internal 0.6 V voltage reference for stable threshold setting.
- Features an open-drain comparator with output latch capability.
- Industrial temperature range operation from -40°C to 125°C.
- Surface mount package type MiniSO8 with 8 pins ensures compact PCB footprint.
- High common mode rejection ratio (CMRR) of 120 dB enhances signal accuracy.
- Suitable for applications requiring high accuracy current monitoring.
Product Description
STMicroelectronics TSC200IST is a high-accuracy dual-channel current sensing amplifier designed for industrial and commercial electronics applications. Operating over a supply voltage range of 2.7 to 18 volts and drawing only 5mA supply current, it efficiently senses current via a shunt resistor across a wide common mode voltage range from -16 to +80 volts.
This device integrates an amplification gain of 20 V/V to provide an analog voltage output proportional to the sensed current. An internal 0.6 V voltage reference simplifies setting precise switching thresholds through an external resistor divider. Moreover, the included open-drain comparator with output latch enhances signal detection and fault indication capabilities.
The amplifier is housed in a compact MiniSO8 surface mount package with 8 pins, making it ideal for space-constrained PCB designs. It supports operation within a broad industrial temperature range of -40°C to 125°C, making it highly reliable for harsh environments.
The TSC200IST achieves a high common mode rejection ratio (CMRR) of 120 dB, minimizing noise and interference effects, and ensuring stable and accurate current measurement. Typical applications include industrial current monitoring, power management, and electronic load sensing in automotive, manufacturing, and instrumentation systems.
Wide common mode voltage range from -16 to +80 V. Low supply current consumption of 5 mA. Fixed gain of 20 V/V for current sensing accuracy. Internal 0.6 V reference voltage for threshold setting. Open-drain comparator with latch function for reliable switching.
Surface mount MiniSO8 package with 8 pins for compact designs. Operating temperature range from -40°C to 125°C for industrial use. High CMRR of 120 dB for noise rejection.
This Current Sensing Amplifier is excellent for industrial, laboratory, manufacturing, and automotive electronics requiring precise current measurement and efficient PCB usage. For optimized electronic circuit design, consider this STMicroelectronics TSC200IST offering reliable performance and accuracy.
Explore further in the EnvMart Electronics & Electricals categories for related semiconductor amplifiers from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range of 2.7 to 18 volts.
It supports a wide common mode voltage range from -16 to +80 volts.
The amplification gain is fixed at 20 V/V, ensuring precise current detection.
The maximum operating temperature is 125°C, suitable for industrial applications.
This unit features dual channels for enhanced current sensing capabilities.
It draws a low supply current of 5 mA, making it efficient for various applications.
It is housed in a MiniSO8 surface mount package with 8 pins, ideal for compact PCB designs.
The TSC200IST achieves a high CMRR of 120 dB, enhancing signal accuracy by minimizing noise.
The minimum operating temperature is -40°C, allowing for reliable performance in harsh environments.
Yes, it includes an internal 0.6 V voltage reference for stable threshold setting.
It is suitable for industrial current monitoring, power management, and electronic load sensing in various sectors.
The height is 1.75 mm and the length is 4.9 mm, making it compact for PCB integration.
