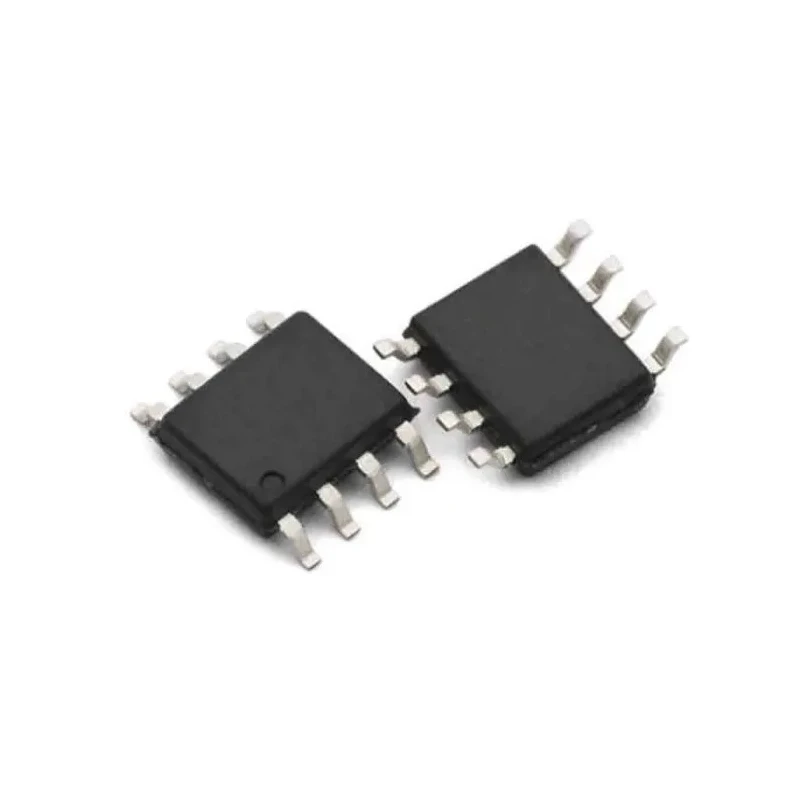

onsemi High-Current Gate Driver 4A Output, 8-Pin SOIC Package, 20V Max, AEC-Q100, NCV5705BDR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 5mm |
| Model | NCV5705BDR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCD5705B |
| Output Current | 4A |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Number of outputs | 5 |
| Rise Time | 9.2ns |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 5V |
| Number of Drivers | 1 |
| Fall Time | 7.9ns |
| Driver Type | General Purpose |
Key Features
- Delivers 4A output current for efficient gate drive applications.
- Supports supply voltage range from 5V to 20V for flexible integration.
- Features fast fall and rise times of 7.9ns and 9.2ns respectively, enabling rapid switching.
- Compliant with AEC-Q100 automotive standard for reliability and ruggedness.
- Compact SOIC 8-pin package with surface mount for easy PCB integration.
- Operates up to 150°C maximum temperature, ideal for demanding environments.
- Suitable for IGBT and high-power device driving in traction inverters, DC-DC converters, and PTC heaters.
Product Description
onsemi NCV5705BDR2G is a high-current, high-performance gate driver IC engineered for robust operation in power management, automotive, and industrial control systems. Featuring a 4A output current and broad supply voltage compatibility from 5V to 20V, it serves as a versatile solution for driving IGBT and MOSFET gates in demanding power applications.
Its fast propagation characteristics, with fall and rise times of 7.9ns and 9.2ns respectively, make it ideal for applications requiring rapid and precise switching. The device supports a maximum operating temperature of 150°C, ensuring functionality in high-stress environments such as traction inverters, high voltage DC-DC converters, and PTC heaters.
Delivers 4A output current for efficient gate drive applications. Supports supply voltage range from 5V to 20V for flexible integration. Features fast fall and rise times of 7.9ns and 9.2ns respectively, enabling rapid switching.
Compliant with AEC-Q100 automotive standard for reliability and ruggedness. Compact SOIC 8-pin package with surface mount for easy PCB integration. Operates up to 150°C maximum temperature, ideal for demanding environments.
Suitable for IGBT and high-power device driving in traction inverters, DC-DC converters, and PTC heaters.
The NCV5705BDR2G belongs to the NCD5705B series and is designed with low output impedance, providing enhanced IGBT driving capability. Its short propagation delay with accurate matching ensures optimal performance and compatibility with critical automotive subsystems and auxiliary circuits.
Industrial and laboratory use cases include automotive control, power conversion systems, motor drives, and high-reliability inverter circuits. Its surface-mount SOIC package supports rapid integration into PCB layouts for manufacturing and assembly operations.
Explore the complete onsemi Gate Drivers range in the Semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an output current of 4A, making it suitable for efficient gate drive applications.
It supports a supply voltage range from 5V to 20V, allowing for flexible integration in various applications.
The rise time is 9.2ns and the fall time is 7.9ns, enabling rapid switching for high-performance applications.
It operates at a maximum temperature of 150°C, making it suitable for demanding environments.
This gate driver features one output, designed for general-purpose applications.
It comes in a compact SOIC 8-pin package, which is surface mount for easy PCB integration.
Yes, it is compliant with the AEC-Q100 automotive standard, ensuring reliability and ruggedness for automotive applications.
This model belongs to the NCD5705B series, which is designed for robust performance in power management applications.
It is designed for driving IGBT and high-power devices, making it suitable for applications like traction inverters and DC-DC converters.
The dimensions are 1.75mm in height, 5mm in length, and 4mm in width.
It uses a surface mount type, facilitating easy integration into PCB layouts for manufacturing.
It is suitable for applications in automotive control, power conversion systems, motor drives, and high-reliability inverter circuits.
