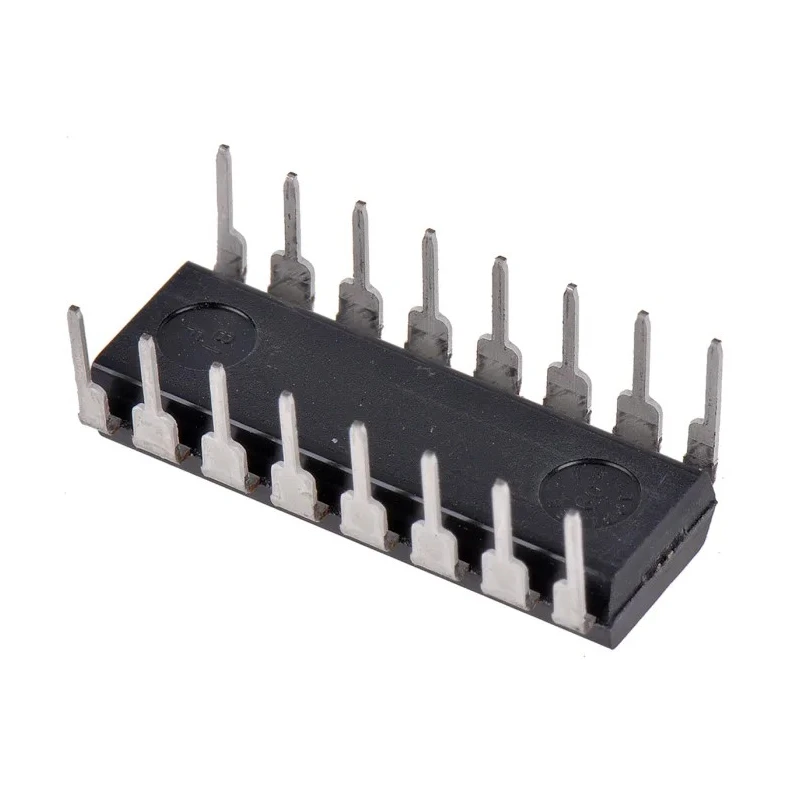

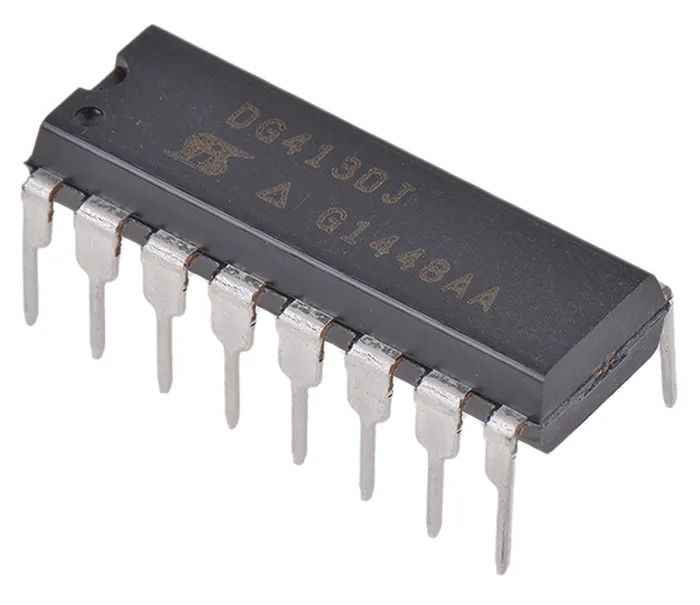

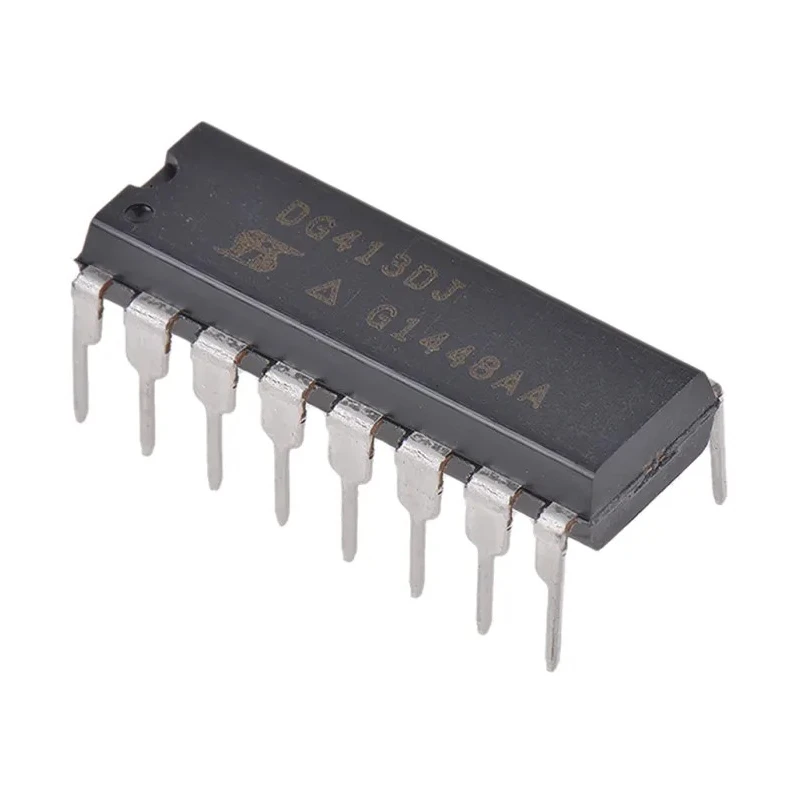

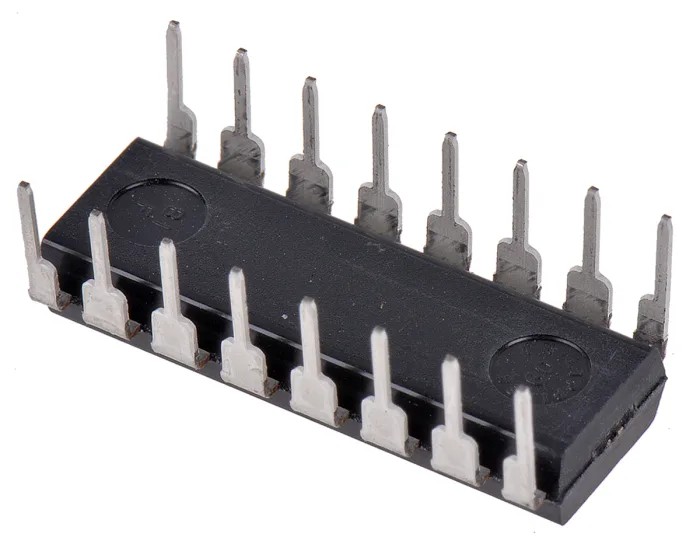

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin PDIP DG413DJ-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4.45mm |
| Length | 19.43mm |
| Model | DG413DJ-E3 |
| Width | 7.87mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | DG413 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Maximum On State Resistance | 100Ω |
Key Features
- Operates with a logic family of CMOS.
- Supports a supply voltage range from 5V to 44V.
- Offers a maximum on-state resistance of 100 ohms.
- Designed for through-hole mounting.
- Operating temperature range from -40°C to 85°C.
- Compatible with CMOS/TTL output types.
- Ensures reliable switching with 4 elements per chip.
- Ideal for multiplexer and demultiplexer IC applications.
Product Description
Vishay DG413DJ-E3 analogue switch is a CMOS-based quad single-pole single-throw (SPST) switch presented in a 16-pin PDIP package. It is designed for through-hole mounting and operates reliably within a supply voltage range of 5 to 44 volts. With a maximum on-state resistance of 100 ohms, it ensures efficient signal passing with minimal loss.
This component is engineered to perform under a wide temperature range from -40°C to 85°C, making it suitable for industrial and commercial electronic applications including FPGA interfacing and multiplexing tasks. The device's compact size, measuring 19.43 mm in length, 7.87 mm in width, and 4.45 mm in height, ensures ease of integration into various circuit designs.
The DG413 series is widely used in semiconductor logic ICs, particularly in multiplexers and demultiplexers. It features 4 switch elements per chip and supports both CMOS and TTL output logic families. The through-hole PDIP package provides a robust mechanical connection suitable for prototyping and production use.
Operates with CMOS logic family and supports CMOS/TTL output types. Four independent SPST switches per chip enhance functionality. Wide supply voltage range of 5 V to 44 V enables versatile applications. Low on-state resistance of 100 Ω for efficient signal transmission.
Wide operating temperature range from -40°C to 85°C for industrial environments. 16-pin PDIP package supports through-hole mounting. Compact form factor with precise dimensions for circuit board accommodation. Commonly utilized in semiconductor multiplexers and demultiplexer ICs.
This Vishay analogue switch is ideal for integration in electronic components, power & connectors sectors, and semiconductor logic IC applications requiring reliable switching performance. It supports industrial, laboratory, and manufacturing use cases associated with signal routing and logic operations.
Explore additional Vishay semiconductor products and Analogue Switches in the EnvMart catalog for related components and advanced configurations suitable for your projects.
