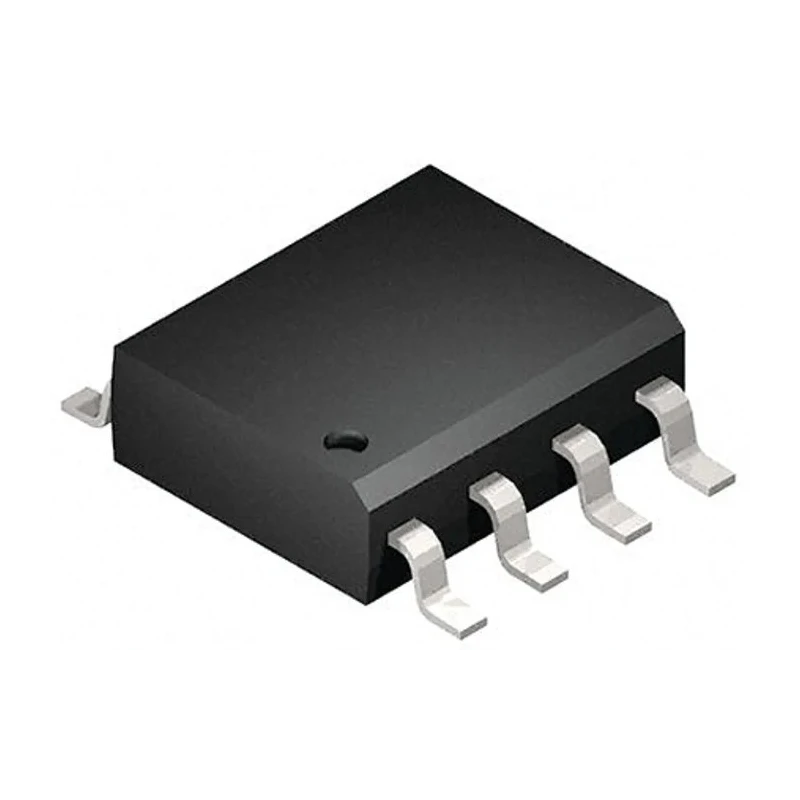

Vishay Analogue Switch, 2 CMOS Dual SPST, 8-Pin SOIC, 2.7V - 5V Supply, 65Ω Max On-Resistance DG9232EDY-T1-GE3

Vishay DG9232EDY-T1-GE3 analogue switch is a high precision monolithic CMOS device designed for low voltage signal switching applications. The device integrates two independent dual SPST switches with very low on-state resistance (17 Ω typical at 5 V). It operates from a 2.7 V to 5 V single supply, making it suitable for modern low voltage electronic designs.

This 8-pin SOIC surface mount package measures 5 mm in length, 4 mm in width, and 1.55 mm in height, offering a compact footprint ideal for space-constrained industrial and commercial circuitry.

The DG9232EDY-T1-GE3 features fast switching speeds with turn-on and turn-off times of 32 ns and 10 ns respectively, enabling efficient signal routing in communication, measurement, and control systems. It supports both analog and digital signals and maintains signal integrity by conducting equally well in both directions when on and completely blocking signals up to the power supply level when off.

The device remains functional over a broad temperature range (-40°C to 85°C), ensuring reliable operation in harsh industrial, automotive, and laboratory environments. Its low power consumption design (typical 1 nW) contributes to energy-efficient system designs.

The product's compatibility with both TTL and CMOS logic levels and its RoHS compliance make it an environmentally responsible choice for modern electronics manufacturing.

Typical applications for this analogue switch include multiplexing/demultiplexing, signal gating, switching between audio and video signals, and general analog/digital signal control in industrial, laboratory, automotive, and manufacturing sectors.

Precision dual CMOS analogue switch with two independent SPST channels. Low resistance for minimal signal distortion and loss. Broad voltage and temperature operating ranges for industrial use. Compact SOIC package for surface mount assembly.

Fast switching speeds optimize performance in high-frequency circuits. Low power consumption supports energy saving applications. Compatibility with TTL/CMOS logic ensures versatile integration. RoHS compliant for environmental safety.
