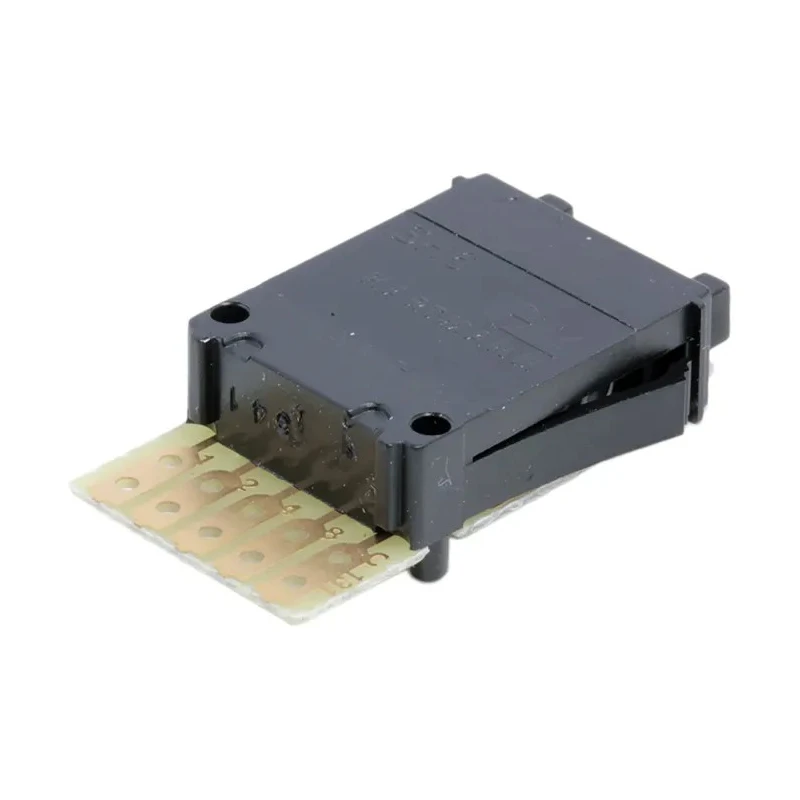

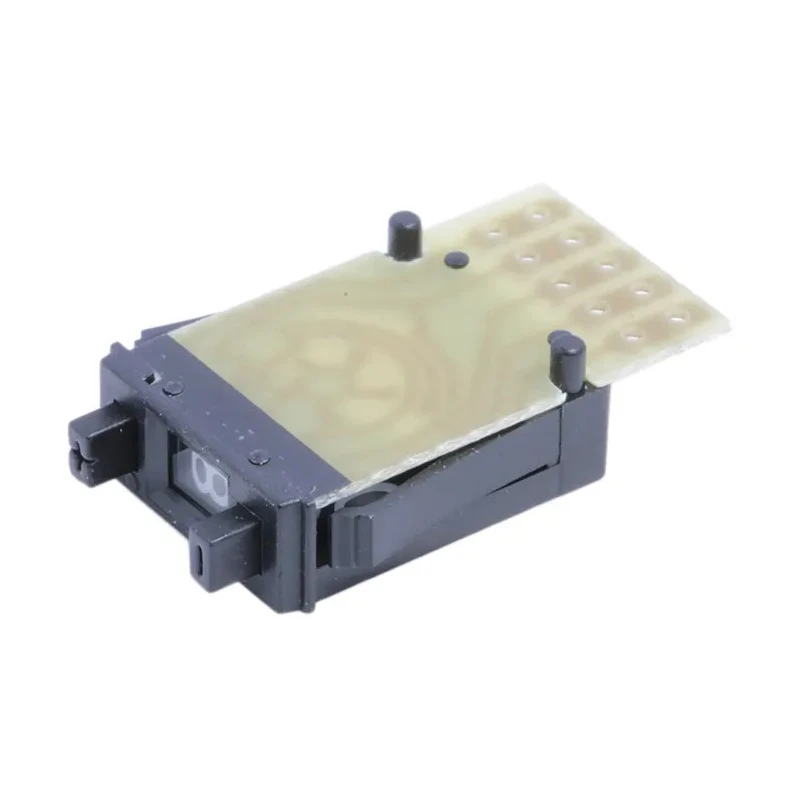

Hartmann Pushwheel Switch BCD Through Hole PCB 100mΩ Contact Resistance 10 Way 100mA 40V SH6-131-AK
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 40V |
| Brand | Hartmann |
| Model | SH6-131-AK |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Current Rating | 100mA |
| Series | SH6 |
| Maximum Operating Temperature | 80°C |
| Number of Positions | 10 |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Mechanical Life | 100000Operations |
| Output Coding | BCD |
| Switch Readout | 0 to 9 |
| Hartmann Pushwheel Switch BCD Solder Panel 100 mΩ 10 Way 100mA SH6-131-AKKBrand | Hartmann |
Key Features
- This pushwheel switch features Binary Coded Decimal (BCD) output coding for precise digital readout.
- It has a mechanical life of 100,000 operations ensuring durability and reliability.
- Gold plated contacts provide enhanced conductivity and corrosion resistance.
- Designed for through hole terminal type for secure PCB assembly.
- Operates reliably within -20°C to 80°C temperature range suitable for various applications.
- Compact design and 10 way positions make it ideal for compact electronic devices.
Product Description
Hartmann SH6-131-AK pushwheel switch is a high-quality industrial-grade component designed for precise BCD output decoding. It features a robust through hole terminal design for printed circuit boards (PCBs), rated at 40 volts and 100mA current capacity, making it suitable for sensitive electronic controls.
The switch offers 10 discrete positions enumerated 0 through 9, providing reliable digital signal input for automation and electronic instrumentation. Its gold plated contacts ensure minimal contact resistance of 100mΩ and excellent long-term conductivity, with an operational mechanical life expectancy of about 100,000 cycles.
Rated for operation in a temperature range from -20°C to 80°C, this component withstands varying industrial and commercial environmental conditions. The compact SH6 series construction complies with rigorous quality and reliability standards like DIN IEC 249-2 and ISO 9001:2000, assuring consistent performance across manufacturing batches.
This pushwheel switch is optimal for industrial automation, instrumentation panels, laboratory equipment, and electronic manufacturing requiring compact and durable rotary position encoding components. Its precise BCD output supports digital readout and control in embedded systems, industrial controls, and other electrical applications.
This pushwheel switch features Binary Coded Decimal (BCD) output coding for precise digital readout. It has a mechanical life of 100,000 operations ensuring durability and reliability. Gold plated contacts provide enhanced conductivity and corrosion resistance.
Designed for through hole terminal type for secure PCB assembly. Operates reliably within -20°C to 80°C temperature range suitable for various applications. Compact design and 10 way positions make it ideal for compact electronic devices.
Complies with international standards including DIN IEC 249-2 and ISO 9001:2000 quality systems. Discover more from our selection of Pushwheel Switches at EnvMart, ensuring professional-grade components for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 100mA, making it suitable for sensitive electronic controls.
It is rated for a maximum voltage of 40V, which allows it to be used in various electronic applications.
This unit features 10 discrete positions, allowing for precise digital signal input from 0 to 9.
The contact resistance is minimal at 100mΩ, ensuring enhanced conductivity and performance.
It operates reliably within a temperature range of -20°C to 80°C, suitable for various industrial conditions.
It is designed with a through hole terminal type for secure assembly on printed circuit boards (PCBs).
The mechanical life expectancy of this switch is approximately 100,000 operations, ensuring long-term reliability.
It features Binary Coded Decimal (BCD) output coding for precise digital readout.
The contacts are gold plated, which enhances conductivity and provides corrosion resistance.
It complies with international standards including DIN IEC 249-2 and ISO 9001:2000 quality systems.
The Hartmann pushwheel switch is manufactured in Germany, ensuring adherence to high-quality standards.
This switch is optimal for industrial automation, instrumentation panels, and electronic manufacturing requiring compact rotary position encoding.
