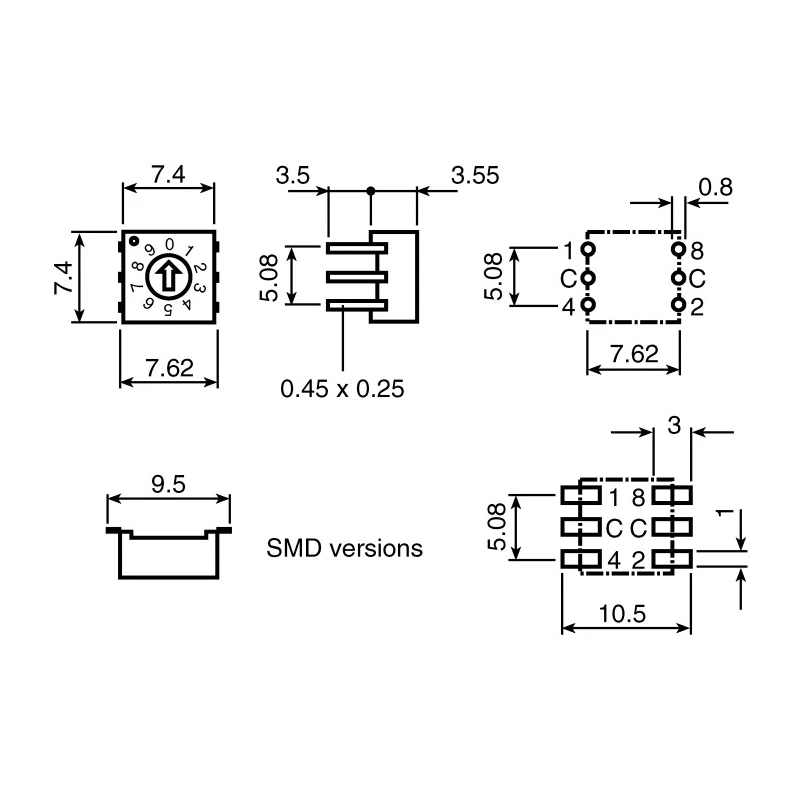

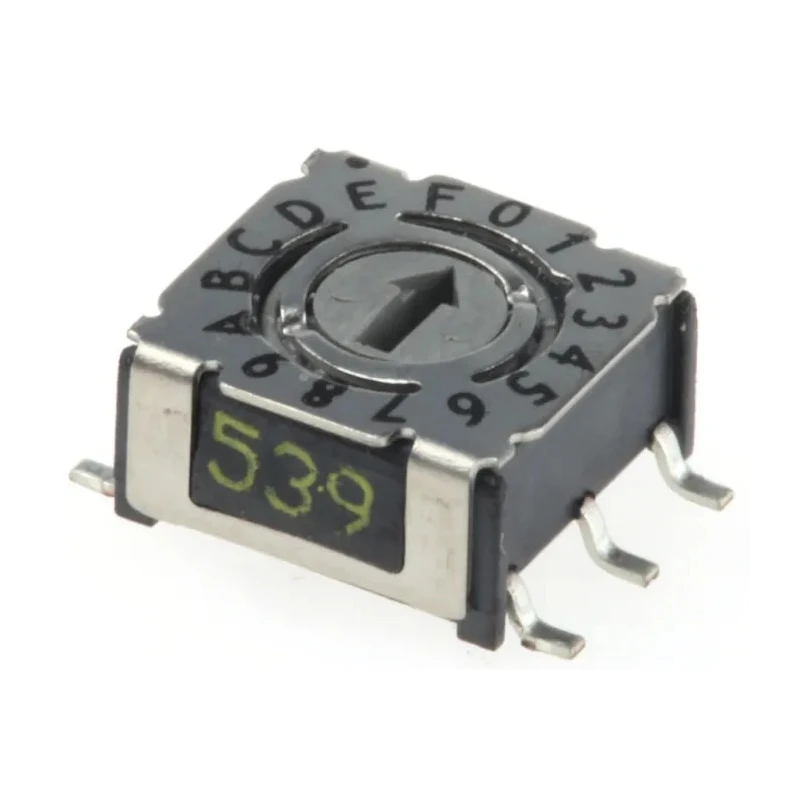

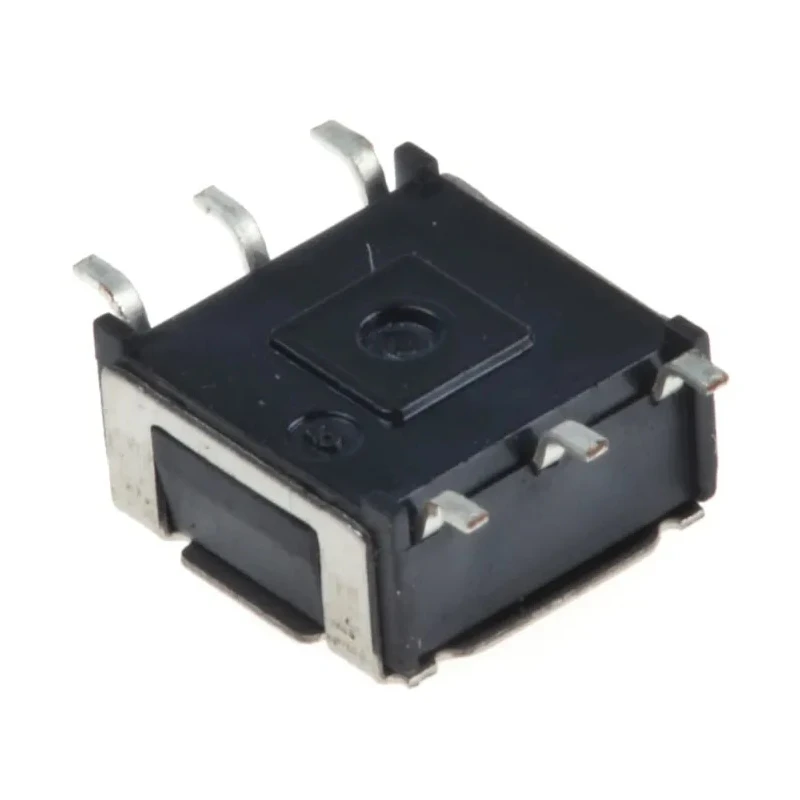

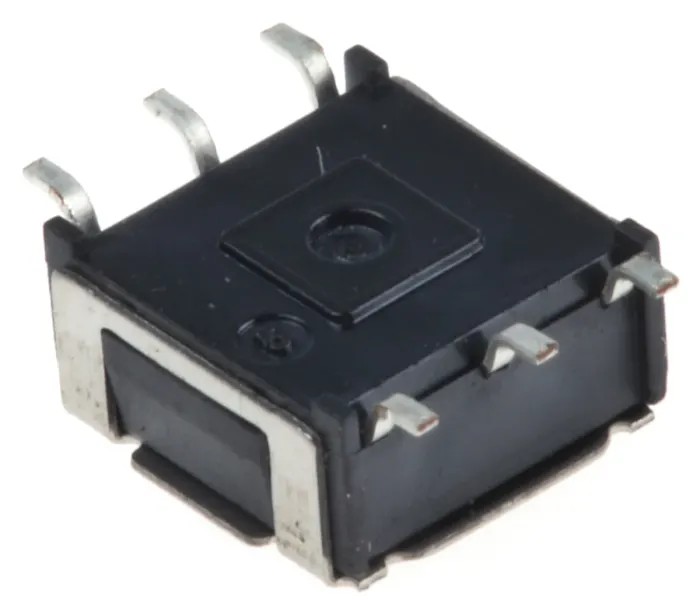

Hartmann Rotary Flush Rotary Coded DIP Switch Surface Mount P36S103
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Operating Temperature | -30 to +90°C |
| Model | P36S103 |
| Mount Type | Surface Mount |
| Actuator Type | Rotary Flush |
| Contact Rating | 150mA @ 24Vdc |
Key Features
- Rotary flush actuator type suited for inline low-profile installation.
- Surface mount design enables easy PCB mounting.
- Contact rating of 150mA at 24V DC ensures suitability for low-voltage circuits.
- Robust mechanical life exceeding 100,000 operations guarantees long service.
- Operates reliably within a temperature range of -30 to +90 degrees Celsius.
- Gold-plated contacts provide corrosion resistance and improved conductivity.
- Flux sealed and process washable for high-quality manufacturing integration.
- Positive detent ensures accurate switching positions.
Product Description
Hartmann P36S103 Rotary Flush Rotary Coded DIP Switch is a technically advanced rotary encoded low-profile in-line switch designed for high-performance industrial and electronic equipment use. Featuring a flush rotary actuator and surface mount compatibility, this DIP switch is ideal for automation systems, control panels, and electronic devices requiring precise switching controls.
Specialized for surface mounting on printed circuit boards, the switch enables compact assembly while maintaining robust mechanical stability. The unit supports a contact rating of 150mA at 24V DC, suitable for effective low-current circuit switching with minimal contact degradation.
Endurance is excellent with a mechanical life rating exceeding 100,000 operations, supporting prolonged industrial use without loss of performance. The operating temperature range from -30 to +90 degrees Celsius allows deployment in diverse environmental conditions.
The switch incorporates gold-plated contacts to ensure superior electrical connectivity and resistance to corrosion. Additionally, the flux sealed and process-washable design allow integration into automated manufacturing processes involving cleaning solvents and flux residues.
Positive detent mechanism enhances accuracy of rotary positions, crucial for applications demanding reliable encoded outputs. The device's manufacturing origin, Germany, reflects high-quality standards and compliance with stringent industrial norms.
Rotary flush actuator type. Surface mount PCB installation. 150mA contact rating at 24V DC. Mechanical life over 100,000 operations. Operating temperature -30°C to +90°C. Gold-plated contacts. Flux sealed, process washable.
Positive detent for accuracy. Made in Germany.
This Rotary Coded DIP Switch is essential for electronics manufacturing, automation systems, electrical equipment, and instrumentation industries needing reliable, low-profile rotary switching components. Explore the full range of precision switches and components on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 150mA at 24V DC, making it suitable for low-voltage circuits.
It operates reliably within a temperature range of -30 to +90 degrees Celsius.
The mechanical life of this model exceeds 100,000 operations, ensuring long service life.
This model features a surface mount design, allowing for easy PCB mounting.
It uses a rotary flush actuator type, designed for inline low-profile installation.
Yes, it features gold-plated contacts which provide corrosion resistance and improved conductivity.
Yes, it is flux sealed and process washable, making it suitable for integration into automated manufacturing processes.
It is essential for electronics manufacturing, automation systems, electrical equipment, and instrumentation industries.
This switch is manufactured in Germany, reflecting high-quality standards.
The positive detent mechanism enhances the accuracy of rotary positions, which is crucial for applications requiring reliable encoded outputs.
Key features include a contact rating of 150mA at 24V DC, a mechanical life over 100,000 operations, and a temperature range of -30 to +90 degrees Celsius.
This unit is suitable for automation systems, control panels, and electronic devices requiring precise switching controls.
