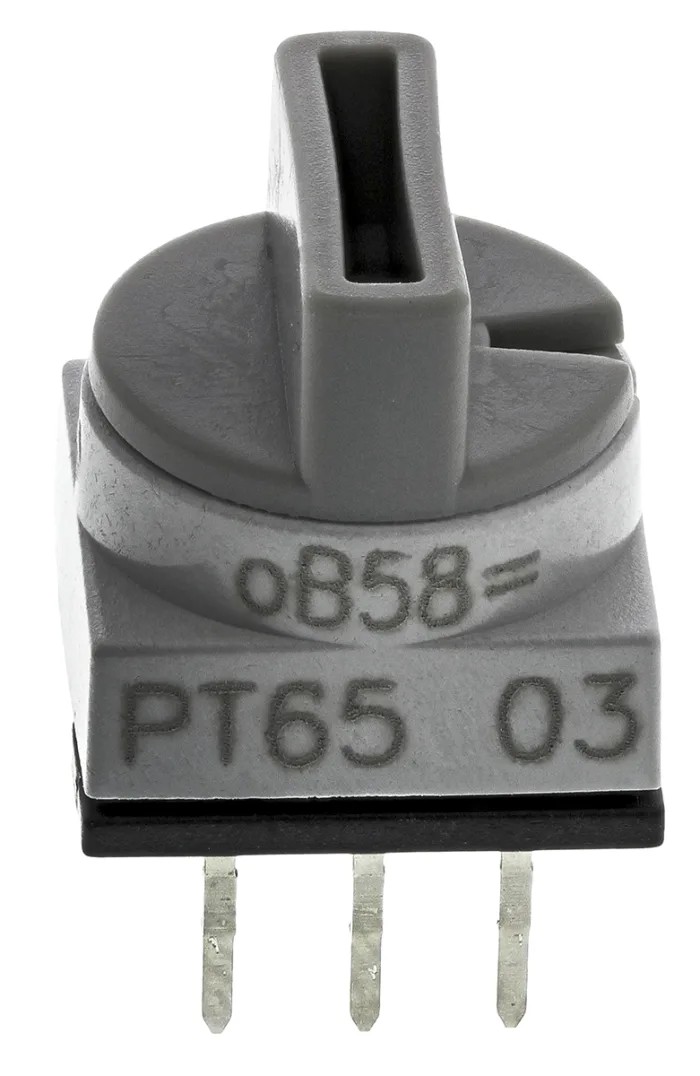

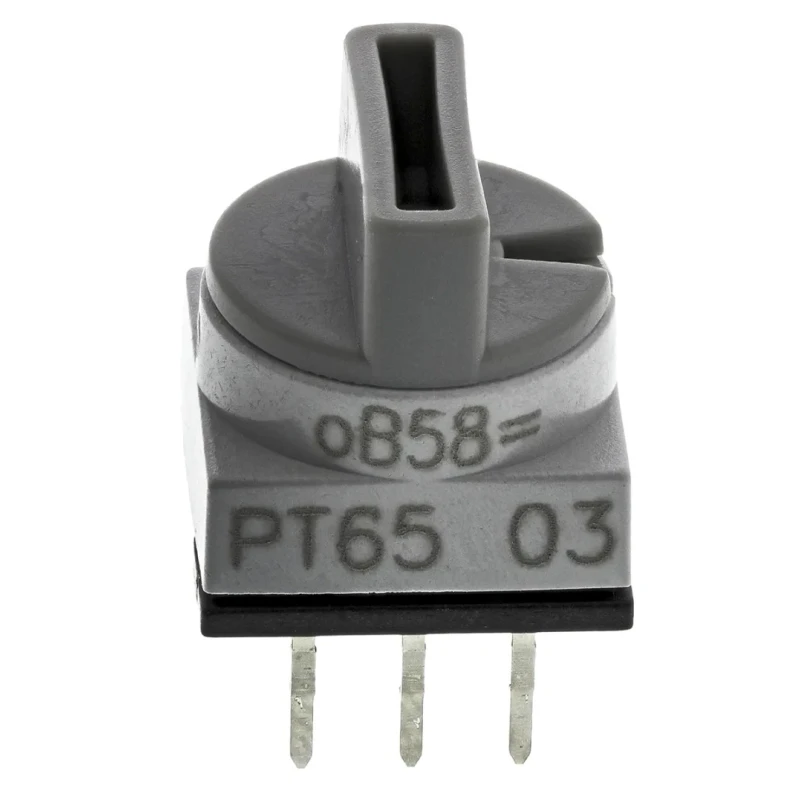

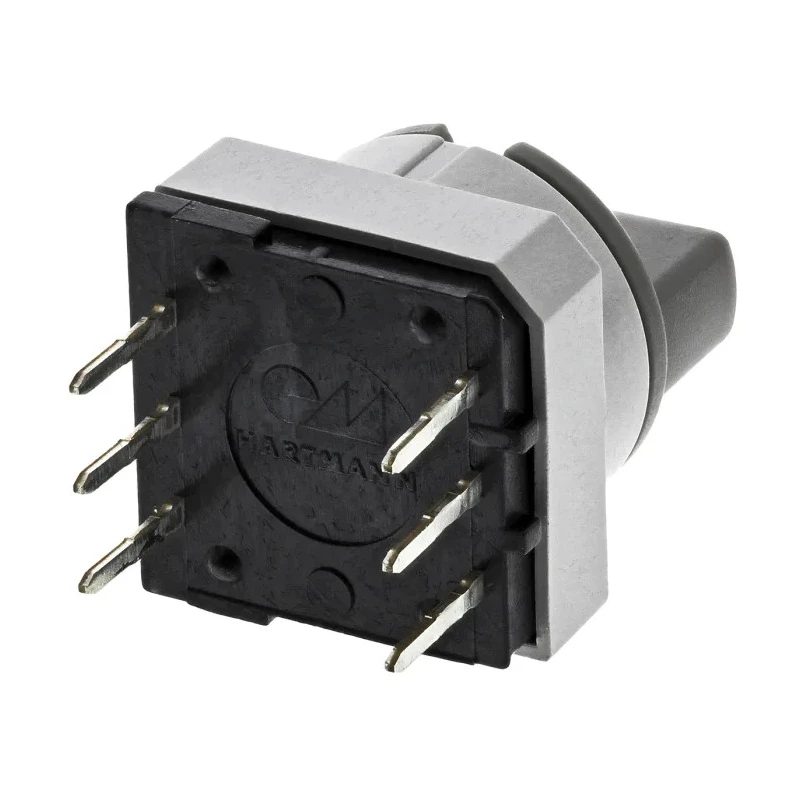

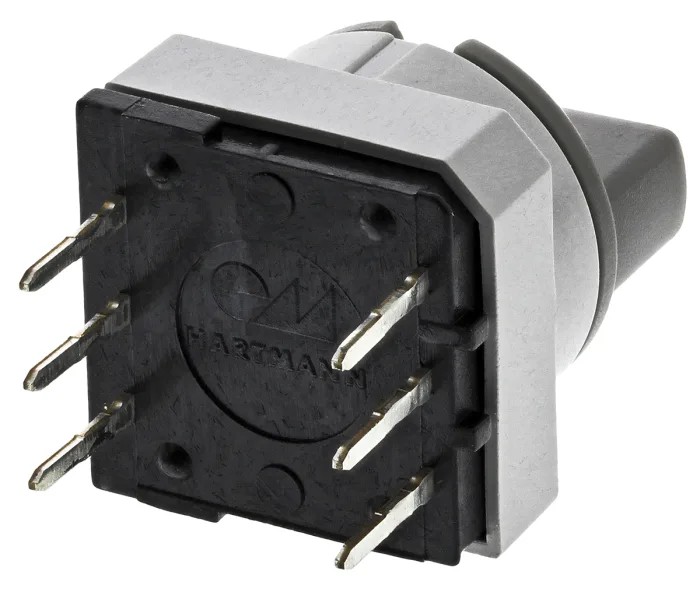

Hartmann Segment Wheel Rotary Coded DIP Switch Through Hole PT65503
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Model | PT65503 |
| Mount Type | Through Hole |
| Actuator Type | Segment Wheel |
| Contact Rating | 150mA @ 24Vdc |
| Soldering Temperature | 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max |
Key Features
- Features a slotted head segment wheel actuator for accurate selection.
- Contact rating is 150mA at 24Vdc, suitable for low power applications.
- Gold plated contacts ensure minimal contact resistance and enhanced durability.
- Flux sealed and process washable design protects internal components.
- Positive detent mechanism provides tactile feedback and precise indexing.
- Soldering temperature is max 340°C for 2 seconds or 260°C for 10 seconds.
- Configured for through-hole PCB mounting ensuring secure installation.
Product Description
Hartmann PT65503 Segment Wheel Rotary Coded DIP Switch Through Hole is a high-quality rotary encoded DIP switch designed for industrial and electronic applications requiring precise selection and durable performance.
This switch features a segment wheel actuator with a slotted head design, allowing easy and accurate manual adjustments. The device uses gold plated contacts to reduce contact resistance and provide reliability over more than 100,000 operations. Its flux sealed and process washable design makes it suitable for assembly processes requiring cleaning without damaging internal contacts.
The switch is rated for 150mA contact current at 24V DC and offers a positive detent action for tactile feedback. It withstands soldering temperatures of up to 340°C for short durations, supporting standard PCB assembly processes.
Designed for through-hole mounting, it integrates securely into circuit boards for various applications including automation controls, instrumentation, and electronic devices. Slotted head rotary actuator for precise switching.
Gold plated contacts ensure low contact resistance. Flux sealed and suitable for process washing. Contact rating of 150mA at 24V DC. Positive detent mechanism for accurate indexing. Supports through-hole PCB mounting. Soldering temperature max 340°C for 2s or 260°C for 10s.
This product is made in Germany and comes new, ready for integration in industrial, laboratory, and commercial electronic systems. Explore more quality Rotary Coded DIP Switches at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this switch is 150mA at 24V DC, making it suitable for low power applications.
It is designed for through-hole PCB mounting, ensuring secure installation in circuit boards.
The switch can withstand a maximum soldering temperature of 340°C for 2 seconds or 260°C for 10 seconds.
This model features a segment wheel actuator with a slotted head design for accurate selection.
The positive detent mechanism provides tactile feedback and precise indexing during operation.
The contacts are gold plated, which helps to minimize contact resistance and enhance durability.
Yes, it has a flux sealed design that makes it suitable for assembly processes requiring cleaning without damaging internal components.
It is suitable for various applications including automation controls, instrumentation, and electronic devices.
The gold plated contacts are designed to reliably operate for more than 100,000 operations.
This product is made in Germany, ensuring quality manufacturing standards.
The flux sealed design protects internal components from contamination during assembly and allows for process washing.
The slotted head design allows for easy and accurate manual adjustments for precise switching.
