Hartmann Pushwheel Switch BCD Through Hole Panel Mount 100 mΩ Contact Resistance 10 Positions 40V DPS9-141-AK2

Free Delivery in India | Lowest Global Shipping Charges

Hartmann Pushwheel Switch BCD Through Hole Panel Mount 100 mΩ Contact Resistance 10 Positions 40V DPS9-141-AK2

Name: Hartmann Pushwheel Switch BCD Through Hole Panel Mount 100 mΩ Contact Resistance 10 Positions 40V DPS9-141-AK2
Brand: Hartmann
SKU: 406701
Price: 2147.2 INR
Availability: InStock



Category Pushwheel Switch Brand Hartmann Condition New

Specifications

Country of Origin	Germany
Voltage	40V
Brand	Hartmann
Model	DPS9-141-AK2
Mount Type	Panel
Contact Material	Gold over Nickel Plated Copper Alloy
Series	DPS9
Maximum Operating Temperature	80°C
Number of Positions	10
Minimum Operating Temperature	-20°C
Terminal type	Through Hole
Contact Resistance	100mΩ
Standards/Approvals	DIN, IEC
Mechanical Life	1000000Cycles
Output Coding	BCD
Switch Readout	0 to 9

Key Features

This pushwheel switch features BCD output coding suitable for various digital applications.
It offers a switch readout from 0 to 9 for precise control.
The contacts have gold over nickel plated copper alloy to ensure durability and reliable conductivity.
Panel mount design with through hole terminal type allows easy installation in control panels.
Mechanical life rated at 1,000,000 cycles ensures long-lasting performance.
Operating voltage is up to 40V, appropriate for industrial electronic controls.
Designed to operate within temperature ranges from -20°C to 80°C.
Complies with DIN and IEC standards for industrial quality and safety.

Product Description

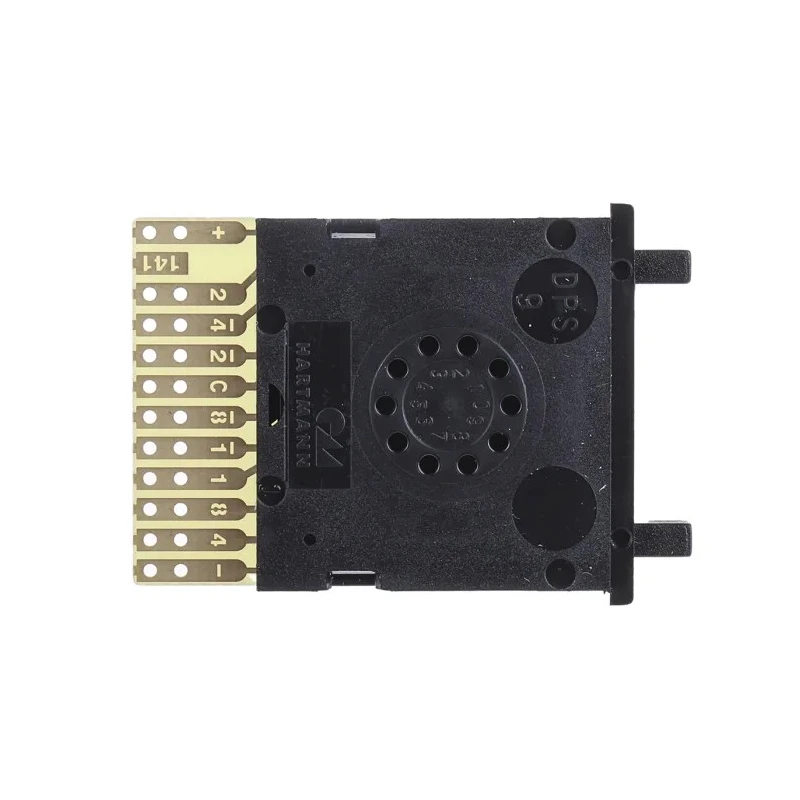

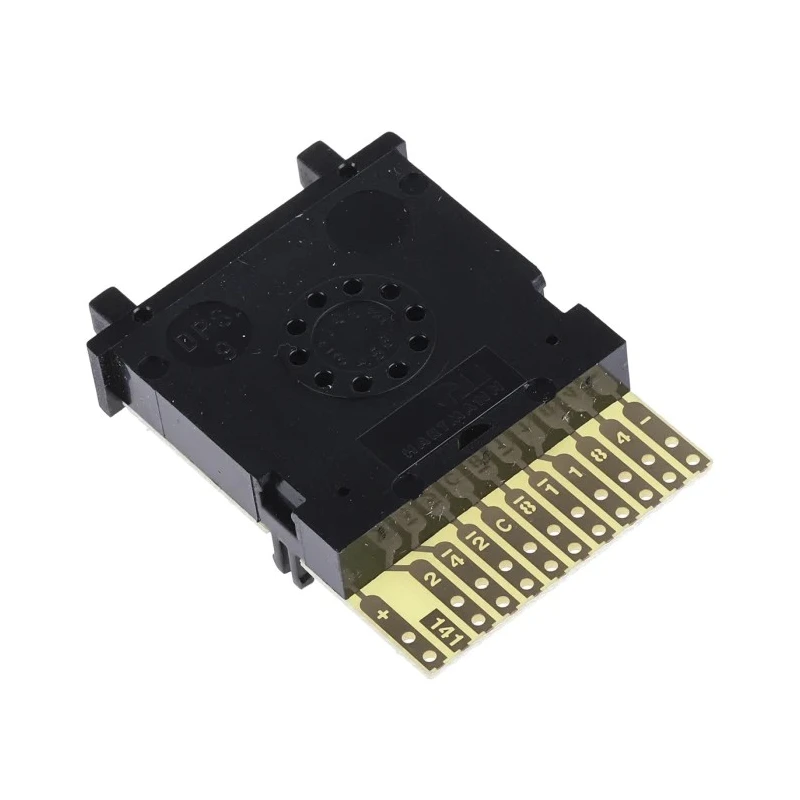

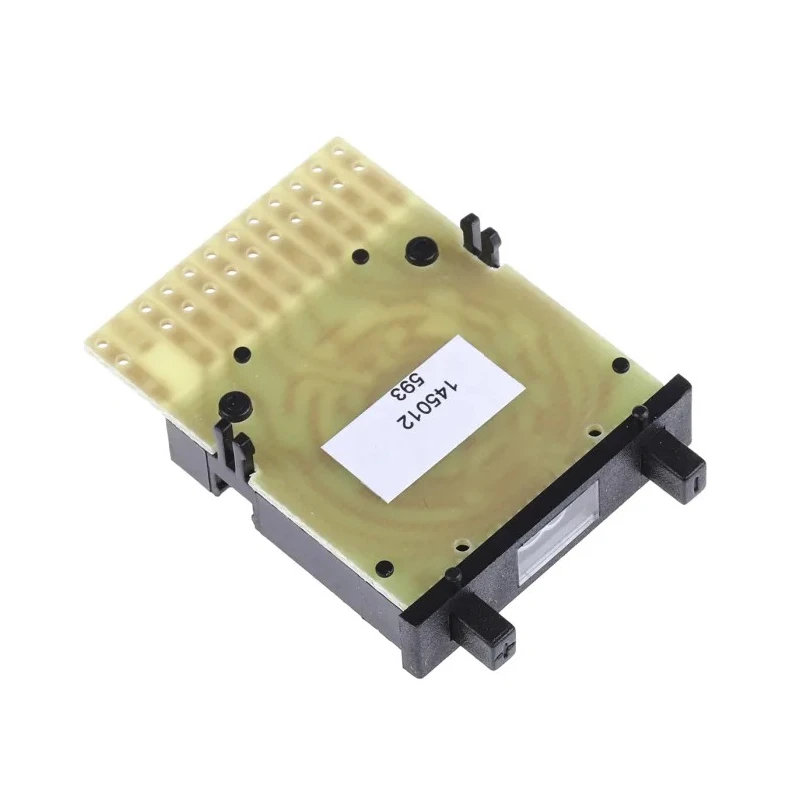

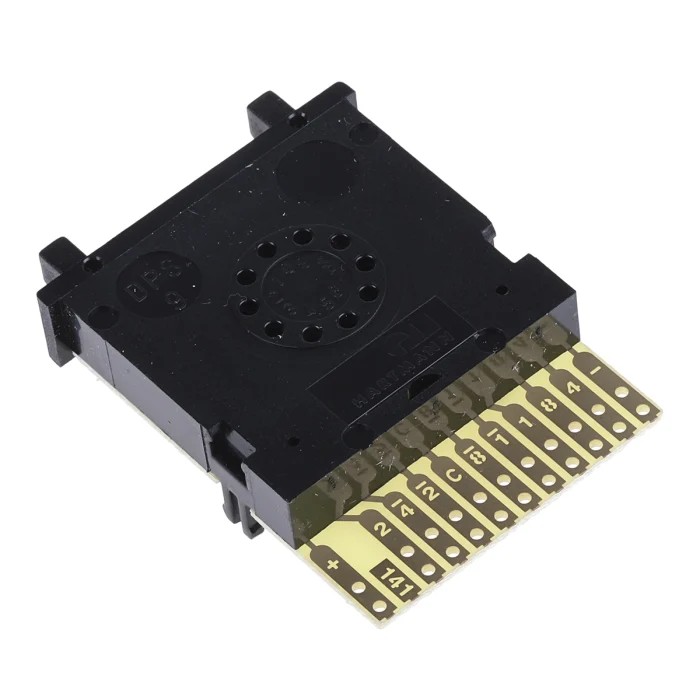

The Hartmann DPS9-141-AK2 pushwheel switch is a high-quality, miniature pushwheel switch designed for panel mounting with through hole terminals. Featuring BCD (Binary Coded Decimal) output coding and 10 selectable positions, it provides reliable digital input control for industrial electronic equipment. This switch commands a low contact resistance of 100 mΩ, with contacts plated in gold over nickel on copper alloy to ensure excellent conductivity and resistance to corrosion.

The device's robust mechanical life of 1,000,000 cycles guarantees longevity and dependable operation in repetitive switch applications. Rated for 40V operation, it is suitable for a variety of low-voltage control circuits. The switch withstands environmental conditions ranging from -20°C to 80°C, making it suitable for diverse industrial environments.

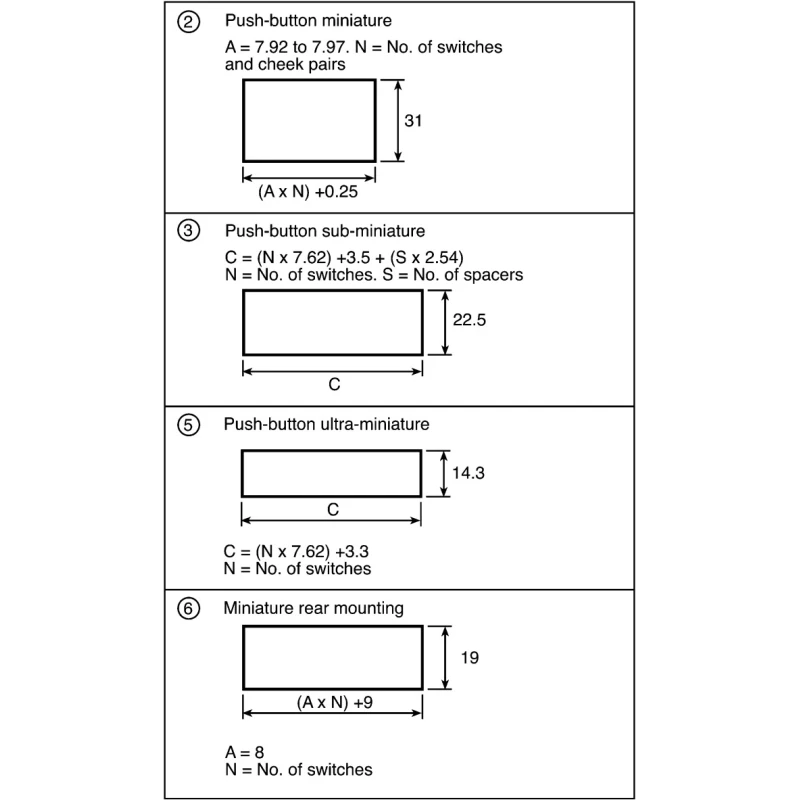

The compact form factor, measuring 33mm in height, 8mm in width, and 39.1mm in depth, allows easy inclusion in control panels where space conservation is essential. It complies with DIN and IEC standards, ensuring industry-standard safety and performance. Manufactured in Germany, this product reflects superior engineering quality.

This pushwheel switch is ideal for use in industrial automation, control panels, instrumentation, and other electrical switching applications requiring precise positioning and durable electrical contacts. Its snap-together format with optional end cheeks adds flexibility in mounting configurations.

BCD output coding enables accurate digital signal encoding. Gold over nickel plated copper alloy contacts provide excellent conductivity. Mechanical life rated at 1,000,000 cycles supports extended use. Operating temperature range from -20°C to 80°C for reliability in diverse conditions.

Compact size permits installation in constrained panel spaces. Complies with DIN and IEC industrial standards ensuring safety and quality. Explore more high-quality Pushwheel Switches and related components in the Electronics & Electricals category at EnvMart for your industrial automation needs.
