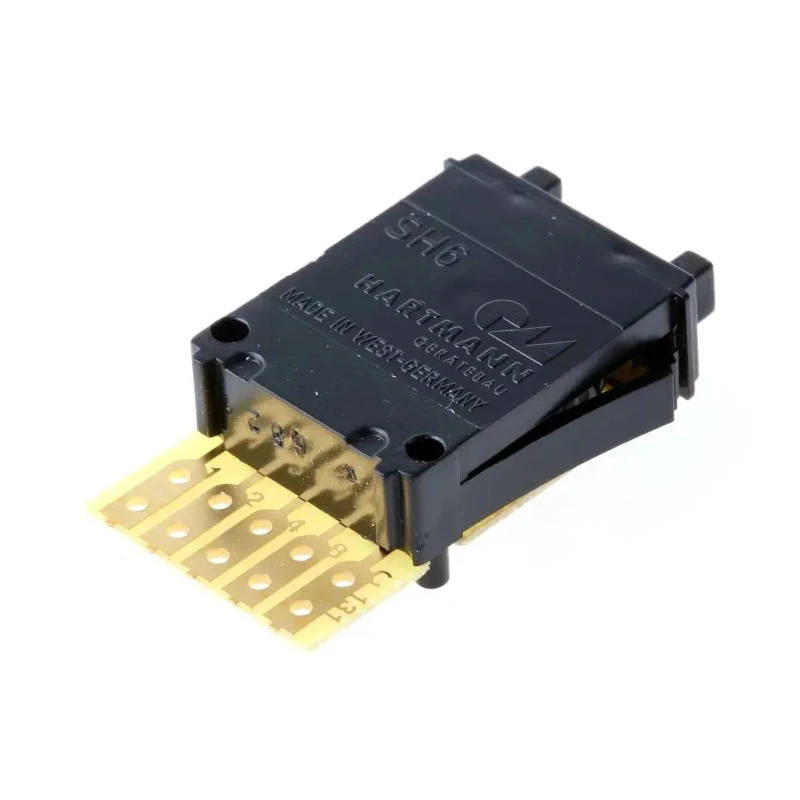

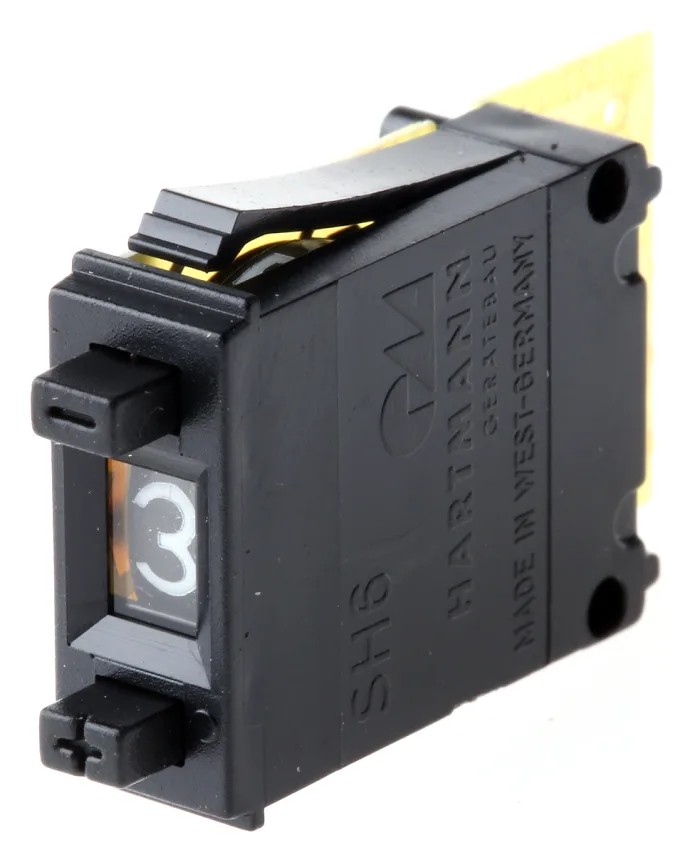

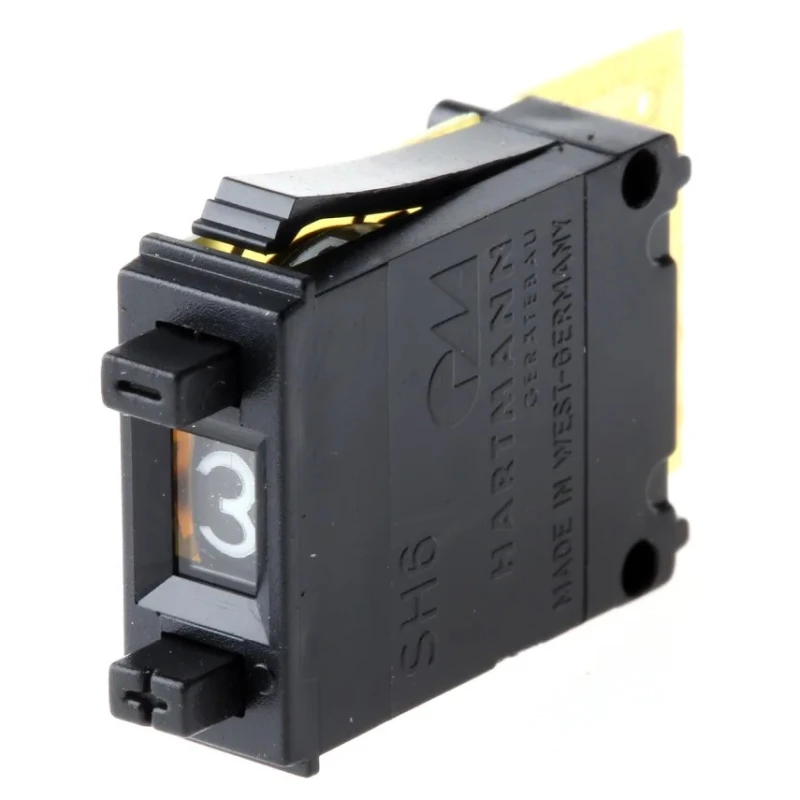

APEM Pushwheel Switch BCD Through Hole Panel Mount 40V 100mA 10 Position 100mΩ Contact Resistance SH6-131-AK2

APEM SH6-131-AK2 Pushwheel Switch is a highly reliable, sub-miniature switch designed for panel mounting in industrial electrical and automation systems. It delivers binary coded decimal (BCD) output coding with a 10-position rotary readout from 0 to 9, aiding in precise setting and control operations on machinery and control panels. The switch supports a voltage rating of 40V and a current rating of 100mA, suitable for low-power industrial signal switching.

Equipped with gold over nickel plated copper contacts, the switch ensures excellent conductivity and corrosion resistance, while maintaining a low contact resistance of 100mΩ which minimizes power loss. The mechanical durability is rated for one million actuations, making it suitable for rigorous use in manufacturing, automation, laboratory, and control environments.

The device is engineered for panel mounting with a panel mount hole dimension of 15 x 6 mm. It supports insertion from both the front and rear, featuring a snap action mechanism with an audible click for tactile feedback and operational assurance. It reliably functions across a broad temperature range from -20°C to 80°C, enabling usage in diverse industrial climates.

Certified to meet DIN and IEC standards, this APEM pushwheel switch is manufactured in Germany, ensuring high quality and compliance with international industry benchmarks. The compact sub-miniature design allows for integration into limited space control panels without compromising functionality.

Gold over nickel plated copper contacts provide durable and reliable electrical connection. A low contact resistance of 100mΩ supports efficient signal transmission. Mechanical life rated for one million cycles assures longevity in demanding applications.

Panel mount hole size of 15 x 6 mm facilitates standardized mounting. Insertion from front and rear simplifies installation flexibility. Snap action with audible click allows confident setting adjustments. Operating temperature range from -20°C to 80°C accommodates diverse environments.

Compliance with DIN and IEC standards guarantees international quality. Compact sub-miniature size fits in space-constrained panel setups.

This pushwheel switch is ideally suited for use in industrial automation, electrical control panels, laboratory instruments, and manufacturing process controls. Its precision and durability make it a dependable component in complex control systems.
