Hartmann Rotary Coded DIP Switch PCB Mount Solder Terminal PT65102L254

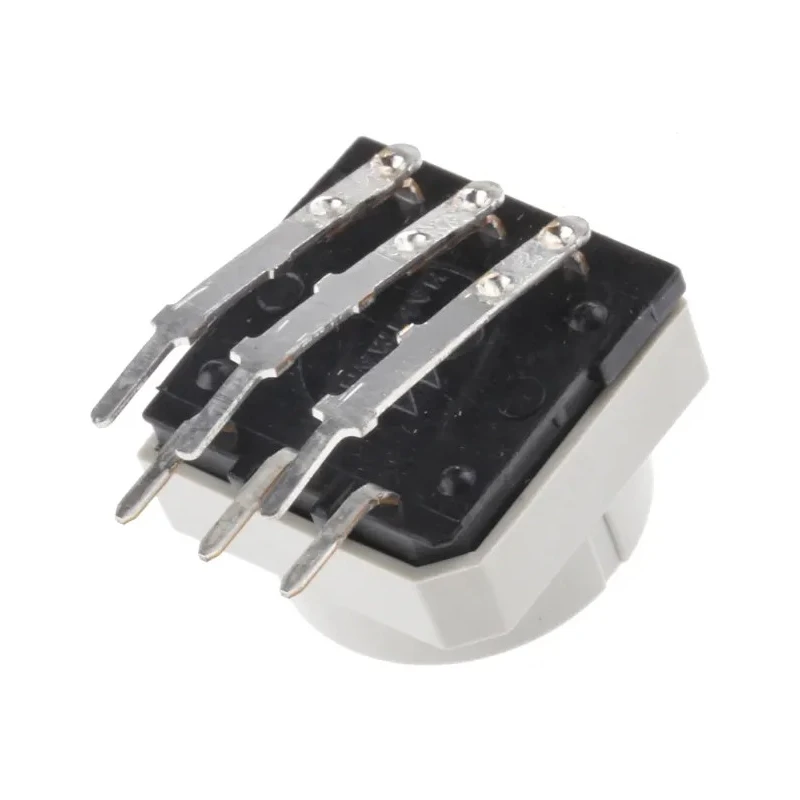

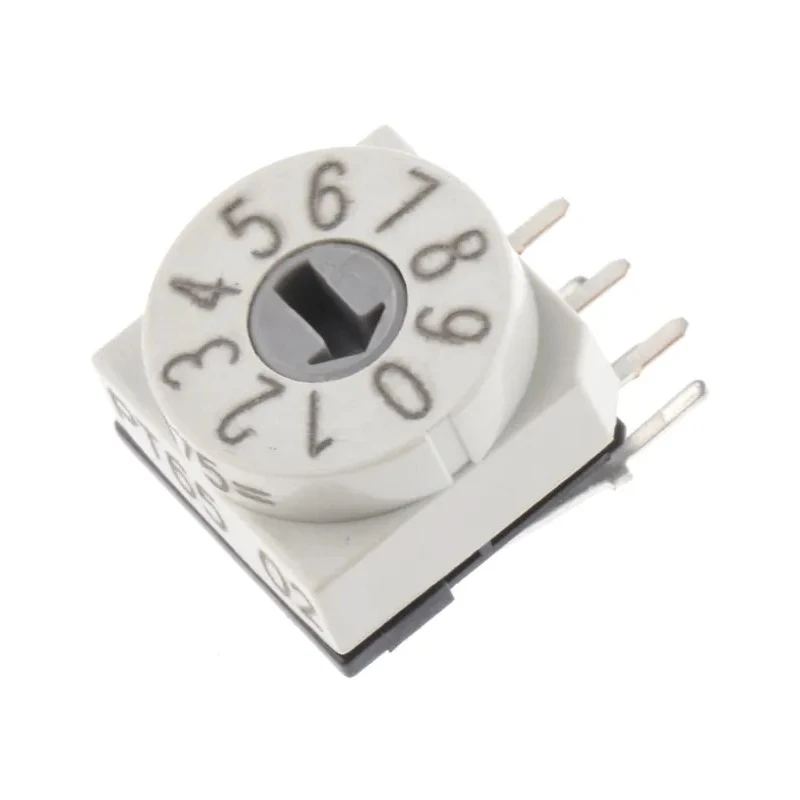

Hartmann PT65102L254 Rotary Coded DIP Switch is a PCB mount rotary encoder with solder terminal type, designed for precision switching in electronic and electrical circuit applications. Its slotted head allows for easy manual rotation, making it suitable for adjustments and settings on printed circuit boards.

This rotary encoded DIP switch features flux sealing and process washability, ensuring robustness in industrial environments where exposure to cleaning processes is common. The gold plated contacts deliver enhanced conductivity and resistance to corrosion, critical for long-lasting performance.

The switch’s contact rating is rated at 150mA at 24V DC, suitable for low power circuits. A positive detent mechanism provides distinct and reliable tactile feedback during switching operations, improving user experience and control accuracy.

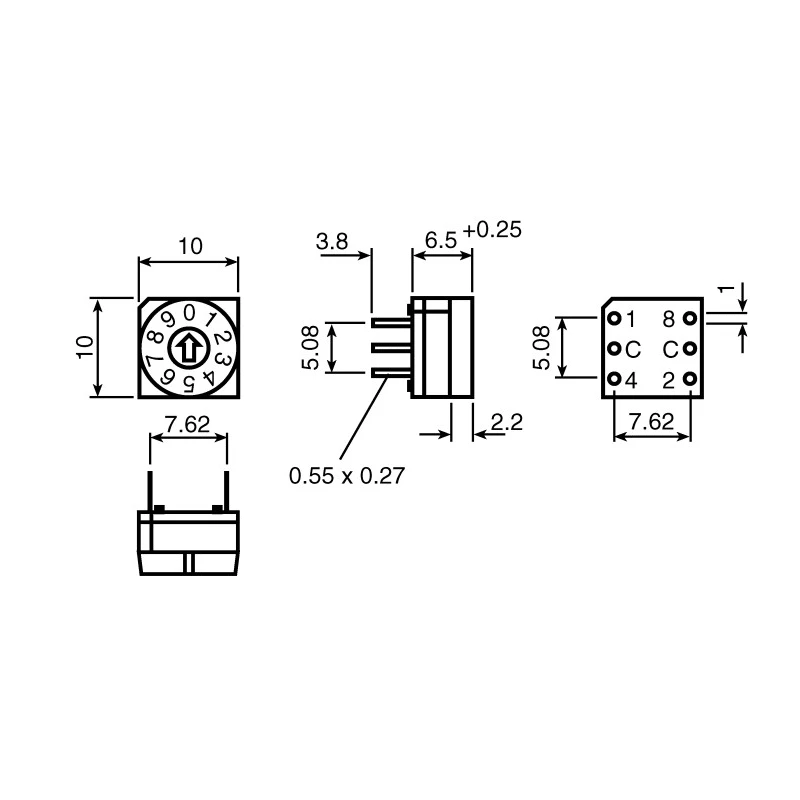

Designed for PCB mounting, the footprint has a pin spacing of 2.54mm between pins and 5.08mm between rows, compatible with standard circuit board layouts. The solder terminals can tolerate soldering temperatures up to 340°C for a maximum of 2 seconds when using a 40 watt iron or 260°C for up to 10 seconds for other soldering methods.

This Rotary Coded DIP Switch is ideal for industrial and commercial electrical systems, automation equipment, control panels, and instrumentation applications requiring reliable rotary encoding.

Slotted head rotary encoder enhances manual adjustment capabilities. Flux sealed and process washable for industrial durability. Gold plated contacts for superior conductivity and corrosion resistance. Contact rating of 150mA at 24V DC for low current applications.

Positive detent mechanism provides tactile feedback. PCB mounting with standard pin spacing footprint. Solderable terminals withstand high temperature soldering processes. Explore more rotary encoders and DIP switches in industrial electrical components category on EnvMart.
