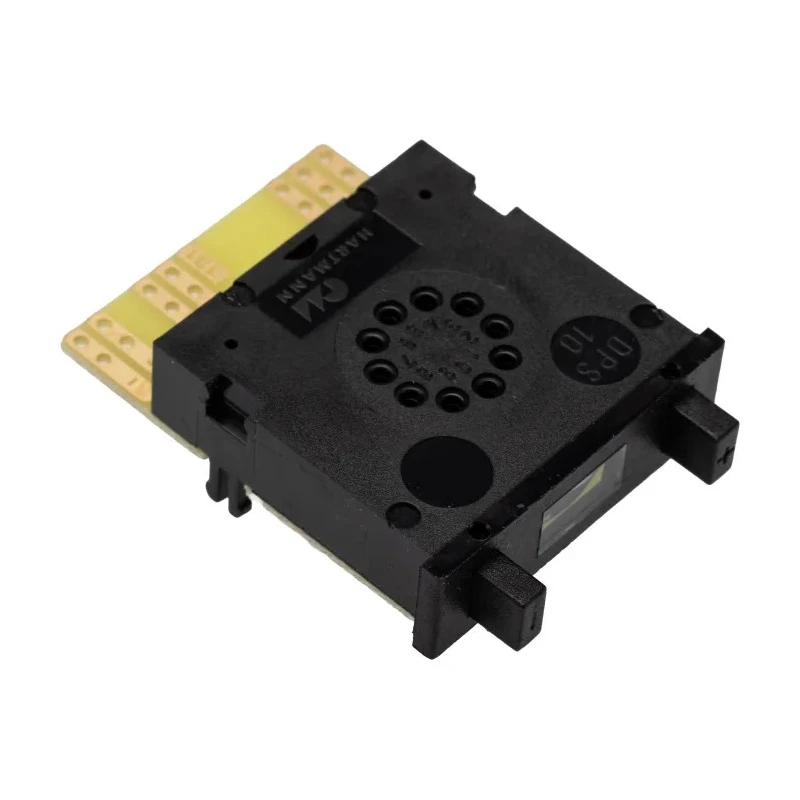

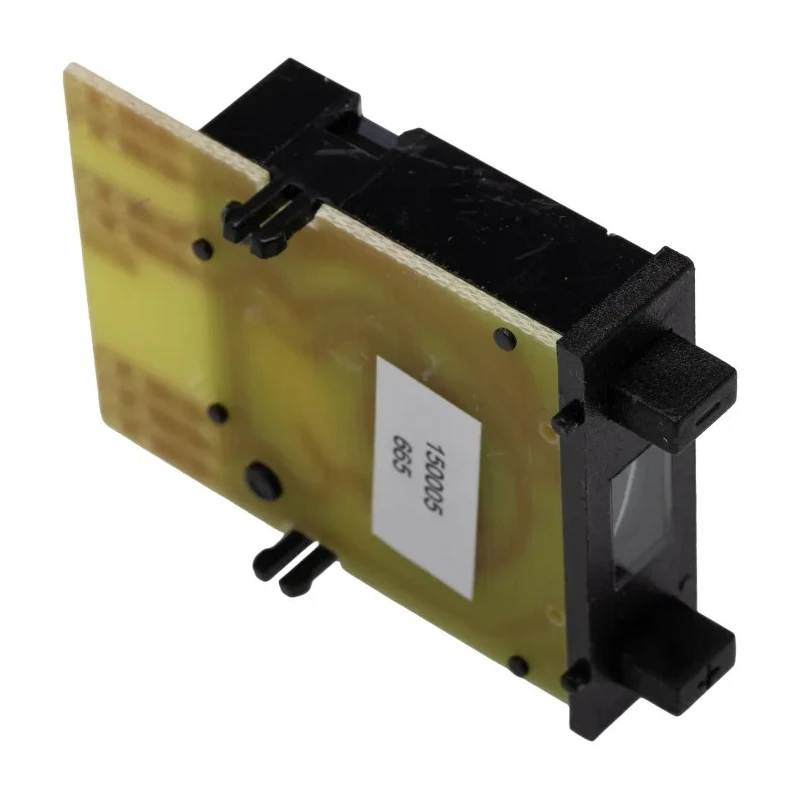

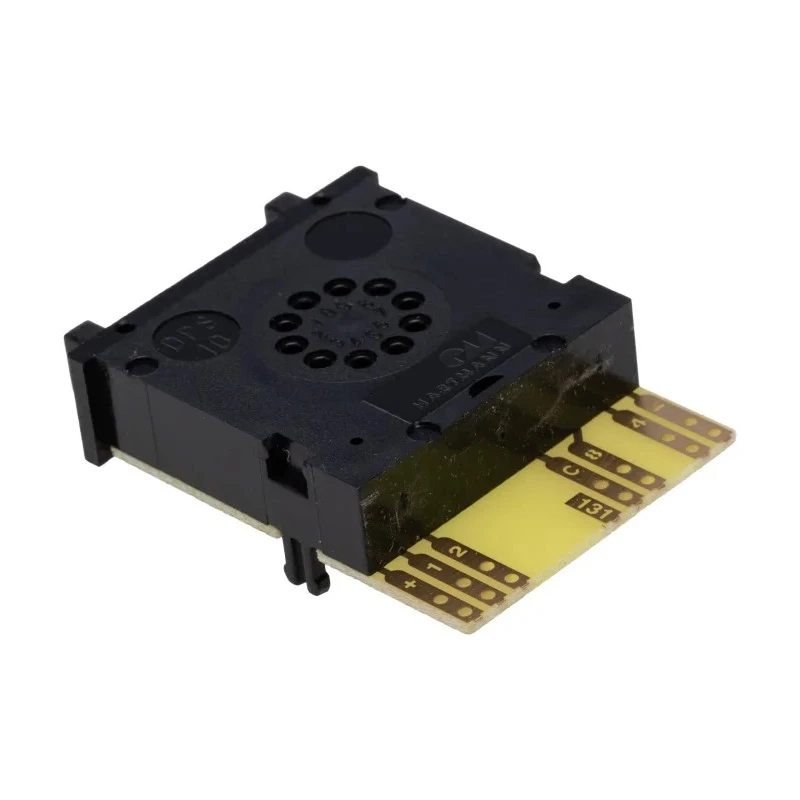

TE Connectivity Pushwheel Switch BCD Output Tab PCB Mount 200 mΩ Contact Resistance 10 Positions 400mA Current DPS10131AK
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | DPS10131AK |
| Mount Type | PCB |
| Current Rating | 400mA |
| Series | DPS |
| Maximum Operating Temperature | 80°C |
| Number of Positions | 10 |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Contact Resistance | 200mΩ |
| Mechanical Life | 1000000Operations |
| Output Coding | BCD |
| Switch Readout | A to F |
Key Features
- Equipped with 10 positions for precise multi-stage switching.
- Features BCD output coding suitable for digital interfacing.
- Current rating of 400mA supports low power circuits.
- Compact tab terminal type designed for PCB mounting.
- Contact resistance rated at 200 milliohms for reliable signal integrity.
- Mechanical life expectancy of 1,000,000 operations ensures durability.
- Operates within temperature range -20°C to 80°C for varied environments.
- Rear mount miniature pushwheel design facilitates space-saving installation.
Product Description
TE Connectivity DPS10131AK Pushwheel Switch is a PCB mount, miniature rear mount switch designed for precise multi-position electrical control. It features BCD output coding with a maximum of 10 positions, making it suitable for complex switching and digital input applications.
This switch is rated for a continuous current of 400mA and offers a low contact resistance of 200 milliohms, ensuring minimal signal loss. The tab type terminals and snap action detent pushbutton create a reliable tactile interface for mechanical operation.
Its mechanical life exceeds one million operations, offering long-term reliability in demanding industrial, automation, electronics manufacturing, and control panel applications. The device operates over a temperature range from -20°C to +80°C, allowing installation in various environmental conditions.
Compact and sturdy, this pushwheel switch helps optimize PCB space while providing dependable multi-position switching for electrical circuits. The switch's rear mounting style simplifies installation and maintenance.
Equipped with 10 switch positions enabling complex circuit control. Backward compatible BCD output coding for digital readouts. Supports current loads up to 400mA. Low contact resistance of 200mΩ for high signal fidelity.
Durable snap action mechanism with over 1 million mechanical cycles. Operates reliably from -20°C to 80°C ambient temperatures. Compact tab terminal for efficient PCB mounting. Ideal for use in industrial automation, instrumentation, and electronics applications.
This switch belongs to TE Connectivity's DPS series, known for quality and precision in Pushwheel Switch solutions. It provides excellent performance for electronics engineers and system integrators requiring robust multi-position switches.
Explore the complete TE Connectivity range of switches and electrical components on EnvMart to enhance your project's control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 400mA, making it suitable for low power circuits.
This switch features 10 positions, allowing for precise multi-stage switching.
The contact resistance is rated at 200 milliohms, ensuring reliable signal integrity.
It operates within a temperature range of -20°C to 80°C, suitable for varied environments.
This pushwheel switch utilizes tab type terminals designed for PCB mounting.
The mechanical life expectancy of this switch exceeds 1,000,000 operations, ensuring long-term reliability.
It supports BCD output coding, which is suitable for digital interfacing and readouts.
This model features a compact rear mount design, facilitating space-saving installation on PCBs.
It is ideal for applications in industrial automation, instrumentation, and electronics manufacturing.
This switch is part of the DPS series by TE Connectivity, known for precision in pushwheel switch solutions.
The switch features a durable snap action mechanism that provides a reliable tactile interface for operation.
