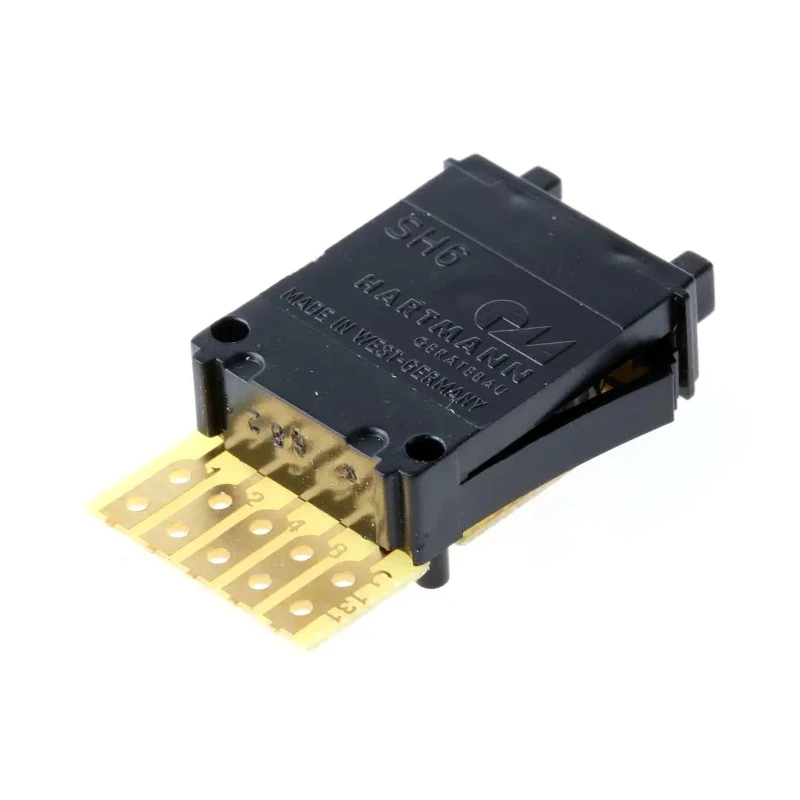

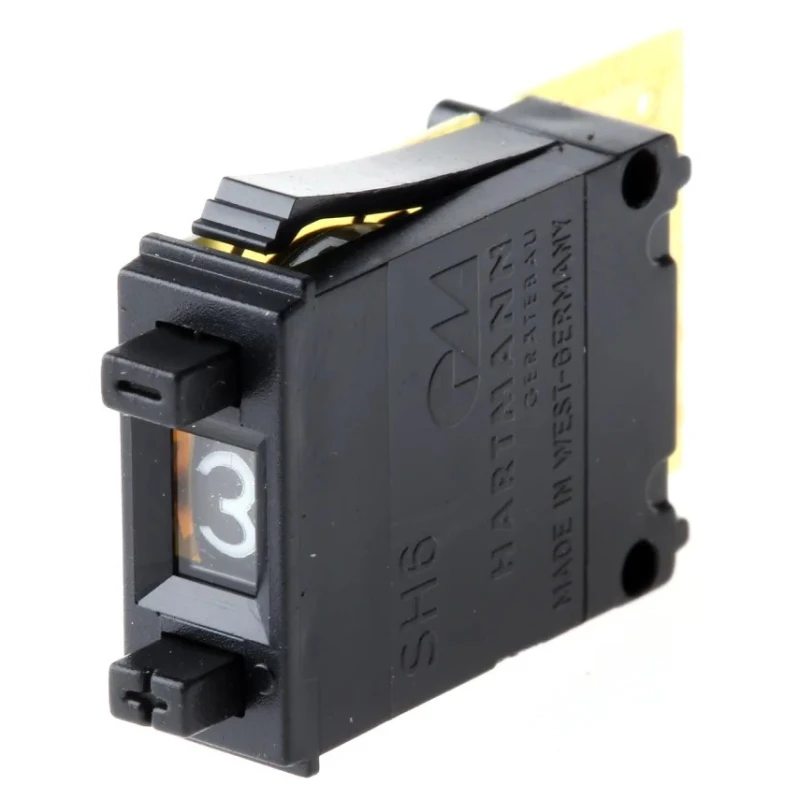

APEM Pushwheel Switch BCD Through Hole Panel Mount 100 mΩ Contact Resistance 10 Positions 100mA 40V SH6-131-AK2

The APEM SH6-131-AK2 is a sub-miniature pushwheel switch engineered for precision panel-mounted applications requiring encoded output and reliable electrical performance. This pushwheel switch features BCD output coding with ten distinct positions allowing accurate selection of settings or parameters, suitable for industrial, electrical, automation, and instrumentation uses.

With gold over nickel plated copper contacts, the SH6-131-AK2 ensures minimal contact resistance at 100 mΩ, delivering consistent conduction and robustness in demanding operational conditions. The device supports a safe current rating of 100mA at 40 volts, adequate for low-power control circuits commonly found in measurement and control systems.

Its panel mount design uses through-hole terminals, facilitating secure mechanical and electrical connections. An audible click accompanied by snap action provides tactile and audible feedback during operation, enhancing user confidence in switch position changes. The mechanical life of one million cycles underlines its durability and reliability for repeated switching actions.

Functionally tested to DIN and IEC standards, this switch operates reliably between -20°C and 80°C, accommodating a wide range of industrial environments. Its compact SH6 series design allows efficient space utilization on control panels and instrumentation devices.

Gold over nickel plated copper contacts provide superior conductivity and longevity. Low contact resistance of 100 milliohms optimizes electrical performance. Ten selectable positions decoded in BCD for precise control outputs.

Mechanical durability rated for 1,000,000 operational cycles. Through-hole terminals secure robust mounting and electrical connection. Compliant with DIN and IEC standards ensuring quality and interoperability. Operational temperature range from -20°C to 80°C suits diverse working conditions.

Snap action mechanism with audible click aids operator feedback. Compact panel mount pushwheel switch suitable for automation and instrumentation.

This APEM Pushwheel Switch is ideal in industrial automation systems, electrical control panels, instrumentation, laboratory equipment, and other commercial or industrial environments requiring reliable rotary input selection and encoded outputs. Available from EnvMart to support your precise control needs, the SH6-131-AK2 adds durable functionality to your control hardware.
