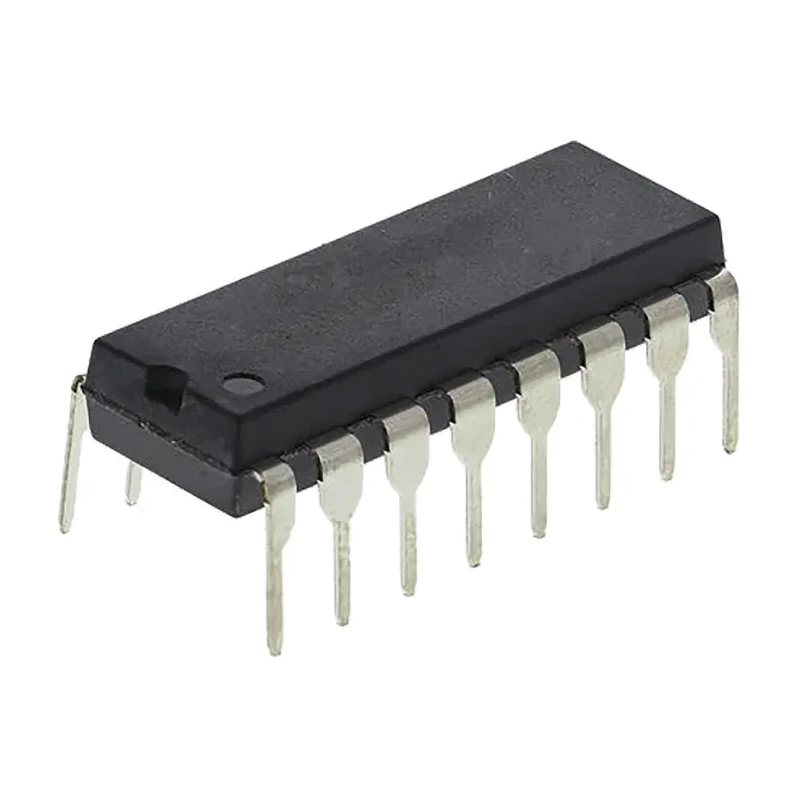

Vishay DG202BDJ-E3 Analogue Switch 4 CMOS Quad SPST 16-Pin PDIP DG202BDJ-E3
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 3.81mm |
| Length | 21.33mm |
| Model | DG202BDJ-E3 |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | DG202B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-4591Brand: VishayManufacturers Part No.: DG202BDJ-E3 |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- Operates with a logic family of CMOS ensuring low power consumption and high reliability.
- Includes 4 independent switch elements per chip configured as Quad SPST.
- Supports minimum supply voltage of -22V and maximum supply voltage of 22V.
- Maximum on-state resistance of 200 ohms guaranteeing effective signal transmission.
- Designed for through hole mounting in a PDIP package type for robust integration into PCBs.
- Operating temperature ranges from -40°C to 85°C, making it suitable for diverse environmental conditions.
- Compact dimensions with a length of 21.33mm, width of 7.11mm, and height of 3.81mm for space-efficient PCB design.
- Compatible output types include CMOS and TTL digital logic circuits.
Product Description
Vishay DG202BDJ-E3 Analogue Switch is a high-accuracy, low power consumption device designed for use in precise electronic signal switching applications. This 4 CMOS Quad Single-Pole Single-Throw (SPST) switch integrates 4 elements in a 16-pin PDIP package, ensuring efficient switching and easy installation through standard through hole mounting.
The switch operates over a wide supply voltage range from -22V to 22V and maintains a maximum on-state resistance of 200Ω, making it suitable for a variety of test equipment, measuring instruments, and computer peripheral devices. Its operating temperature range of -40°C to 85°C makes it robust under diverse environmental conditions.
The device is compatible with digital logic families, supporting both CMOS and TTL output types, allowing flexible deployment in mixed-signal systems. Its compact physical dimensions (21.33mm length, 7.11mm width, and 3.81mm height) facilitate space-saving PCB layouts. The DG202BDJ series is recognized for its reliable switching performance and is manufactured in the Philippines, assuring quality and consistency.
Operates with CMOS logic family featuring low power consumption. Quad SPST configuration offers four independent switching paths. Wide supply voltage range from -22V to 22V suits multiple applications. Low maximum on-state resistance of 200Ω enables efficient signal conduction.
Through hole mount with 16-pin PDIP package ensures sturdy mechanical connection. Functional across industrial temperature ranges making it suitable for harsh environments. Compact and standard dimensions to suit diverse PCB designs.
This analogue switch is ideal for industrial, laboratory, and electronic manufacturing uses where reliable signal routing is essential. It supports use in instrumentation, computer peripherals, automated test equipment, and general electronic circuit design contexts.
Explore the wide range of semiconductor components including Analogue Switches at EnvMart for trusted electronic components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range from -22V to 22V, making it suitable for various applications.
The maximum on-state resistance is 200Ω, ensuring effective signal transmission.
It has compact dimensions of 21.33mm in length, 7.11mm in width, and 3.81mm in height, facilitating space-efficient PCB design.
This unit is designed for through hole mounting, which allows for robust integration into PCBs.
The operating temperature range is from -40°C to 85°C, making it suitable for diverse environmental conditions.
It supports both CMOS and TTL output types, allowing flexible deployment in mixed-signal systems.
This analogue switch integrates 4 independent switch elements per chip, configured as Quad SPST.
It operates with a CMOS logic family, ensuring low power consumption and high reliability.
This model features a pin count of 16, which is standard for its package type.
The device is manufactured in the Philippines, assuring quality and consistency.
The DG202BDJ-E3 is part of the DG202B series, recognized for its reliable switching performance.
It is ideal for use in instrumentation, computer peripherals, automated test equipment, and general electronic circuit design contexts.
