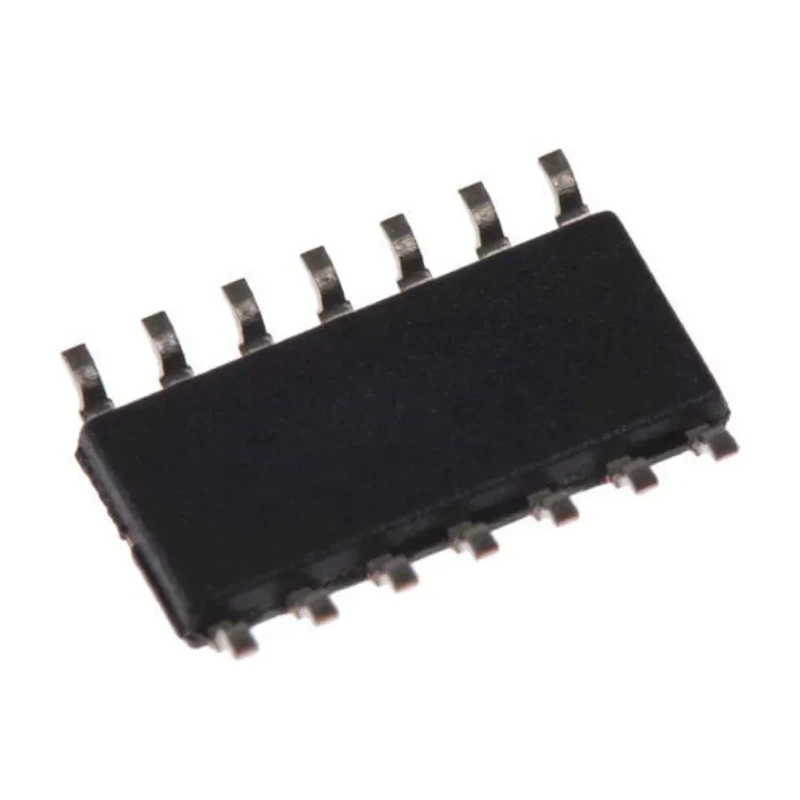

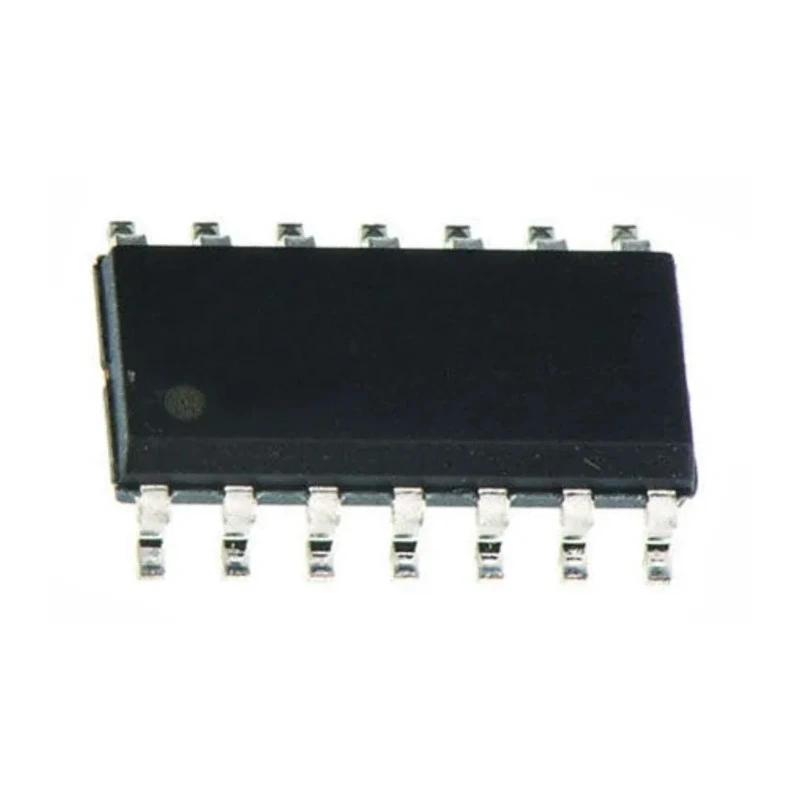

Nexperia Analogue Switch 4 CMOS SPST 14-Pin SO-16 HEF4066BT,653
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.45mm |
| Length | 8.75mm |
| Model | HEF4066BT,653 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | HEF4066B |
| Configuration | SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-16 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 15V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 3V |
| Wide operating voltage range | 3 to 18V |
| Maximum On State Resistance | 2.5kΩ |
Key Features
- Operates within a minimum voltage of 3V and maximum voltage of 15V.
- Contains 4 separate single-pole single-throw (SPST) switches integrated in CMOS technology.
- Low maximum on-state resistance of 2.5kΩ ensures efficient signal transmission.
- Wide operating temperature range from -40°C to 125°C for reliable performance in various environments.
- Compact surface mount SO-16 package with dimensions 8.75mm length, 4mm width, and 1.45mm height.
- Complies with RoHS standards for environmental safety.
- Ideal for use in electronic systems requiring analog signal routing or multiplexing.
- Not suitable for automotive applications as per specification.
Product Description
Nexperia HEF4066BT,653 analogue switch is a 4 CMOS SPST semiconductor device housed in a 14-pin SO-16 surface-mount package, designed for use in a wide range of electronic circuit applications. It features a CMOS logic family construction providing low power consumption and reliable analog signal switching capabilities.
This device operates over a wide supply voltage range from 3V to 15V and has a maximum on-state resistance of 2.5kΩ, making it suitable for efficient analog switch multiplexing in electronic circuits. Its operating temperature range from -40°C to 125°C ensures durability in demanding industrial and laboratory environments.
The compact SO-16 package measures 8.75mm in length, 4mm in width, and 1.45mm in height, facilitating space-saving PCB designs in applications such as signal routing, multiplexers, and demultiplexers.
Designed in compliance with RoHS environmental standards, the HEF4066BT,653 provides a balance of performance and eco-friendly manufacturing. Although it is part of the HEF4066B series, this component is not recommended for automotive standard applications.
Operates within a supply voltage range of 3V to 15V for versatile usage. Integrates 4 CMOS single-pole single-throw switches per chip. Low on-state resistance to minimize signal loss. Wide operating temperature range from -40°C to 125°C guaranteed for stable function.
Compact SO-16 surface mount package dimensions facilitate PCB integration. RoHS compliant for environmental and safety standards. Suitable for industrial, laboratory, and electronic circuit board applications. Not designed for automotive applications as per specification.
This analogue switch is ideal for industrial electronics, signal multiplexing in communication equipment, test and measurement instruments, and embedded systems requiring compact signal selectors. Its reliable CMOS architecture ensures low power consumption and stable operation.
Explore more high-quality Nexperia semiconductor components and Analogue Switches on EnvMart for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 3V to 15V.
The maximum on-state resistance is 2.5kΩ, ensuring efficient signal transmission.
The compact SO-16 package measures 8.75mm in length, 4mm in width, and 1.45mm in height.
It has an operating temperature range from -40°C to 125°C, suitable for various environments.
This device integrates 4 separate single-pole single-throw (SPST) switches.
It utilizes a CMOS logic family construction, providing low power consumption.
No, this analogue switch is not recommended for automotive applications as per specification.
This model is designed for surface mounting.
It complies with RoHS standards for environmental safety.
It is suitable for industrial electronics, signal multiplexing in communication equipment, and test and measurement instruments.
This model has a pin count of 14.
The configuration of the switches is single-pole single-throw (SPST).
