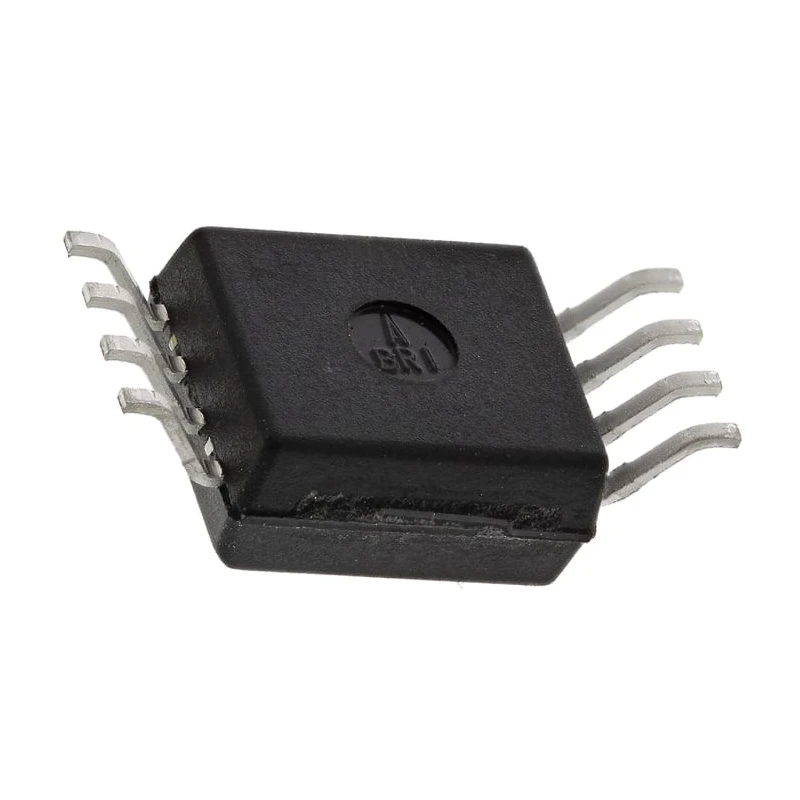

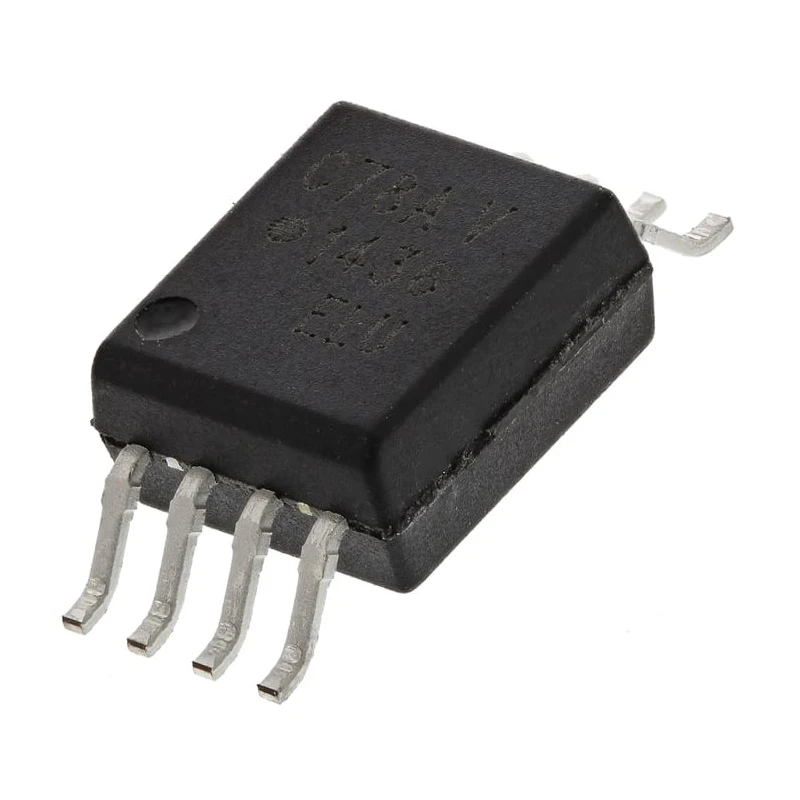

Broadcom 2-Channel Isolation Amplifier 8-Pin SSOP 4.5V-5.5V ACPL-C78A-060E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C78A-060E |
| Mount Type | Surface |
| Series | ACPL-C78A |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-0203Brand: BroadcomManufacturers Part No.: ACPL-C78A-060E |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 2 mV |
| Isolation Type | Miniature Isolation Amplifiers |
Key Features
- The device features two isolation channels for accurate signal transmission.
- It operates within a temperature range from -40°C to 85°C.
- Compact SSOP package with 5.85mm length and 3.18mm height enables space-saving PCB designs.
- Input offset voltage is low at 2 mV ensuring precise amplification.
- Miniature isolation amplifiers provide excellent common mode rejection performance.
- Surface mount type suitable for automated assembly processes.
- Ideal for industrial and power converter applications requiring isolation.
- Offers built-in safety insulation as an alternative to Hall Effect sensors.
Product Description
Broadcom ACPL-C78A-060E is a 2-channel isolation amplifier designed for industrial and electronic applications requiring high-precision isolation solutions. This device features a compact 8-pin SSOP package supporting surface mount technology, allowing easy integration into modern PCB layouts designed for space efficiency. The maximum supply voltage rating is 5.5V with a typical operating range between 4.5V and 5.5V, suitable for low-voltage industrial control systems.
Operating in temperatures from -40°C to 85°C, the ACPL-C78A-060E ensures reliability in harsh environments. Its input offset voltage of 2 millivolts guarantees accurate signal amplification and isolation, making it suitable for current and voltage sensing in motor drives, power inverters, and other power converter circuits.
The miniature isolation technology offers excellent common mode rejection and built-in safety insulation, providing a robust alternative to traditional Hall Effect isolation amplifiers. The device complies with RoHS standards, ensuring environmental safety and regulatory compliance.
Industrial applications include use in power management, manufacturing equipment, HVAC systems, and other sectors requiring isolated signal transfer to prevent electrical noise and voltage spikes from affecting sensitive electronic controls.
Two isolated input channels for signal integrity. Compact SSOP package for space-constrained designs. High common mode rejection enhances noise immunity. Suitable for industrial and power electronics applications. Reliable operation over wide temperature range.
Low input offset voltage for precision amplification. Surface mount mounting type for automated assembly. Built-in safety insulation for operator and equipment protection. Compliance with environmental RoHS standards. Ideal replacement for Hall Effect isolation devices.
Explore the full range of Broadcom Isolation Amplifiers and related semiconductor products at EnvMart for your industrial, electronic, and power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range from -40°C to 85°C, ensuring reliability in harsh environments.
The input offset voltage is low at 2 mV, which ensures precise amplification of signals.
The device has a length of 5.85 mm and a height of 3.18 mm, making it suitable for space-constrained PCB designs.
It features two isolated input channels for enhanced signal integrity.
The maximum supply voltage rating is 5.5V, with a typical operating range between 4.5V and 5.5V.
This model supports surface mount technology, which is suitable for automated assembly processes.
It is ideal for industrial applications including power management, manufacturing equipment, and HVAC systems requiring isolated signal transfer.
It uses miniature isolation technology, providing excellent common mode rejection performance.
Yes, it complies with RoHS standards, ensuring environmental safety and regulatory compliance.
This isolation amplifier has a pin count of 8.
It belongs to the ACPL-C78A series of isolation amplifiers from Broadcom.
It offers built-in safety insulation and high common mode rejection, enhancing noise immunity and operator protection.
