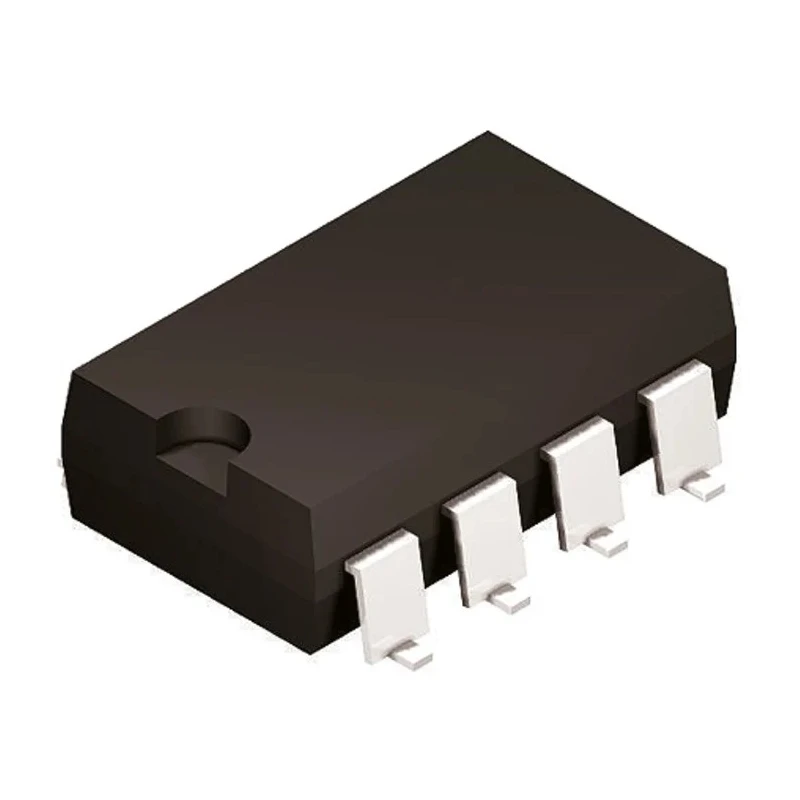

Broadcom Isolation Amplifier 8-Pin 5.5V PDIP HCPL-7510-300E

Broadcom HCPL-7510-300E Isolation Amplifier is a precision semiconductor device designed to provide electrical isolation and signal conversion in industrial and electronic circuits. Featuring a single isolation channel, the device is packaged in an 8-pin PDIP (Plastic Dual Inline Package) format suitable for through-hole mounting on printed circuit boards.

This amplifier operates reliably within a supply voltage range from 4.5V up to a maximum of 5.5V, making it versatile for various low-voltage electronic systems. It offers a low input offset voltage of 6 millivolts, ensuring accurate signal reproduction with minimized error.

The device includes a high common mode rejection ratio (CMRR) rating of 63 dB, enhancing its ability to reject noise and interference in signal transmission, perfect for environments with electrical disturbances. Its operating temperature range from -40°C to +85°C allows use in a wide range of industrial applications including semiconductor circuitry, power and connector assemblies, and signal processing modules.

With compact dimensions of 9.8mm length and 3.56mm height, the HCPL-7510-300E fits efficiently within dense PCB layouts without imposing significant space requirements. The package includes 8 pins facilitating secure mounting and electrical connectivity. While it does not meet specific automotive standards, it suits numerous electronic and power connector use cases.

Operates at 4.5V to 5.5V supply voltage for versatility. Input offset voltage of 6 mV allows accurate signal isolation. Common mode rejection ratio of 63 dB for noise reduction. Wide operating temperature range from -40°C to +85°C.

Compact 8-pin PDIP package for through-hole PCB mounting. Dimensions: 9.8mm length, 3.56mm height. Single channel isolation amplification functionality. Useful in electronic components, power connectors, and semiconductor applications.

This isolation amplifier is a key component in industrial electronics, semiconductor manufacturing, power control systems, and signal integrity applications. Its reliable performance and compact form factor make it highly suitable for integration in laboratory devices and manufacturing equipment needing electrical isolation.
