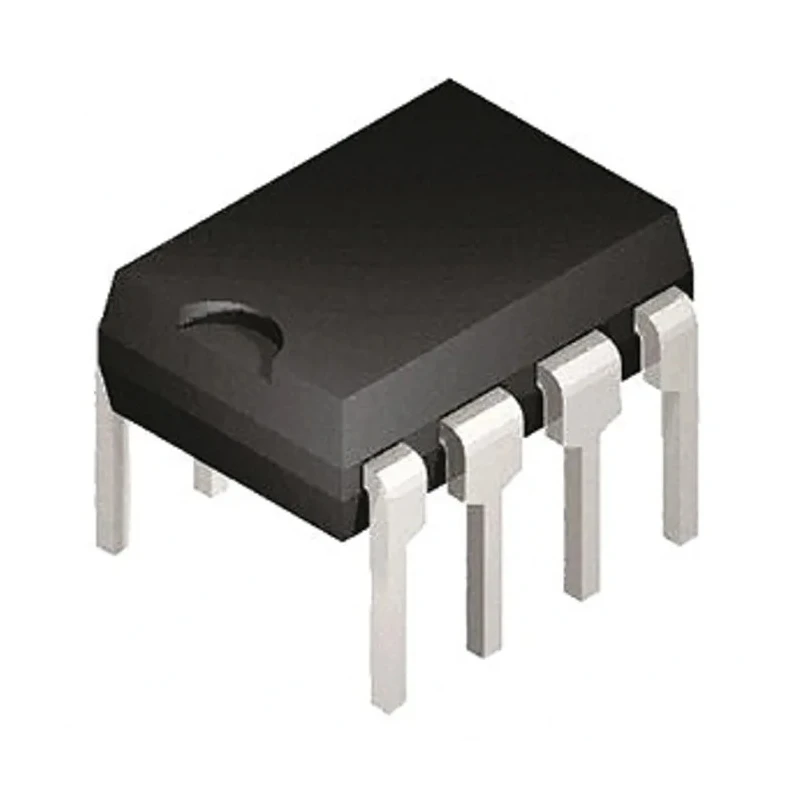

Broadcom Isolation Amplifier, 1 Channel, Reinforced Isolation, 8-Pin DIP-8, 4.5-5.5 V Supply, ACPL-782T-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Isolation Amplifier, 1 Channel, Reinforced Isolation, 8-Pin DIP-8, 4.5-5.5 V Supply, ACPL-782T-000E

Name: Broadcom Isolation Amplifier, 1 Channel, Reinforced Isolation, 8-Pin DIP-8, 4.5-5.5 V Supply, ACPL-782T-000E
Brand: Broadcom
SKU: 377159
Price: 16.66 USD
Availability: InStock



Category Isolation Amplifier Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	1.78mm
Length	9.8mm
Model	ACPL-782T-000E
Mount Type	Through Hole
Series	ACPL-782T
Maximum Operating Temperature	125°C
Package Type	DIP-8
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Vos - Input Offset Voltage	0.3 mV
CMRR - Common Mode Rejection Ratio	76dB
Isolation Type	Reinforced

Key Features

Utilizes reinforced isolation technology for safe signal separation.
Operates reliably within -40°C to 125°C temperature range.
Offers high common mode rejection ratio of 76 dB for precision measurement.
Compact DIP-8 through-hole mount package measuring 9.8 mm length and 1.78 mm height.
Ideal for current and voltage sensing in industrial motor drives and power inverters.
Designed according to automotive standard AEC-Q100 for enhanced reliability.
Includes built-in safety insulation compliant with UL 1577 and IEC 60747-5-5 standards.
Features low input offset voltage of 0.3 mV for accurate signal amplification.

Product Description

Broadcom ACPL-782T-000E Isolation Amplifier is a precision reinforced isolation amplifier with a single channel, housed in an 8-pin DIP-8 package. Operating within a supply voltage range of 4.5 V to 5.5 V, it delivers reliable performance in harsh industrial environments.

This isolation amplifier utilizes sigma-delta modulator technology to provide precise measurement of phase currents and bus voltages, making it effective for use in motor drives, power inverters, and general isolation circuits.

Its reinforced isolation type supports a high isolation voltage of 3750 Vrms, ensuring electrical safety and protection. With a wide operating temperature range from -40°C to 125°C, it suits demanding automotive and industrial applications compliant with the automotive AEC-Q100 standard.

The device features a high common mode rejection ratio (CMRR) of 76 dB and a low input offset voltage of 0.3 mV, ensuring accurate signal integrity. Its compact size (9.8 mm length, 1.78 mm height) and through-hole DIP-8 mounting type facilitate easy PCB integration.

Broadcom’s ACPL-782T series meets multiple international standards including UL 1577, IEC 60747-5-5, CSA, and DIN EN 60747-5-2 (VDE 0884 Teil 2), embodying built-in safety insulation for optimum performance and reliability.

Reinforced isolation amplifier with 3750 Vrms isolation voltage. Precision sigma-delta modulation technology for accurate current and voltage sensing. Compliant with automotive standard AEC-Q100 for high reliability. Compact 8-pin DIP package suitable for through-hole mounting.

Wide operating temperature from -40°C to 125°C for industrial use. Built-in safety insulation meeting UL and IEC standards. Low input offset voltage and high CMRR for signal accuracy. Suitable for industrial, automotive, and power electronics applications.

Explore more in the Isolation Amplifiers category at EnvMart for a broad selection of precision isolation solutions from leading brands including Broadcom.
