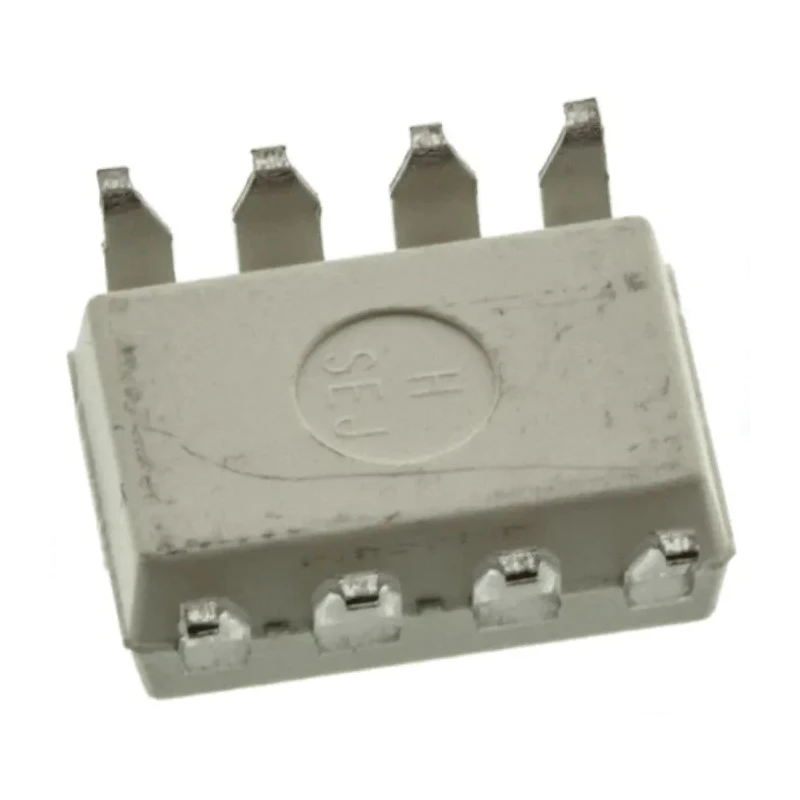

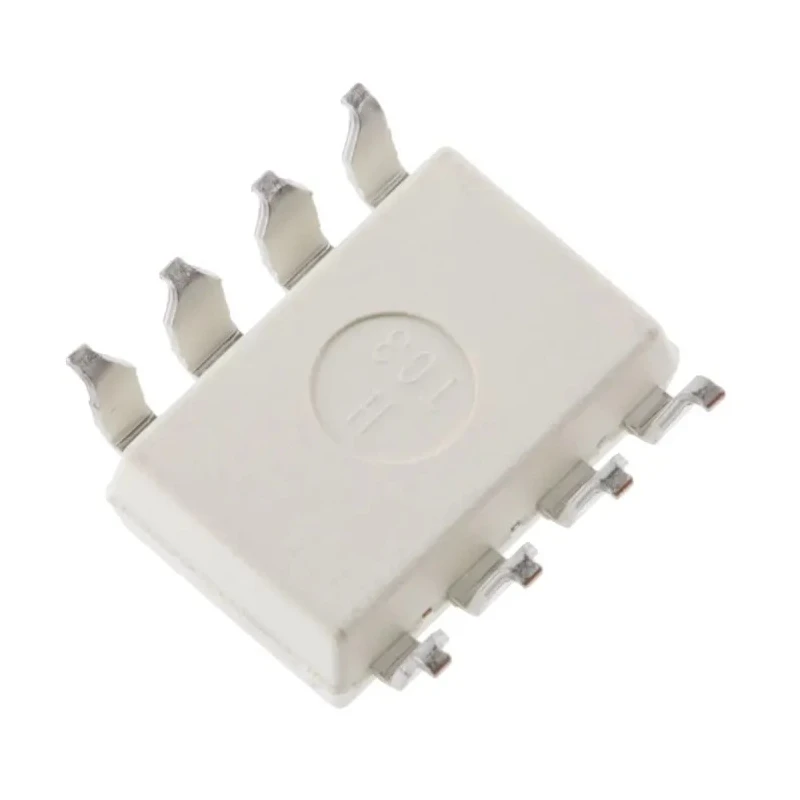

Broadcom Isolation Amplifier, 8-Pin PDIP, 5V to 5.5V Supply Voltage HCPL-7840-300E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Isolation Amplifier, 8-Pin PDIP, 5V to 5.5V Supply Voltage HCPL-7840-300E

Name: Broadcom Isolation Amplifier, 8-Pin PDIP, 5V to 5.5V Supply Voltage HCPL-7840-300E
Brand: Broadcom
SKU: 389561
Price: 6.08 USD
Availability: InStock



Category Isolation Amplifier Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	3.56mm
Length	9.8mm
Model	HCPL-7840-300E
Mount Type	Surface
Series	HCPL-7840
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	5V
Vos - Input Offset Voltage	0.3 mV
CMRR - Common Mode Rejection Ratio	76.1dB

Key Features

Operates with a minimum supply voltage of 5V and maximum supply voltage of 5.5V.
Single channel isolation amplifier ideal for industrial signal conditioning.
Features a compact 8-pin PDIP surface mount package.
Low input offset voltage of 0.3 mV for enhanced signal accuracy.
Common mode rejection ratio (CMRR) of 76.1 dB ensures effective noise rejection.
Wide operational temperature range from -40°C to 85°C for harsh environments.
Complies with automotive standard AEC-Q100 for reliability.
Package dimensions approximately 9.8mm length and 3.56mm height.

Product Description

Broadcom HCPL-7840-300E isolation amplifier is an 8-pin PDIP device designed to provide reliable electrical isolation with precise signal transmission. It operates over a supply voltage range of 5V to 5.5V, making it suitable for various industrial and automotive applications requiring isolation of high voltages or noisy signals.

This single channel isolation amplifier uses sigma-delta modulator technology to deliver accurate phase current and bus voltage measurements. It boasts a low input offset voltage of 0.3 mV, enhancing signal integrity and precision in critical sensing applications.

The device features a high common mode rejection ratio (CMRR) of 76.1 dB, which effectively suppresses common mode noise and interference, critical for robust sensor signals in power converters and motor drive systems. It is housed in a compact 8-pin PDIP surface mount package measuring approximately 9.8 mm in length and 3.56 mm in height.

Designed to operate reliably within a broad temperature range of -40°C to 85°C, this Broadcom isolation amplifier meets the stringent automotive standard AEC-Q100, ensuring durability and performance in demanding environments.

These isolation amplifiers from Broadcom serve as ideal alternatives to Hall Effect isolation amplifiers, providing precise and safe measurement for current and voltage sensing in power inverters and industrial isolation circuits.

Operates between 5V and 5.5V supply voltage. Single channel for isolated signal measurement. 8-pin PDIP surface mount package. 0.3 mV input offset voltage ensures measurement accuracy. 76.1 dB CMRR for superior noise rejection.

Automotive compliant to AEC-Q100 standard. Wide operating temperature range of -40°C to 85°C. Compact package dimensions: 9.8 mm length, 3.56 mm height.

This Broadcom Isolation Amplifier is suitable for industrial, automotive, and power electronics applications requiring safe and accurate signal isolation. Explore EnvMart's extensive selection of semiconductor amplification devices for all your precision electronic component needs.
