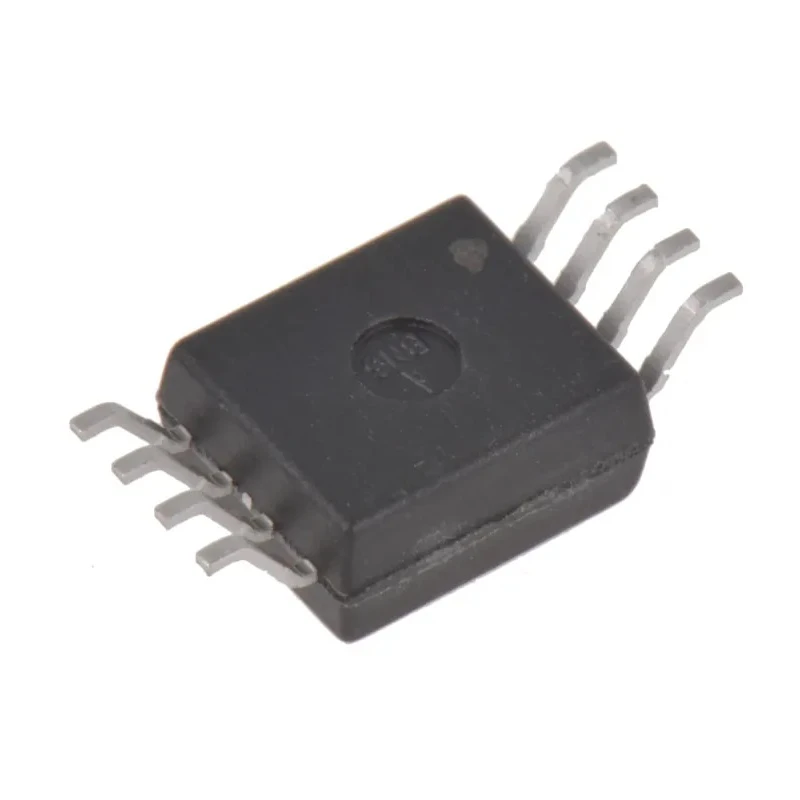

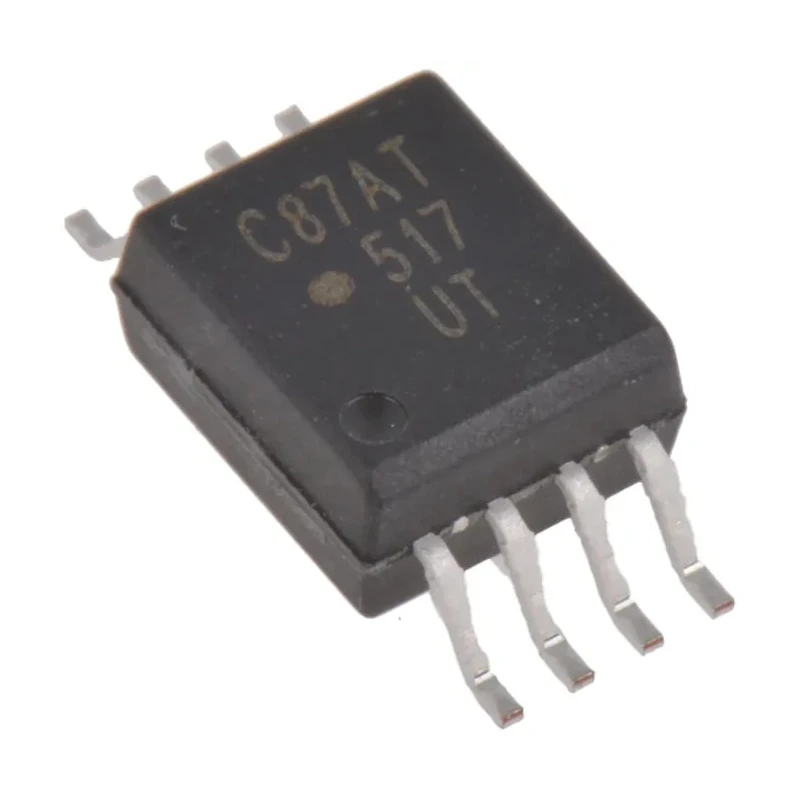

Broadcom Isolation Amplifier, 8-Pin SOIC Package, 3V - 5.5V Supply, Precision Optically Isolated Voltage Sensor ACPL-C87AT-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C87AT-000E |
| Mount Type | Surface |
| Series | ACPL-C870 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Vos - Input Offset Voltage | 9.9 mV |
| Isolation Type | Precision Optically Isolated Voltage Sensor |
Key Features
- Features 1 channel for accurate voltage isolation.
- Compact SOIC package with 8 pins for easy PCB mounting.
- Input offset voltage of 9.9 mV ensures signal accuracy.
- Operates reliably from -40°C to 125°C for industrial environments.
- Implements precision optical isolation for safety and noise immunity.
- Suitable for industrial applications requiring high common mode rejection.
- Part of the ACPL-C870 series providing robust isolation amplifier performance.
Product Description
Broadcom ACPL-C87AT-000E is an advanced isolation amplifier designed to provide precise voltage sensing with optical isolation in harsh industrial environments. This 8-pin SOIC device is surface mountable and operates with a supply voltage range from 3 V minimum to 5.5 V maximum, making it compatible with low voltage industrial control systems.
The device features a single channel isolation with a low input offset voltage of 9.9 mV, which ensures measurement accuracy in applications such as motor drives, power inverters, and general-purpose isolation circuits.
Constructed with precision optically isolated voltage sensor technology, this isolation amplifier provides a high common mode rejection ratio and safety isolation compliance suitable for industrial automation and signal conditioning tasks.
Temperature operating range from -40°C to 125°C allows use in demanding environments, ensuring reliable performance. The compact SOIC package measures 5.85 mm in length and 3.18 mm in height, facilitating integration into printed circuit boards with limited space.
Features 1 channel for accurate voltage isolation. Compact 8-pin SOIC surface mount package. Low input offset voltage of 9.9 mV for precise sensing. Operating temperature range from -40°C to 125°C. Precision optical isolation technology for safety and noise immunity.
Suitable for industrial and motor control applications. Part of the reliable ACPL-C870 series. High common mode rejection performance ensures signal integrity. This Broadcom isolation amplifier is ideal for industrial, laboratory, manufacturing, and commercial applications requiring safe and isolated voltage sensing solutions.
Explore the Electronics & Electricals category on EnvMart for more quality semiconductor components and Isolation Amplifiers from leading brands like Broadcom.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This isolation amplifier operates with a supply voltage range from 3 V minimum to 5.5 V maximum.
The input offset voltage is 9.9 mV, which ensures measurement accuracy.
It operates reliably within a temperature range from -40°C to 125°C.
This model features a single channel for accurate voltage isolation.
It comes in a compact 8-pin SOIC surface mount package.
The maximum operating temperature is 125°C.
It utilizes precision optical isolation technology for safety and noise immunity.
The dimensions are 5.85 mm in length and 3.18 mm in height.
It is part of the ACPL-C870 series, which provides robust isolation amplifier performance.
It is suitable for industrial applications requiring high common mode rejection, such as motor drives and power inverters.
It provides a high common mode rejection ratio, ensuring signal integrity.
The country of origin for this isolation amplifier is India.
