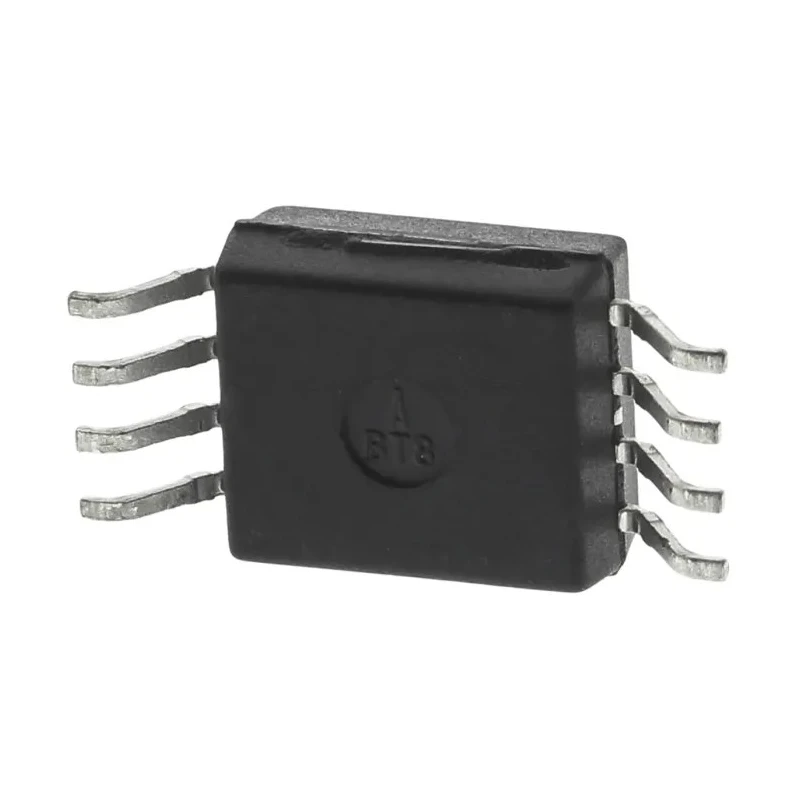

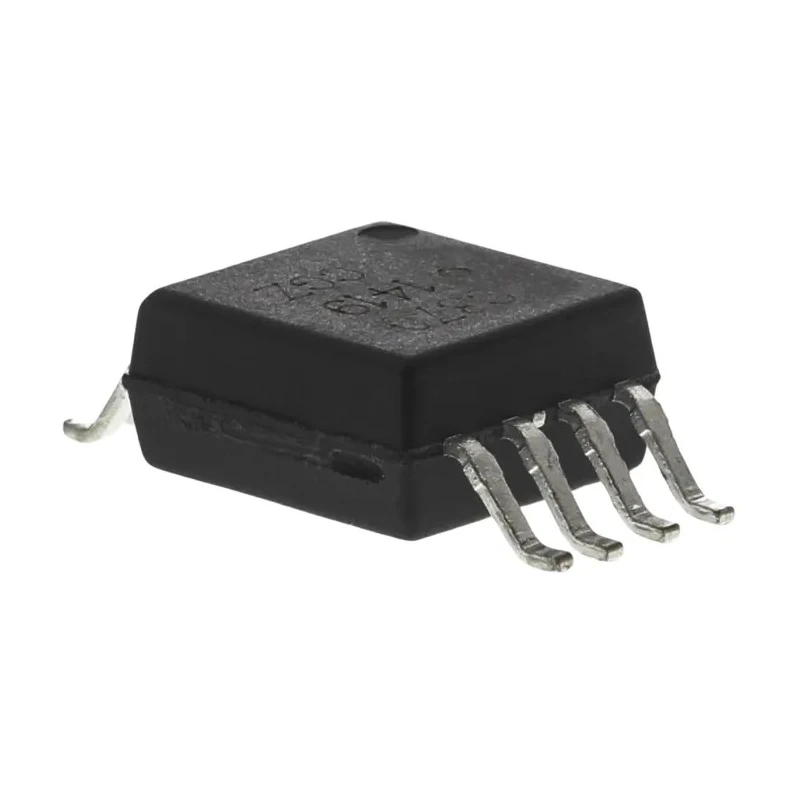

Broadcom Isolation Amplifier 8-Pin 5.5V Surface Mount SSOP Package ACPL-C870-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Isolation Amplifier 8-Pin 5.5V Surface Mount SSOP Package ACPL-C870-000E

Name: Broadcom Isolation Amplifier 8-Pin 5.5V Surface Mount SSOP Package ACPL-C870-000E
Brand: Broadcom
SKU: 389589
Price: 5.27 USD
Availability: InStock



Category Isolation Amplifier Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	3.18mm
Length	5.85mm
Model	ACPL-C870-000E
Mount Type	Surface
Series	ACPL-C870
Maximum Operating Temperature	105°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Vos - Input Offset Voltage	9.9 mV
Isolation Type	Precision Optically Isolated Voltage Sensor

Key Features

Operates with a minimum supply voltage of 4.5V and a maximum of 5.5V.
Features a single channel for precise signal isolation.
Packaged in an SSOP form factor for easy surface mounting.
Offers a low input offset voltage of 9.9 mV for accurate measurements.
Designed with a precision optically isolated voltage sensor for high common mode rejection.
Temperature range supports operation from -40°C to 105°C, suitable for industrial environments.
Compact dimensions with a length of 5.85 mm and height of 3.18 mm.
Ideal for current and voltage sensing in motor drives, power inverters, and isolation circuits.

Product Description

Broadcom ACPL-C870-000E isolation amplifier is a precision 8-pin device packaged in a surface-mount SSOP form, operating from 4.5V to 5.5V supply voltage. It provides a single isolated channel using precision optically isolated voltage sensor technology that enables accurate measurement of phase current and bus voltage in industrial settings.

This device features a low input offset voltage of 9.9 mV, ensuring high accuracy in sensing applications. The unit operates safely over a broad temperature range from -40°C to 105°C, making it suitable for demanding environments such as motor drives, power inverters, and general voltage isolation circuits.

The compact 5.85 mm length and 3.18 mm height profile allow for space-efficient PCB design. This isolation amplifier offers high common mode rejection and built-in safety insulation, serving as a robust alternative to Hall Effect isolation amplifiers.

It is ideal for industrial, manufacturing, power electronics, and laboratory applications requiring precision signal isolation and voltage sensing. Operates with 4.5V to 5.5V supply voltage. Single channel isolation for precise signal measurement.

Surface mount SSOP package with 8 pins for efficient PCB integration. Low input offset voltage of 9.9 mV for high accuracy. Precision optically isolated voltage sensor technology ensures excellent common mode rejection. Wide operating temperature range of -40°C to 105°C suitable for harsh environments.

Compact dimensions enable flexible design configurations. Provides built-in safety insulation for enhanced protection. Designed for power converters, motor drives, and voltage isolation applications. Browse EnvMart for more Broadcom semiconductor Isolation Amplifiers and industrial electronics components.
