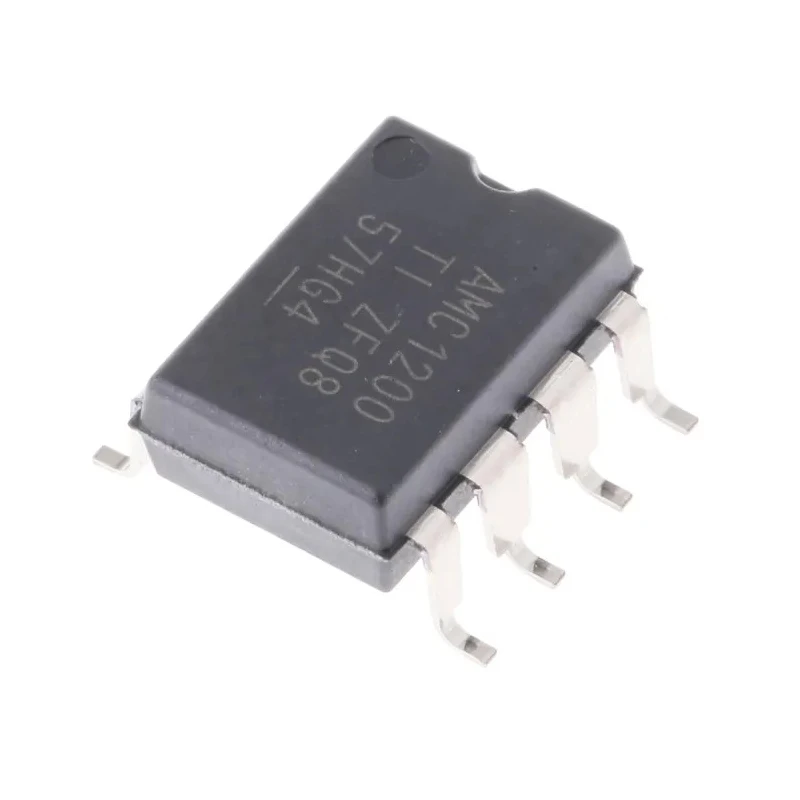

Texas Instruments Isolation Amplifier 8-Pin 6V SOP AMC1200SDUBR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.35mm |
| Length | 9.55mm |
| Model | AMC1200SDUBR |
| Mount Type | Surface |
| Series | AMC1200 |
| Maximum Operating Temperature | 105°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Isolation Voltage | 4250V |
| Minimum Supply Voltage | 5V |
| Vos - Input Offset Voltage | 1.5 mV |
| CMRR - Common Mode Rejection Ratio | 108dB |
Key Features
- Operates between 5V minimum and 6V maximum supply voltages.
- Provides high common-mode rejection ratio of 108 dB for precise signal isolation.
- Features one channel with surface mount type and 8 pins in SOP package.
- Supports operating temperatures from -40°C to 105°C.
- Offers isolation voltage rating up to 4250V to ensure system safety.
- Compact dimensions of 9.55mm length and 3.35mm height for PCB integration.
- Input offset voltage is low at 1.5 mV ensuring accurate amplification.
- Part of the AMC1200 series without automotive standard compliance.
Product Description
Texas Instruments AMC1200SDUBR is a high-performance isolation amplifier designed to provide galvanic isolation between input and output signals in industrial and electronic applications. This device features an 8-pin SOP package, compact size, and supports supply voltages between 5V and 6V, making it ideal for low-voltage environments.
With a common-mode rejection ratio of 108 dB, the isolation amplifier ensures high precision signal amplification, effectively rejecting interference from noise and ground potential differences. Its input offset voltage of 1.5 mV further enhances measurement accuracy in sensitive circuits.
The AMC1200SDUBR maintains reliable operation in harsh environmental conditions with an operating temperature range from -40°C to 105°C. Its high isolation voltage of 4250V protects system components and operators from high-voltage transients and faults.
The surface mount SOP package with 8 pins, compact length of 9.55mm and height of 3.35mm, facilitates easy integration into printed circuit boards (PCBs) for industrial, laboratory, and embedded electronic systems.
Typical applications include industrial automation, data acquisition systems, signal conditioning, and medical equipment requiring safe and accurate isolation of analog signals. Operates at 5V to 6V supply voltage for low power consumption.
High common mode rejection ratio of 108 dB ensures noise immunity. Single channel configuration supports isolated signal path. Compact 8-pin SOP surface mount package for PCB assembly. Wide operating temperature range from -40°C to 105°C.
Isolation voltage up to 4250V for high safety requirements. Low offset voltage of 1.5 mV for accuracy.
This isolation amplifier is classified under the semiconductor category for Isolation Amplifiers in the electronics and electricals industry. It supports designers and engineers in creating safe, efficient, and reliable isolated signal systems. Browse related amplifiers and semiconductor devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This isolation amplifier operates between a minimum supply voltage of 5V and a maximum supply voltage of 6V.
The AMC1200SDUBR offers an isolation voltage rating of up to 4250V, ensuring safety in high-voltage applications.
It features a high common-mode rejection ratio of 108 dB, which helps in rejecting noise and ground potential differences.
This model has a compact length of 9.55mm and a height of 3.35mm, making it suitable for PCB integration.
The input offset voltage is low at 1.5 mV, enhancing the accuracy of signal amplification.
It supports an operating temperature range from -40°C to 105°C, making it suitable for harsh environments.
This isolation amplifier has a single channel configuration for isolated signal paths.
The AMC1200SDUBR comes in an 8-pin SOP (Small Outline Package) configuration for surface mounting.
Typical applications include industrial automation, data acquisition systems, signal conditioning, and medical equipment requiring safe signal isolation.
The AMC1200SDUBR is part of the AMC1200 series from Texas Instruments.
This model features a surface mount type, facilitating easy integration into printed circuit boards.
The country of origin for this isolation amplifier is India.
