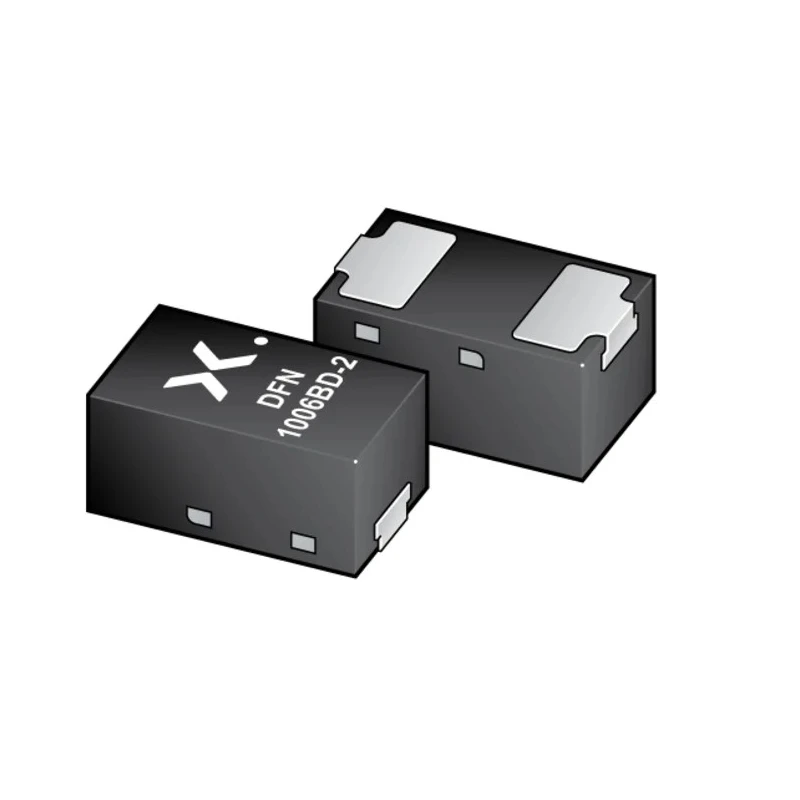

Nexperia Bi-Directional ESD Protection Diode 2-Pin Surface Mount DFN1006BD-2 PESD1IVN27-LSYL

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bi-Directional ESD Protection Diode 2-Pin Surface Mount DFN1006BD-2 PESD1IVN27-LSYL

Name: Nexperia Bi-Directional ESD Protection Diode 2-Pin Surface Mount DFN1006BD-2 PESD1IVN27-LSYL
Brand: Nexperia
SKU: 177159
Price: 0.07 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.6mm
Length	1mm
Model	PESD1IVN27-LSYL
Width	0.47mm
Mount Type	Surface
Series	PESD1IVN27-LS
Maximum Operating Temperature	150°C
Package Type	DFN1006BD-2
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS, IEC 61000-4-2
Pin Count	2
Clamping Voltage VC	45V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	28V
Maximum Reverse Stand-off Voltage Vwm	27V
Maximum Peak Pulse Current Ippm	3A
Maximum Reverse Leakage Current	50nA

Key Features

Features a bi-directional design suitable for protecting sensitive automotive and industrial circuits.
Designed in a 2-pin DFN1006BD-2 plastic package with side-wettable flanks.
Offers a reverse stand-off voltage of 27 V and a minimum breakdown voltage of 28 V.
Supports maximum peak pulse current of 3 A with low clamping voltage of 45 V.
Operates reliably from -65°C to 150°C, meeting automotive-grade standards AEC-Q101.
Ultra-low leakage current of 50 nA ensures minimal power loss during operation.
Certified to RoHS and IEC 61000-4-2 standards, providing trusted quality and compliance.
Ideal for protecting in-vehicle network bus lines from electrostatic damage.

Product Description

Nexperia PESD1IVN27-LSYL is a bi-directional ESD Protection Diode designed to safeguard sensitive automotive and industrial electronic circuits from electrostatic discharge damage. Packaged in a leadless ultra-small DFN1006BD-2 surface-mount device with side-wettable flanks, it offers an efficient and space-saving solution for PCB designs.

This diode provides a reverse stand-off voltage of 27 V and minimum breakdown voltage of 28 V, with a maximum peak pulse current rating of 3 A. It features a low clamping voltage of 45 V, which helps in limiting voltage spikes to safe levels. The ultra-low leakage current of 50 nA ensures minimal impact on circuit performance, conserving power.

Engineered to operate over a wide temperature range from -65°C to 150°C, this diode meets the rigorous AEC-Q101 automotive standard, making it suitable for in-vehicle network bus line protection. Compliance with RoHS and IEC 61000-4-2 underlines its quality and reliability in harsh industrial environments.

The diode’s compact physical size - length 1 mm, width 0.47 mm, and height 0.6 mm - facilitates integration into dense circuit layouts without compromising performance. Bi-Directional ESD protection for automotive and industrial applications.

Compact 2-pin DFN1006BD-2 surface-mount package. 27 V reverse stand-off voltage with 28 V breakdown voltage. 3 A maximum peak pulse current and 45 V clamping voltage. Low leakage current of 50 nA ensures power efficiency.

Wide operating temperature range from -65°C to 150°C. Meets AEC-Q101 automotive standard and RoHS compliance. Protects in-vehicle network bus lines against electrostatic discharge. Small dimensions for optimized PCB area usage.

This Nexperia PESD1IVN27-LSYL diode is ideal for applications across automotive electronics, industrial equipment, and any environment where ESD protection is critical. For further parts and related TVS diode products, explore EnvMart’s extensive semiconductor catalog offering reliable components suited to rigorous industrial standards.
