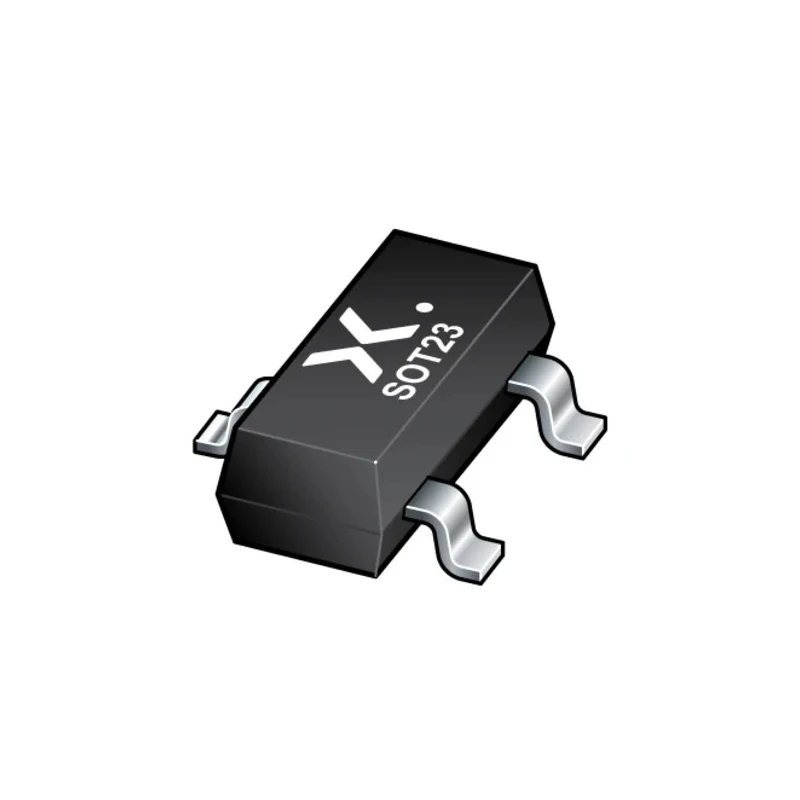

Nexperia Uni-Directional ESD Protection Diode 3-Pin SOT-23 PESD5V0F2UTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.9mm |
| Model | PESD5V0F2UTR |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD5V0F2UT |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 3.3V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 7.2V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 4A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Protects two high-speed data lines from electrostatic discharge damage.
- Features a minimum breakdown voltage of 7.2 volts.
- Constructed with a surface-mount SOT-23 package type for easy PCB integration.
- Maximum peak pulse current is rated at 4 amperes to handle transient voltages.
- Operates reliably from a minimum of -65°C up to a maximum of 150°C.
- Ultra-low capacitance of 0.47 pF minimizes signal distortion in high-frequency circuits.
- Complies with RoHS and IEC 61000-4-2 standards for quality and safety.
- Meets automotive standard AEC-Q101 ensuring robust performance in vehicle electronics.
Product Description
Nexperia PESD5V0F2UTR uni-directional ESD protection diode in a compact 3-pin SOT-23 surface-mount package is designed to protect two high-speed data lines from damage caused by electrostatic discharge (ESD) and other transient voltage events.
This diode features a minimum breakdown voltage (Vbr) of 7.2V and a maximum reverse stand-off voltage (VRWM) of 5V. It provides a maximum peak pulse current (Ippm) of 4A and a low clamping voltage (VC) of 3.3V, making it an excellent choice for safeguarding sensitive electronics in communication and data systems.
The device supports ultra-low capacitance of 0.47 pF, which is critical for maintaining signal integrity in high-frequency applications. It operates effectively across a broad temperature range from -65°C up to 150°C and complies with RoHS and IEC 61000-4-2 standards for environmental safety and electrical robustness.
Additionally, it meets the automotive standard AEC-Q101, ensuring high reliability in automotive electronic systems.
Its compact physical dimensions of 2.9 mm length, 1 mm width, and 1.3 mm height allow easy placement in high-density PCB layouts. This diode is widely applicable in industrial, automotive, and consumer electronics circuits that require reliable ESD protection.
Protects high-speed data lines from electrostatic discharge. Low clamping voltage minimizes voltage spikes. High peak pulse current capacity for transient handling. Ultra-low capacitance suited for high-frequency signals.
Wide temperature operating range ensures durability. Compliant with RoHS and IEC 61000-4-2 standards. Automotive grade AEC-Q101 certification. Compact SOT-23 surface mount package. Suitable for industrial, automotive, and consumer electronics.
Explore the range of ESD Protection Diodes within the electronics and semiconductor category at EnvMart for enhanced circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage (Vbr) of the PESD5V0F2UTR diode is 7.2 volts.
This model has a maximum peak pulse current (Ippm) rating of 4 amperes.
The clamping voltage (VC) of this diode is 3.3 volts.
It operates reliably within a temperature range from -65°C to 150°C.
The dimensions of the SOT-23 package are 2.9 mm in length, 1 mm in width, and 1.3 mm in height.
Yes, it complies with RoHS and IEC 61000-4-2 standards for quality and safety.
The maximum reverse stand-off voltage (VRWM) is 5 volts.
This diode meets the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The maximum reverse leakage current is rated at 50 nA.
It provides uni-directional ESD protection for two high-speed data lines.
This model features an ultra-low capacitance of 0.47 pF, which minimizes signal distortion in high-frequency circuits.
It is designed for surface mounting in electronic circuits.
