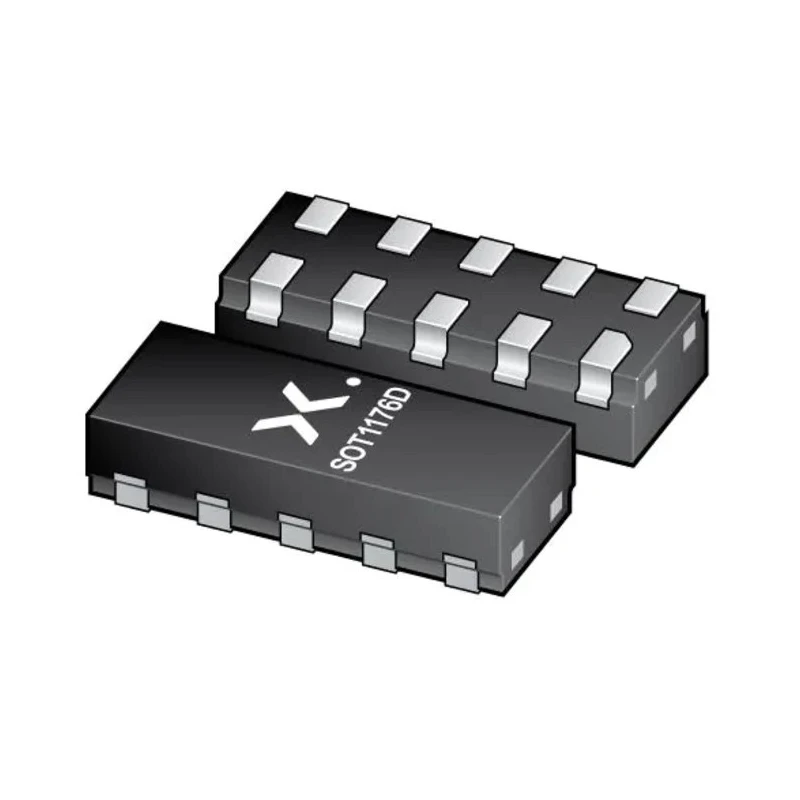

Nexperia Bi-Directional ESD Protection Device 10-Pin DFN2510D PESD4USB3B-TBSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3B-TBSX |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC 61000-4-2, Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Provides electrostatic discharge protection up to ±15 kV.
- Features a low line capacitance of 0.5 pF per channel.
- Has outstanding system protection with deep snap-back and 0.4 Ω dynamic resistance.
- Suitable for SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, and automotive A/V displays.
- Complies with ISO10605, IEC 61000-4-2 Level 4, and AEC-Q101 automotive standard.
- Compact surface mount package measuring 2.5 × 1 × 0.75 mm.
- Operates reliably between temperatures of -55°C to 150°C.
- Maximum peak pulse current rating of 7 A for robust transient protection.
Product Description
The Nexperia PESD4USB3B-TBSX is a bi-directional electrostatic discharge (ESD) protection device engineered for protecting sensitive high-speed data interfaces such as SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, eSATA, and automotive multimedia interfaces including LVDS and GMSL SerDes. It features a compact 10-pin DFN2510D surface mount package with a length of 2.5 mm, width of 1 mm, and height of 0.75 mm.
This ESD protection device provides exceptional performance with an ESD rating up to ±15 kV according to IEC 61000-4-2 Level 4 standards. The device has a minimum breakdown voltage of 6 V, maximum reverse stand-off voltage of 3.3 V, and a clamping voltage of 5.5 V, ensuring effective suppression of voltage spikes and transients.
With a line capacitance of only 0.5 pF per channel and dynamic resistance of 0.4 Ω, it guarantees minimal signal distortion and excellent signal integrity, ideal for high-speed data transmission lines.
High ESD protection level up to ±15 kV according to IEC and ISO standards. Low line capacitance ensures minimal impact on signal quality. Robust peak pulse current capacity of 7 A for transient protection. Matches 0.5 mm trace spacing and features side-wettable flanks for manufacturing ease.
Designed for automotive applications compliant with AEC-Q101. Wide operating temperature range from -55°C to 150°C for varied environments. Compact surface mount package suitable for space-constrained designs.
This device is widely applicable in industrial, automotive, consumer electronics, and communication systems where protection of high-speed data lines from ESD events is critical. It is particularly suited for infotainment systems, automotive A/V displays, and industrial high-speed data links.
Choosing the Nexperia PESD4USB3B-TBSX ensures reliable protection and compliance with stringent automotive and industrial standards, enhancing system robustness and longevity. Explore the comprehensive range of semiconductor and ESD protection devices on EnvMart to improve your circuit protection solutions.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Nexperia PESD4USB3B-TBSX provides electrostatic discharge protection up to ±15 kV according to IEC 61000-4-2 Level 4 standards.
This model operates reliably between temperatures of -55°C and 150°C.
The clamping voltage (VC) of this device is 5.5 V.
It features a low line capacitance of 0.5 pF per channel, ensuring minimal signal distortion.
The device has a compact surface mount package measuring 2.5 mm in length, 1 mm in width, and 0.75 mm in height.
The maximum peak pulse current rating is 7 A, providing robust transient protection.
It complies with the AEC-Q101 automotive standard, making it suitable for automotive applications.
The minimum breakdown voltage (Vbr) for the PESD4USB3B-TBSX is 6 V.
This unit is suitable for high-speed data interfaces such as SuperSpeed USB 3.2, HDMI 2.0, and automotive multimedia interfaces.
The maximum reverse stand-off voltage (Vwm) is 3.3 V.
It features a surface mount design, specifically in a 10-pin DFN2510D package.
This device complies with ISO10605 and IEC 61000-4-2 Level 4 standards, ensuring high performance in ESD protection.
