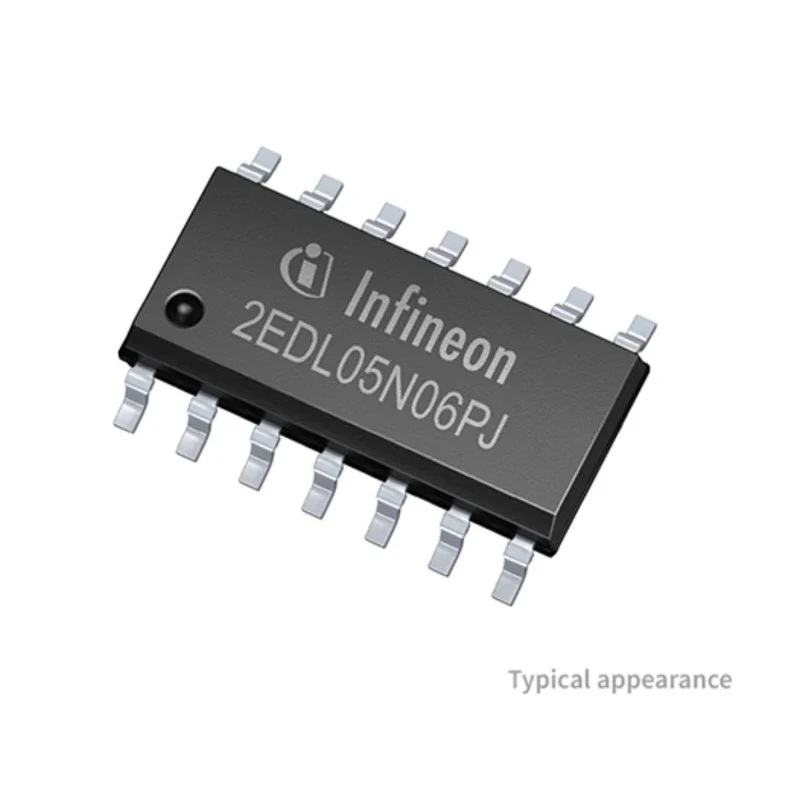

Infineon Gate Driver Module 500 mA 14-Pin 600 V DSO-14 2EDL05N06PJXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Gate Driver Module 500 mA 14-Pin 600 V DSO-14 2EDL05N06PJXUMA1

Name: Infineon Gate Driver Module 500 mA 14-Pin 600 V DSO-14 2EDL05N06PJXUMA1
Brand: Infineon
SKU: 179151
Price: 1.83 USD
Availability: InStock



Category Gate Drivers Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	2EDL05N06PJXUMA1
Output Current	500mA
Maximum Operating Temperature	150°C
Package Type	DSO-14
Minimum Operating Temperature	-40°C
Standards/Approvals	DIN EN 60747-5-2
Pin Count	14
Minimum Supply Voltage	600V
Fall Time	40ns
Driver Type	Gate Driver

Key Features

Designed with Infineon Thin-Film-Silicon on Insulator (SOI) technology for enhanced ruggedness and noise immunity.
Compatible with standard CMOS or LSTTL logic inputs down to 3.3 V.
Features a high pulse current buffer stage to minimize driver cross-conduction.
Includes an integrated bootstrap diode for half-bridge configurations operating up to 600 V.
Equipped with undervoltage lockout for both channels to ensure reliable operation.
Input logic compatibility at 3.3 V, 5 V, and 15 V levels.
Offline clamping function protects against parasitic turn-on during floating gate conditions.
Compliant with DIN EN 60747-5-2 standards and RoHS regulations.

Product Description

Infineon 2EDL05N06PJXUMA1 Gate Driver Module is a high-performance 500 mA gate driver designed for efficient control of power MOSFETs and IGBTs in half-bridge circuits. Utilizing advanced Thin-Film-Silicon on Insulator (SOI) technology, this driver delivers superior ruggedness and noise immunity, essential for demanding industrial, automotive, and power management applications.

The device features a 14-pin DSO-14 package with a floating channel capable of sustaining up to 600 V, making it suitable for high-side drive configurations. It accepts Schmitt trigger logic inputs compatible with CMOS and LSTTL devices down to 3.3 V, enabling flexible interfacing with modern digital control systems.

In-built features such as an integrated bootstrap diode facilitate efficient bootstrap operation, while the high pulse current buffer stage minimizes driver cross-conduction, enhancing switching performance. The undervoltage lockout protects both driver channels from malfunction due to low supply voltage conditions.

Temperature tolerance ranges from -40°C to 150°C, ensuring reliable performance across harsh environments. The device complies with DIN EN 60747-5-2 standards and is RoHS compliant, aligning with current environmental and quality regulations.

Typical applications include industrial motor drives, power conversion, and automotive electronics, where precise gate driving and robustness are critical for system reliability and efficiency.

Advanced Thin-Film-SOI technology ensures ruggedness and noise immunity. Supports high voltage operation up to 600 V with integrated bootstrap diode. Undervoltage lockout function enhances operational safety. Compatible with input logic voltages of 3.3 V, 5 V, and 15 V.

Wide operating temperature range from -40°C to 150°C. Dynamically protects against parasitic turn-on via offline clamping. Compact 14-pin DSO-14 package for easy integration. Complies with DIN EN 60747-5-2 and RoHS standards.

For users seeking robust, efficient gate driver solutions for power management and semiconductor circuits, the Infineon 2EDL05N06PJXUMA1 offers a reliable choice. Explore EnvMart's extensive range of semiconductor components and power management ICs to complement your industrial and electronic designs.

Explore more products in our Gate Drivers category.
