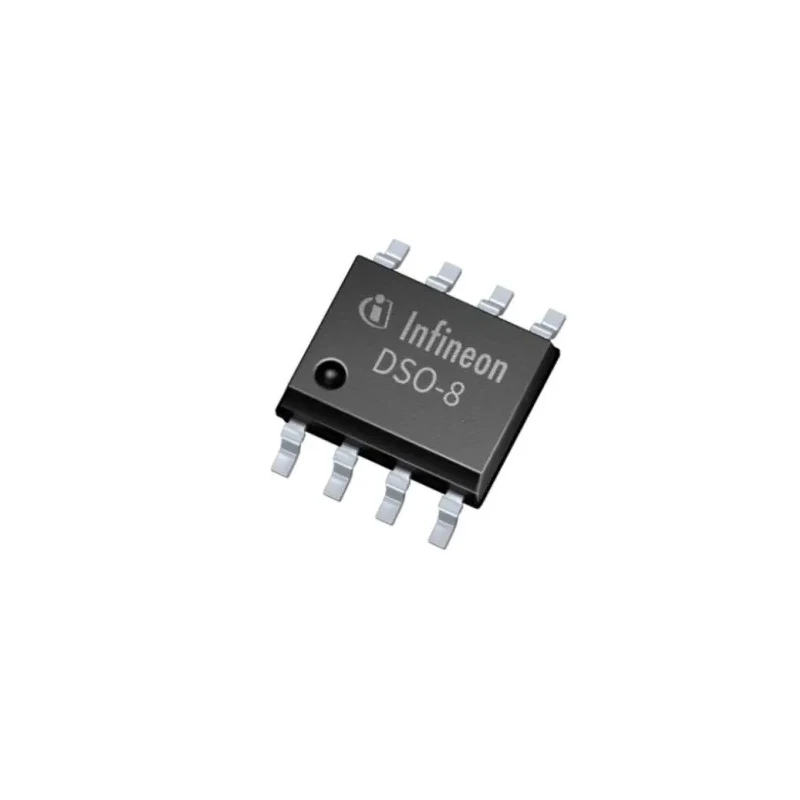

Infineon General Purpose Gate Driver 8-Pin DSO Package 20V, 290 mA Output Current 2ED2101S06FXUMA1

Infineon 2ED2101S06FXUMA1 is a general purpose gate driver optimized for driving high voltage power MOSFETs and IGBTs with independent high and low side referenced output channels. It delivers a robust output current of 290 mA ensuring excellent switching performance in industrial and automotive electronics.

This device supports a wide supply voltage operation from 10 V minimum to 20 V maximum, making it versatile for various power management applications. With fast rise and fall times of 170 ns and 35 ns respectively, it enables efficient switching with minimal delay.

Designed for rugged operation, the driver features superior noise immunity and stability, capable of maintaining logical operation even at negative voltages. The integrated ultra-fast, low resistance bootstrap diode facilitates bootstrap operation improving the driving efficiency.

This gate driver meets the stringent automotive grade AEC-Q100 standard and JEDEC approvals (JEDEC47/20/22), making it suitable for demanding automotive environments. It operates reliably over a temperature range from -40°C to 150°C, ensuring durability in harsh conditions.

Its compact 8-pin DSO package enables easy mounting on standard boards, facilitating integration into a wide range of industrial and automotive electronics systems. Typical applications include industrial motor drives, power conversion, and automotive power electronics.

Delivers a high output current of 290 mA suitable for driving MOSFET and IGBT power devices. Operates reliably over a wide supply voltage range from 10 V to 20 V. Features fast switching times with rise time of 170 ns and fall time of 35 ns.

Designed with independent high and low side referenced outputs to enhance ruggedness and noise immunity. Incorporates integrated ultra-fast low resistance bootstrap diode for efficient drive performance. Meets automotive standard AEC-Q100 ensuring suitability for automotive electronic applications.

Capable of functioning at extreme temperatures, from -40°C to 150°C. Compact 8-pin DSO package allows easy PCB board mounting. Complies with JEDEC standards (JEDEC47/20/22) for quality and reliability. Discover more products in the Gate Drivers category at EnvMart for your industrial, laboratory, and automotive electronics needs.
