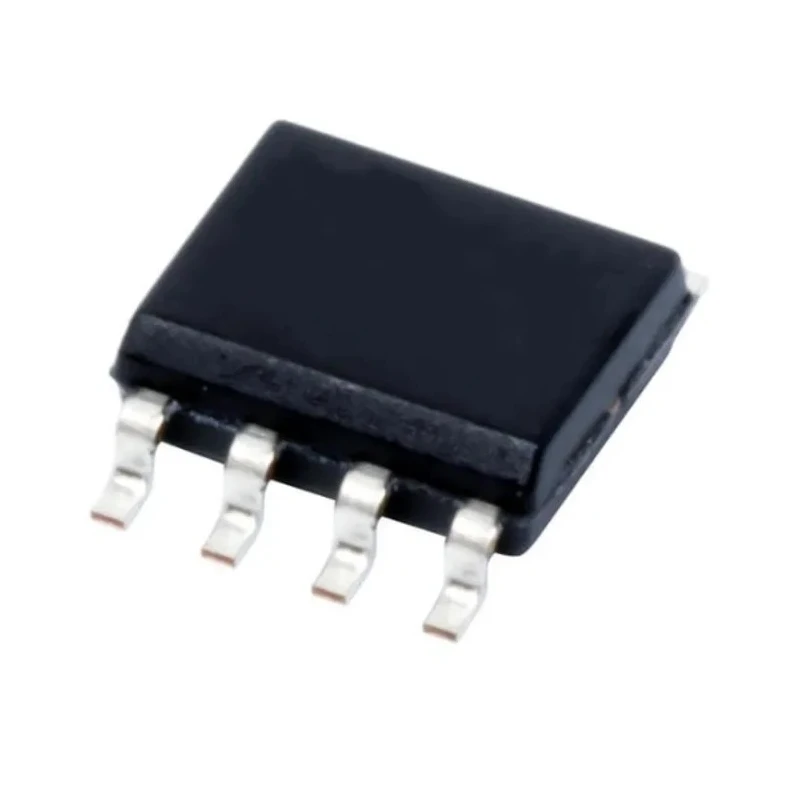

onsemi IGBT Module 6.5 A 8-Pin 22 V SOIC Surface Mount AEC-Q100 NCD57090CDWR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 5mm |
| Model | NCD57090CDWR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCD57090 |
| Output Current | 6.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 13ns |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 22V |
| Fall Time | 13ns |
| Driver Type | IGBT |
Key Features
- High transient immunity with 5 kVrms internal galvanic isolation.
- Fast switching with 13 ns rise and fall times.
- Operating voltage at 22 V for efficient power management.
- Wide operating temperature range from -40°C to 125°C.
- Compact SOIC surface mount package with 5 mm x 4 mm footprint.
- Automotive standard AEC-Q100 qualified for enhanced reliability.
- Features complementary input and configurable driver outputs.
- Suitable for industrial and automotive gate driving applications.
Product Description
onsemi NCD57090CDWR2G is a high-current single channel IGBT driver module engineered for efficient and reliable power management in industrial, automotive, and commercial semiconductor applications. It features an 8-pin SOIC surface mount package with a compact footprint of 5 mm length, 4 mm width, and 1.75 mm height, allowing easy integration into PCBs where space constraints exist.
This driver module supports a sustained output current of 6.5 A with fast switching capabilities characterized by 13 ns rise and fall times, significantly reducing switching losses and improving system efficiency. Its internal galvanic isolation rated at 5 kVrms assures high transient and electromagnetic immunity, making it suitable for use in noisy industrial environments.
The device operates at a fixed supply voltage of 22 V and meets the automotive standard AEC-Q100, assuring compliance with stringent quality and reliability requirements for automotive electronics. Its wide operating temperature range from -40°C to 125°C enables reliable operation in extreme temperature conditions often encountered in automotive and industrial settings.
Additional features such as complementary input configuration, active miller clamp, and options for negative power supply and separate high/low driver outputs provide system designers with flexible application options and enhance the device's versatility across power management systems.
This IGBT driver module is ideally suited for applications in industrial motor drives, power inverters, automation controls, and automotive power electronics where precise and robust gate control is critical. Its high transient immunity and automotive-grade reliability support demanding environments and functionality.
High transient immunity with 5 kVrms internal galvanic isolation. Fast switching times of 13 ns rise and fall. Compact SOIC package for surface mount applications. Wide temperature range from -40°C to 125°C. Automotive qualified to AEC-Q100 standards.
Supports 6.5 A output current for robust gate driving. Complementary input and configurable driver outputs. Suitable for industrial and automotive power systems. Explore more semiconductor and power management ICs in the onsemi category on EnvMart for varied power control solutions.
Explore more products in our Gate Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a sustained output current of 6.5 A, making it suitable for robust gate driving applications.
The device operates within a wide temperature range from -40°C to 125°C, allowing reliable performance in extreme conditions.
It features fast switching capabilities with rise and fall times of 13 ns, which helps reduce switching losses.
The NCD57090CDWR2G is housed in an 8-pin SOIC surface mount package with dimensions of 5 mm in length, 4 mm in width, and 1.75 mm in height.
Yes, it meets the automotive standard AEC-Q100, ensuring compliance with stringent quality and reliability requirements for automotive electronics.
It features internal galvanic isolation rated at 5 kVrms, providing high transient and electromagnetic immunity.
This model has a total of 5 outputs, allowing for flexible application options.
The minimum supply voltage required for operation is 22 V, which is fixed for this module.
The NCD57090CDWR2G is manufactured in India, reflecting its global supply chain.
This module belongs to the NCD57090 series, which is designed for efficient power management.
