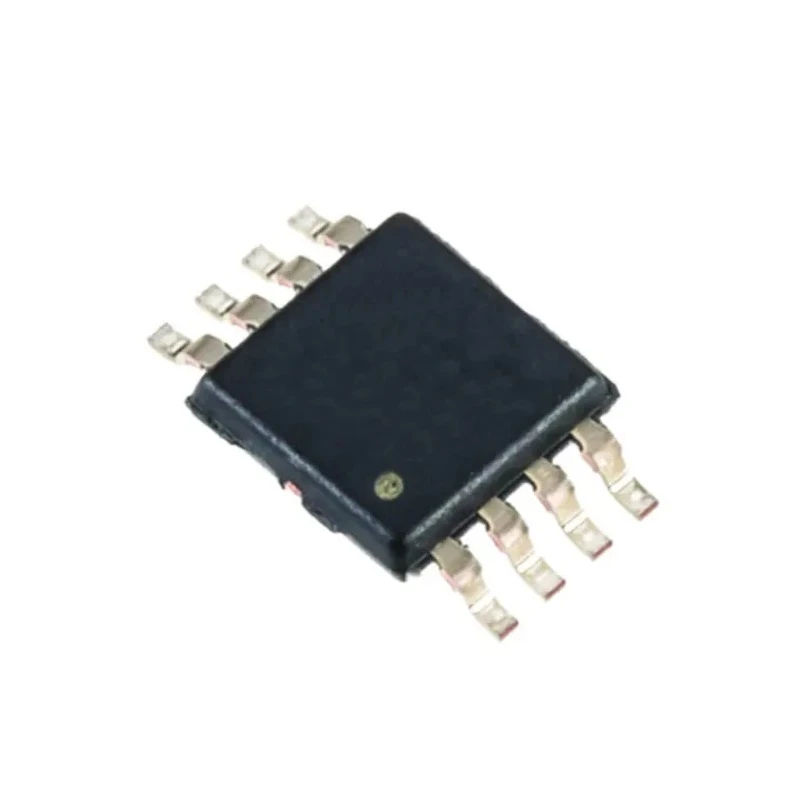

Texas Instruments Voltage Level Shifter Bi-Directional 8-Pin VSSOP TXB0102DCUT

The Texas Instruments TXB0102DCUT is a high-performance voltage level shifter designed for bi-directional voltage translation between various logic voltage levels. Housed in a compact 8-pin VSSOP surface mount package, it offers two elements per chip, enabling dual translation channels in a single device.

Operating over a wide voltage range from 1.2V to 5.5V, this voltage translator supports a maximum propagation delay time of 12.9ns, ensuring rapid signal shifting crucial for high-speed electronic designs. Its 3-state output type enhances signal control capabilities making it suitable for complex logic interfacing.

The device's operating temperature range of -40°C to 85°C makes it reliable for industrial and commercial applications within harsh environments. The small physical dimensions, with a length of 2.3mm and a height of 850μm, allow space-saving on circuit boards beneficial in compact electronic devices.

This voltage level shifter is ideally used in electronic circuits requiring level shifting between different voltage domains, including microcontrollers, communication buses, and various logic ICs. It lacks automotive standard certification, indicating its general usage outside of strict automotive design constraints.

Bi-directional direction type suitable for various translation needs. Translator logic family for versatile voltage level shifting. Maximum propagation delay time of 12.9ns ensuring fast signal response. Surface mount type with 8-pin VSSOP package for compact PCB layouts.

Two elements per chip providing dual translation channels. 3-state output type for enhanced signal control. Wide supply voltage range from 1.2V minimum to 5.5V maximum. Operating temperature range from -40°C to 85°C supports industrial applications.

Small physical size with length of 2.3mm and height of 850μm. Designed without automotive standards, focused on general electronics applications. Explore more Voltage Level Shifters and electronic components at EnvMart for industrial, laboratory, and manufacturing applications.
