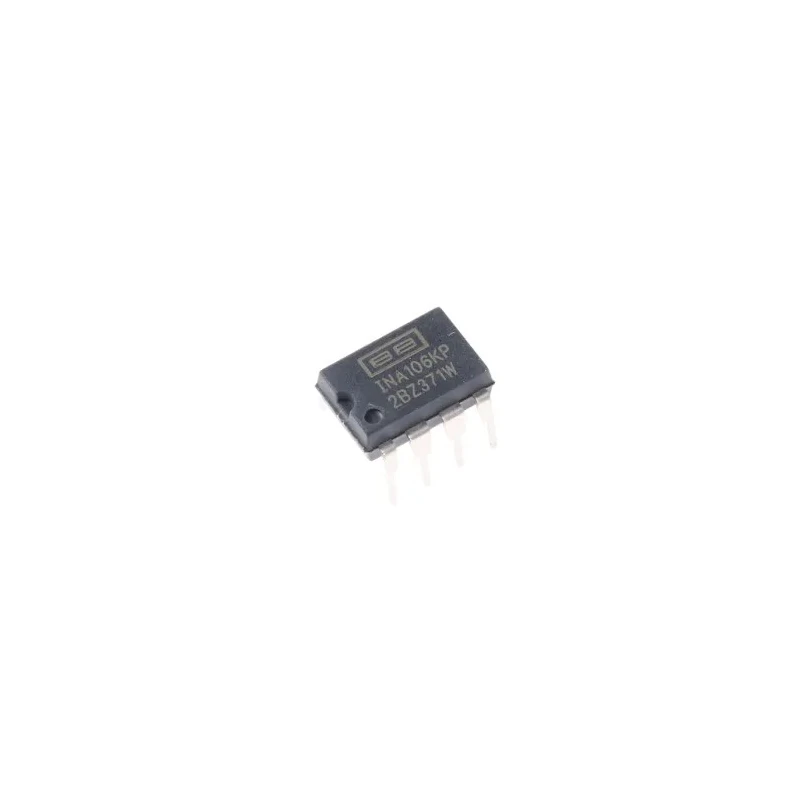

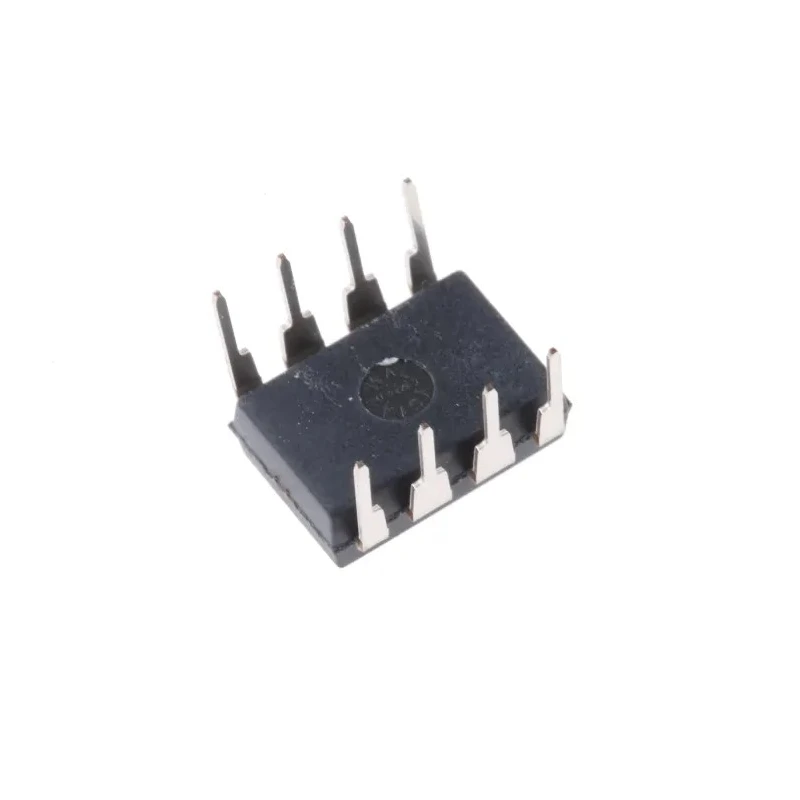

Texas Instruments Differential Amplifier 5 MHz 8-Pin PDIP INA106KP

Texas Instruments INA106KP is a differential amplifier designed for high precision in amplifying differential input signals while suppressing common-mode noise. Featuring an 8-pin PDIP package, it operates with a supply voltage range from 5 V to 18 V and a gain bandwidth product of 5 MHz, making it suitable for high-frequency and precision instrumentation applications.

This amplifier ensures excellent performance with a low input offset voltage of 0.5 mV and a high common-mode rejection ratio (CMRR) of 86 dB, which minimizes noise and interference in electrically noisy environments. Its slew rate of 3 V/μs allows fast transient response for dynamic signals.

The device operates reliably over a wide temperature range of -40°C to 85°C and features a low supply current of only 2 mA, enhancing energy efficiency in circuit designs. The through-hole mounting and PDIP packaging support straightforward assembly in various electronic systems.

Differential amplifiers like the INA106KP are integral to test and measurement instrumentation, industrial control systems, and medical instrumentation where accurate amplification of the difference between two input signals is essential.

Maximum supply voltage: 18 V. Input offset voltage: 0.5 mV. Gain bandwidth product: 5 MHz. Slew rate: 3 V/μs. Operating temperature range: -40°C to 85°C. Common mode rejection ratio: 86 dB. Supply current: 2 mA. Package type: 8-pin PDIP.

Mount type: Through hole.

This product conforms to RoHS standards, ensuring compliance with environmental regulations. With its precise characteristics and robust design, the INA106KP amplifier is widely deployed in industrial, laboratory, instrumentation, and commercial electronic applications.
